In the second part of this two part series I will be showing you how you can enrol a device within Intune in ConfigMgr.

Part One ‘Implementing Intune integration into ConfigMgr 2012 R2 in a Lab Environment’ is available to view here.

Setting up an iOS Device

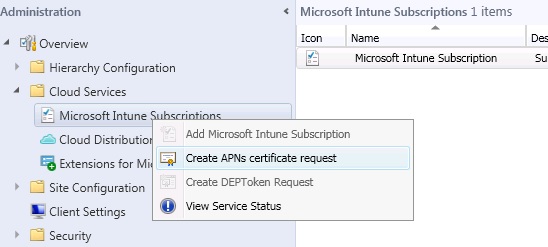

To manage Apple iOS devices an APN (Apple Push Notification) certificate is required. To make a request for the certificate you need to open up the ConfigMgr console and navigate to the Administration workspace and select Cloud Services>Microsoft Intune Subscriptions. Right click and choose ‘Create APN certificate request’.

ManDev-001

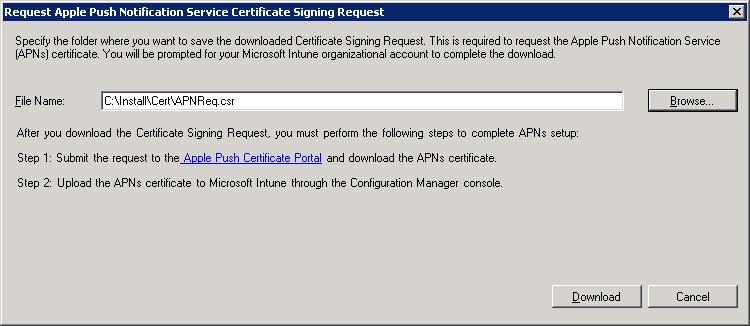

Choose a location to save the certificate request to and click Download.

ManDev-002

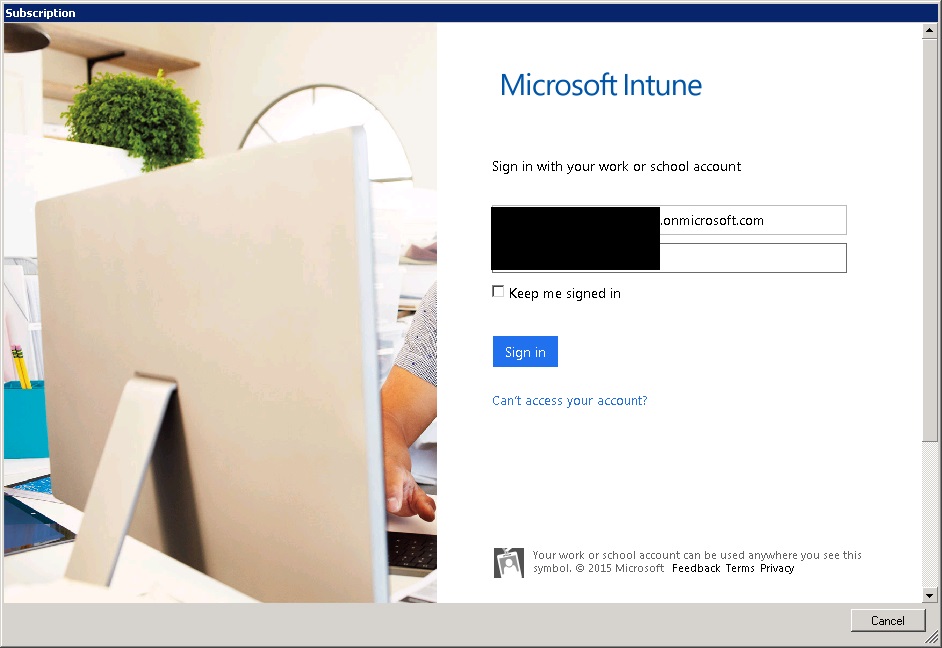

Sign into the Intune portal with your onmicrosoft.com administrative account.

ManDev-003

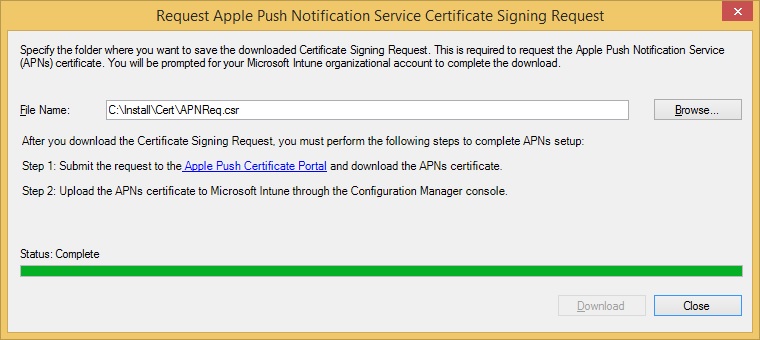

Once the request has been made click Close.

ManDev-004

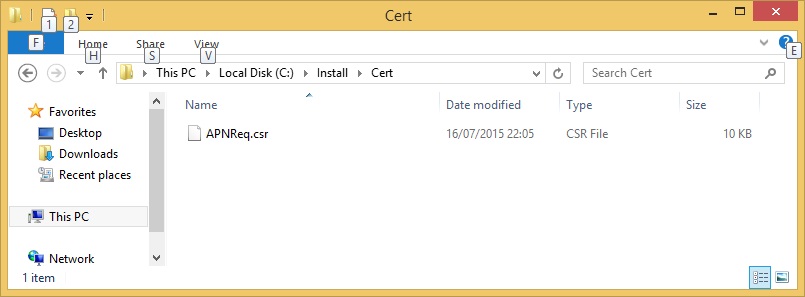

The certificate will reside in your download location.

ManDev-005

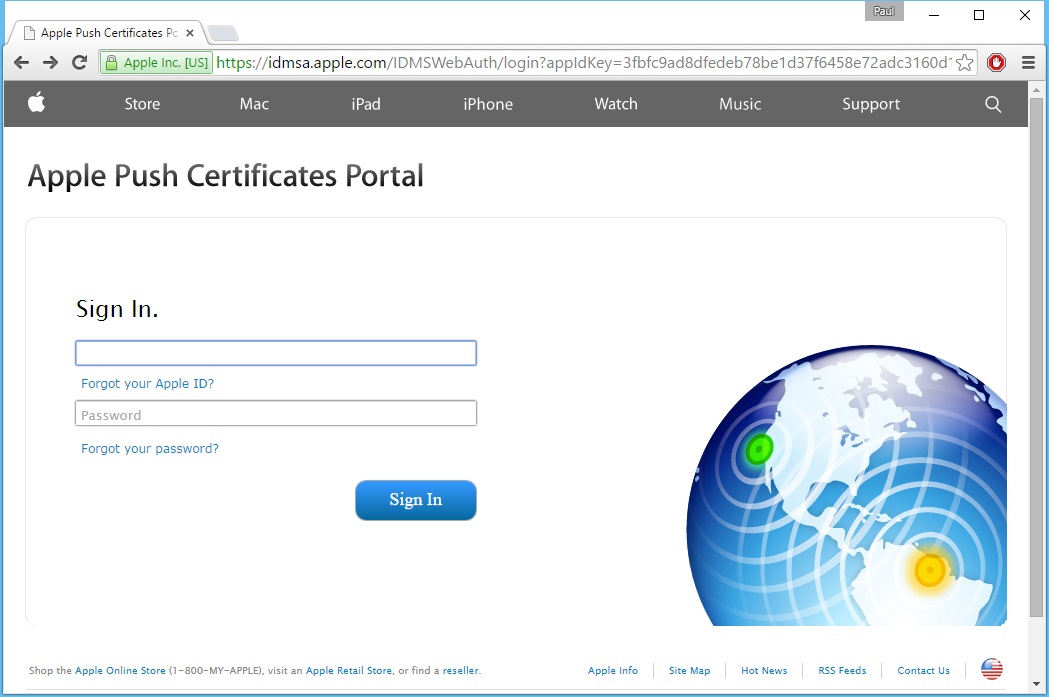

Connect to the Apple Push Notification Portal at https://idmsa.apple.com/IDMSWebAuth/login?appIdKey=3fbfc9ad8dfedeb78be1d37f6458e72adc3160d1ad5b323a9e5c5eb2f8e7e3e2&rv=2. Note that it is recommend that you do not use Internet Explorer to do this as there are issues downloading the .pem file. I have tested this on Microsoft Edge and the site does not load properly once logged in. Therefore I am using Google Chrome.

Enter your Apple ID login details. You must create an Apple ID if you do not have one.

ManDev-006

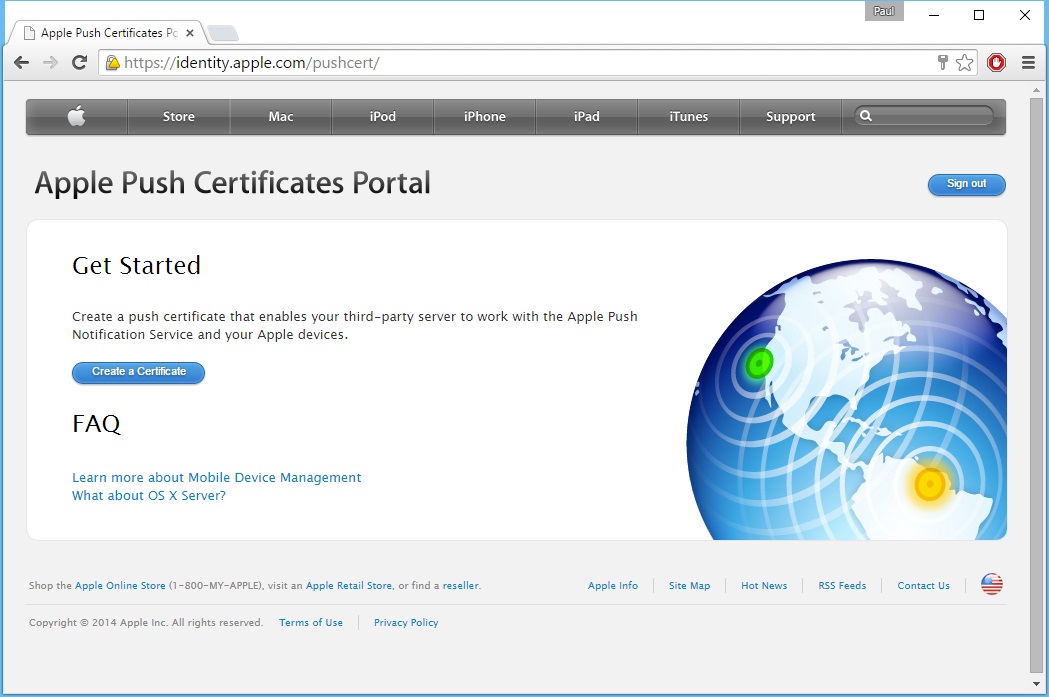

Click Create a Certificate

ManDev-007

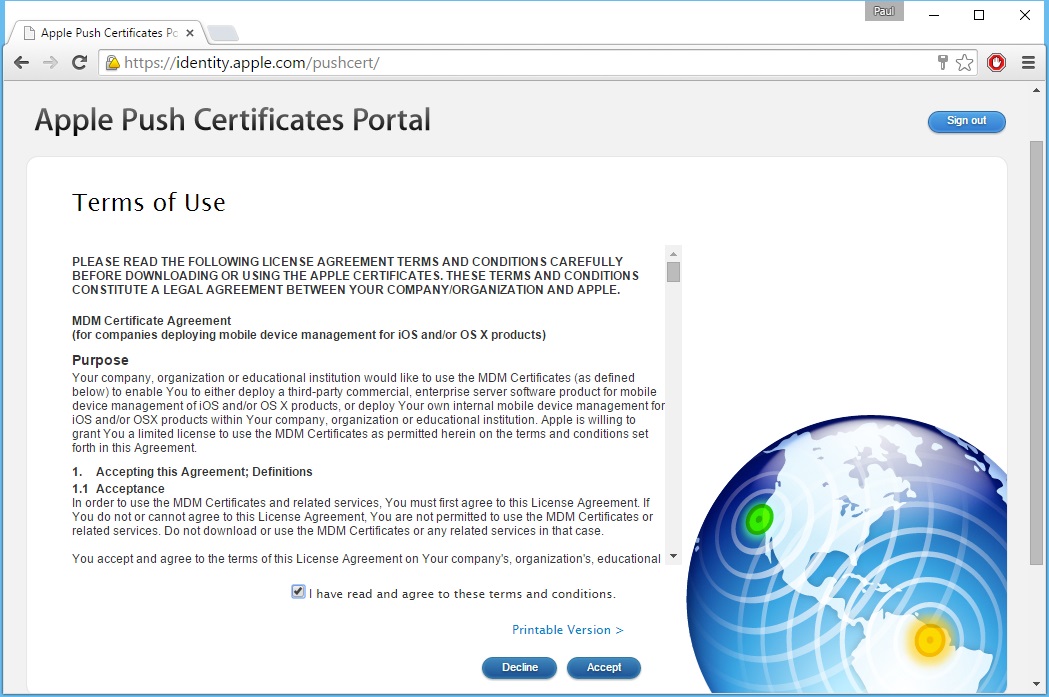

Accept the T’s & C’s

ManDev-008

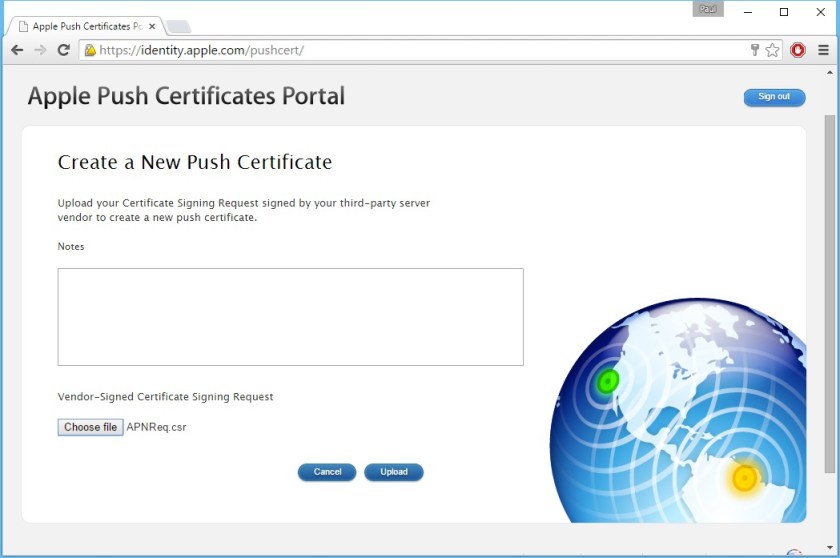

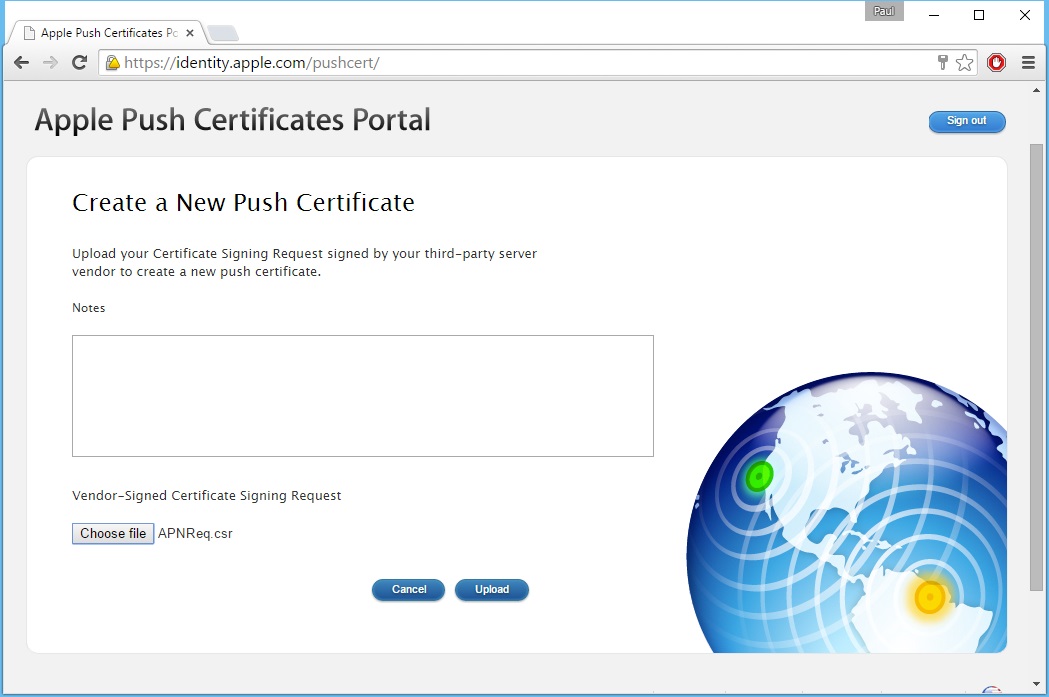

Click ‘Choose file’ and upload the generated request file.

ManDev-009

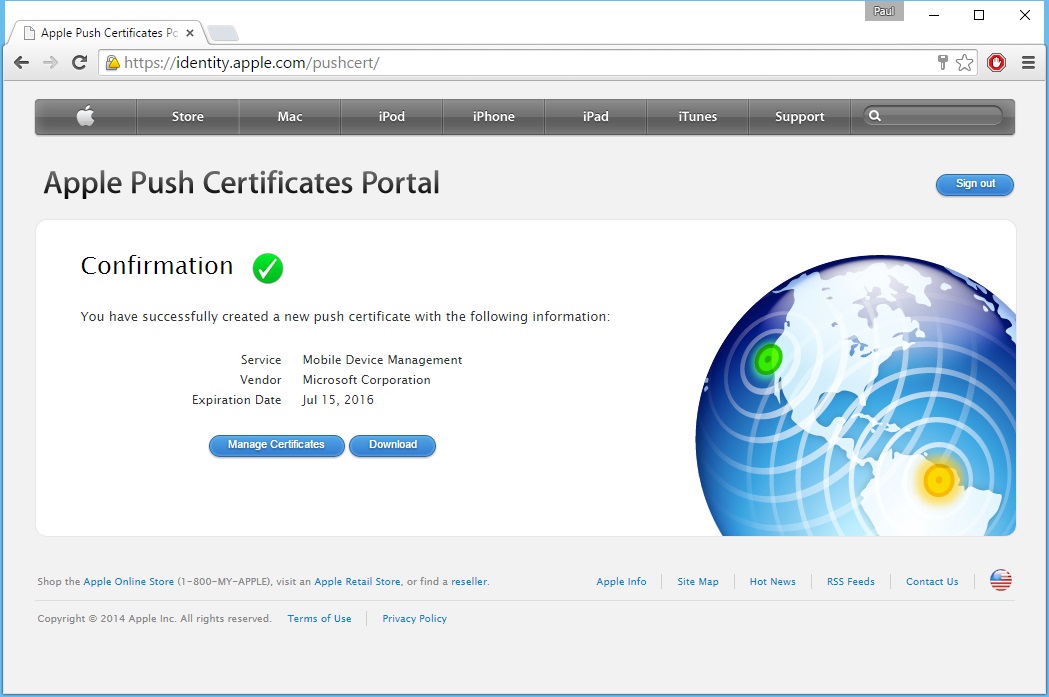

This will create a certificate that is valid for one year. Click Download.

ManDev-011

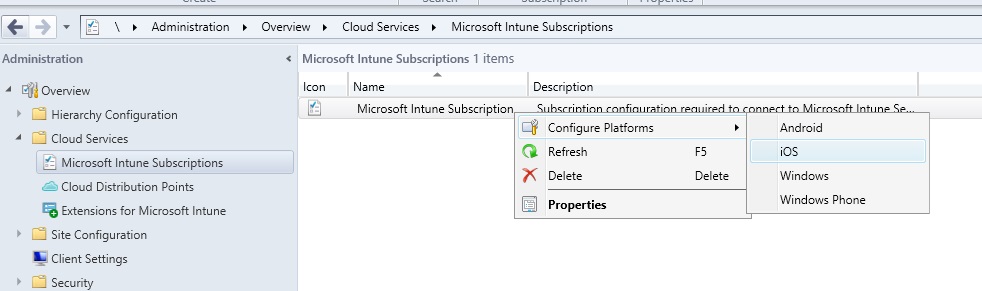

In the ConfigMgr console return to the Administration workspace. Go to Cloud Services>Microsoft Intune Subscriptions. Right click Microsoft Intune Subscription and select Configure Platforms>iOS

ManDev-012

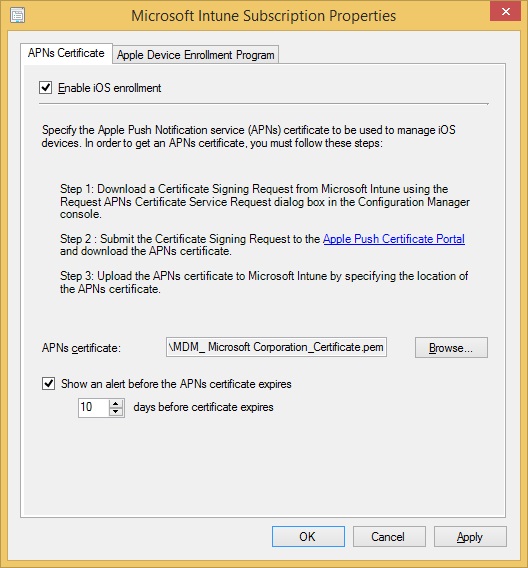

Enable iOS enrollment and browse to select the .pem file. I’ve also ticked to be alerted 10 days before the expiration of the certificate. Click Ok. (Note there is a bug with ConfigMgr 2012 R2 SP1 and the alert check box – if using this version do not tick the box)

ManDev-013

When checking the APN certificate again in the properties note that you will get the following displayed.

ManDev-014

Now that enrolment is configured devices can be enrolled.

Enrol an iOS device

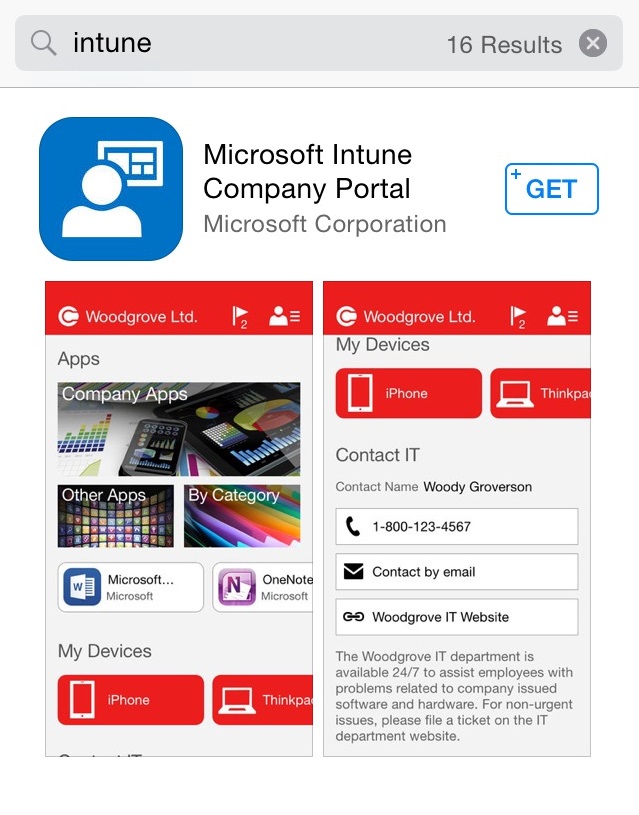

On an iOS device go to the App Store and search for intune. Get the Microsoft Intune Company Portal app.

ManDev-015

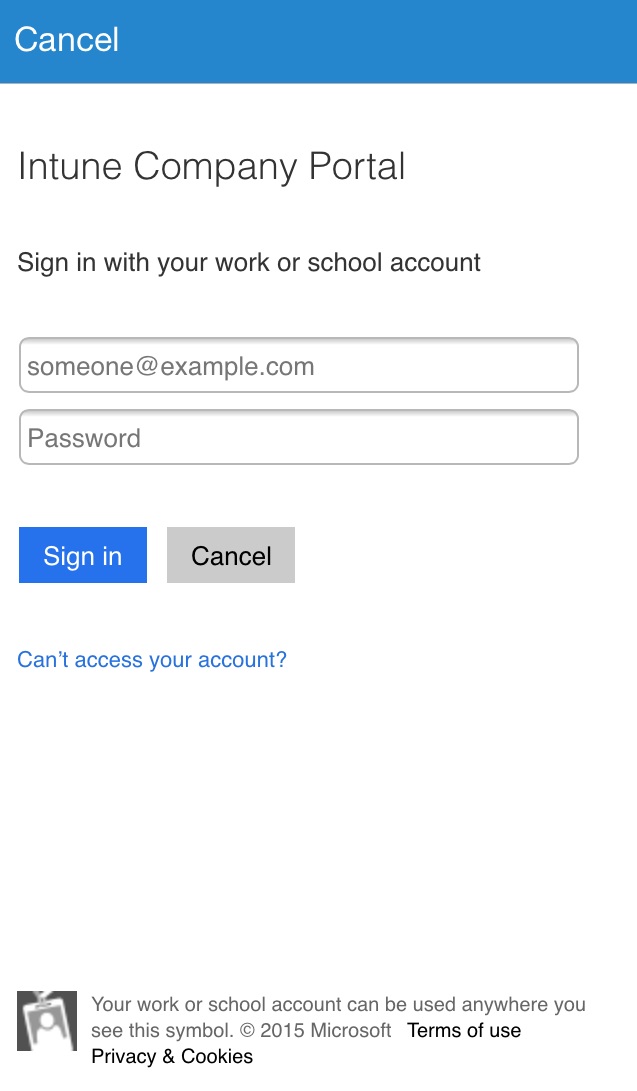

Once loaded enter a UPN address/password of a synced Intune account

ManDev-016

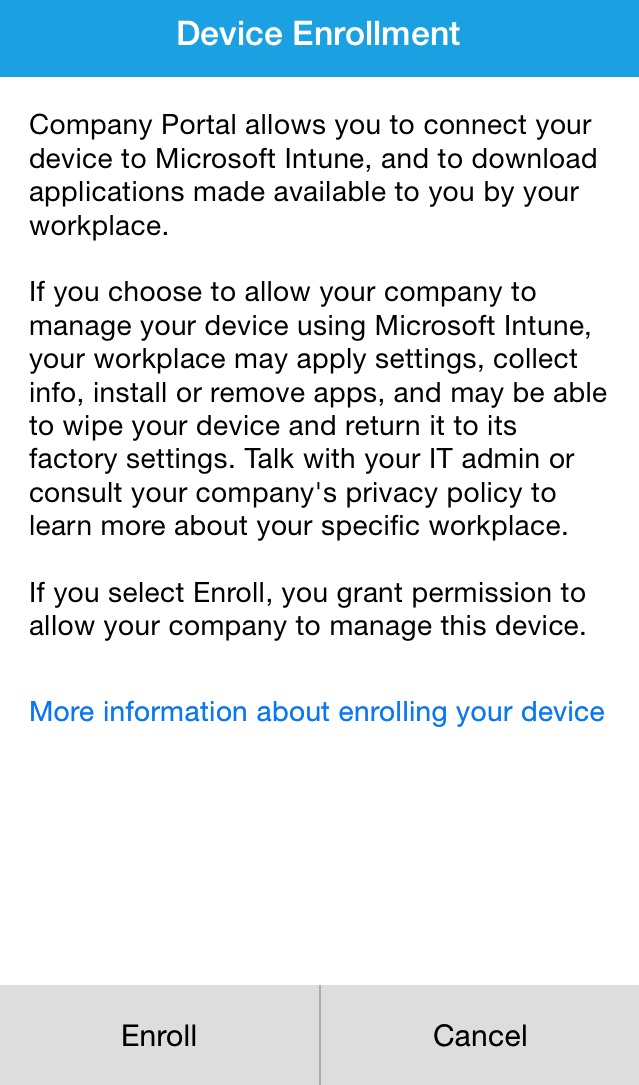

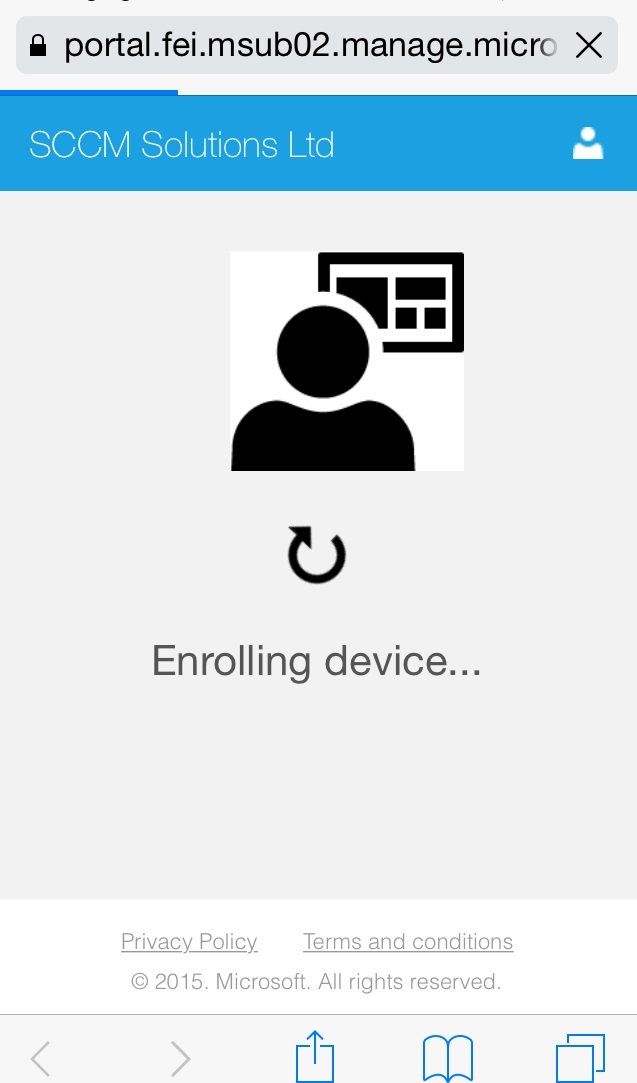

When prompted enroll the device.

ManDev-023

ManDev-024

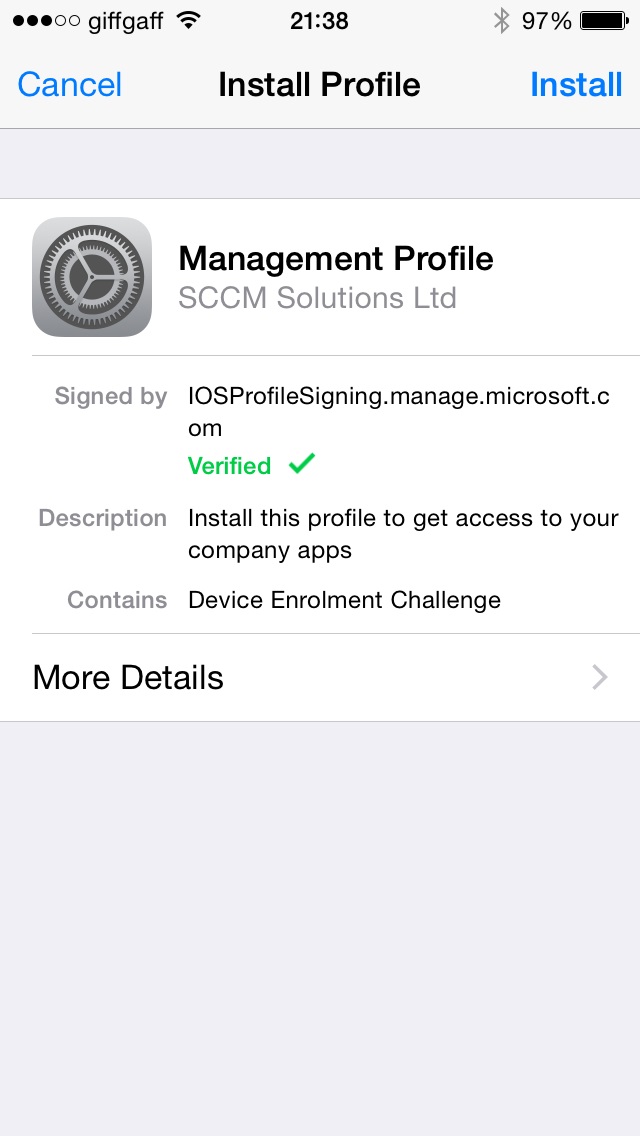

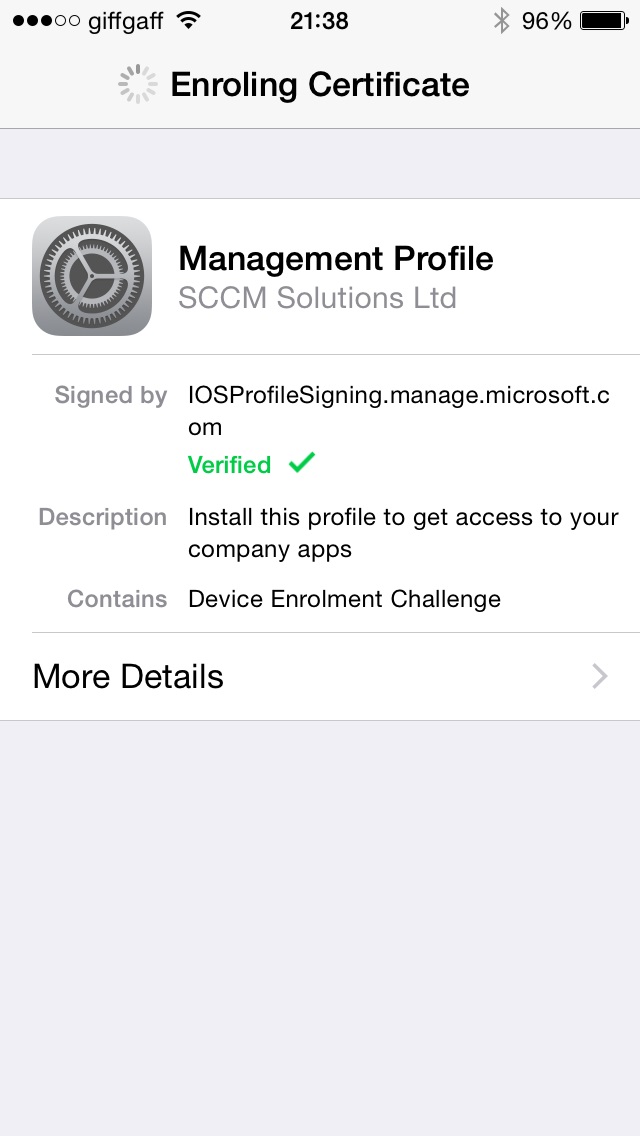

To install the profile click Install.

ManDev-025

ManDev-026

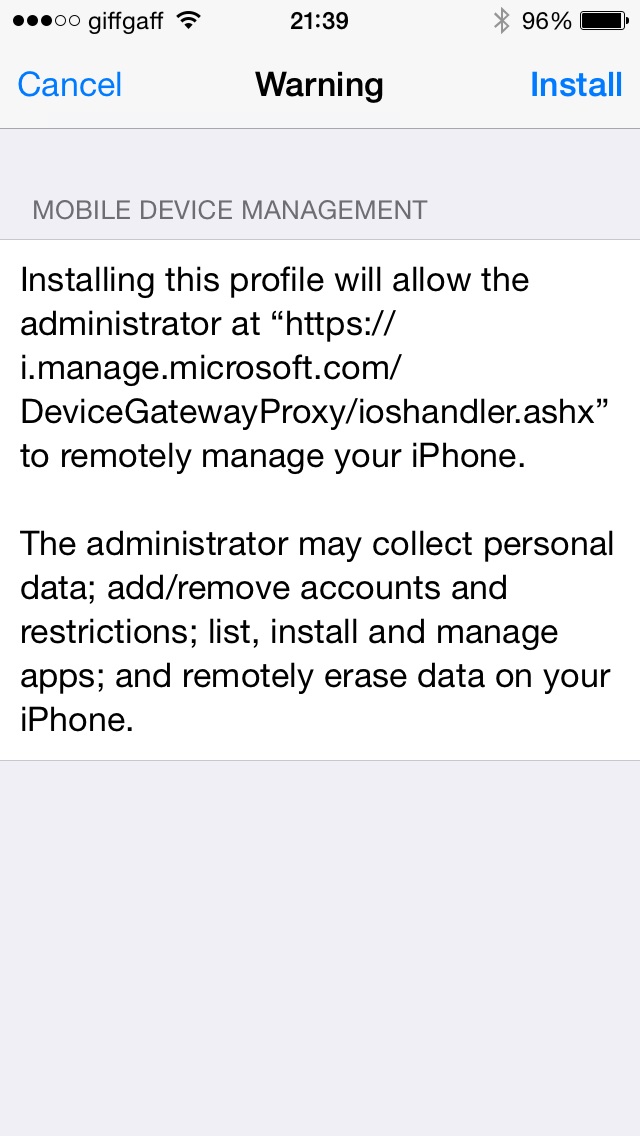

Confirm the install of the profile by selecting Install

ManDev-027

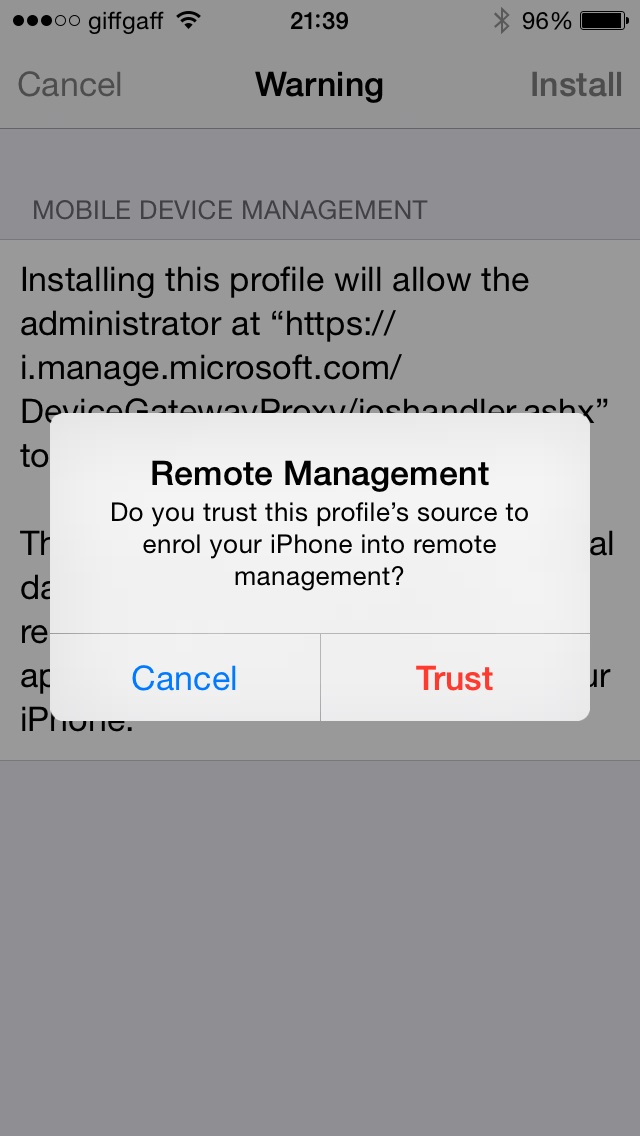

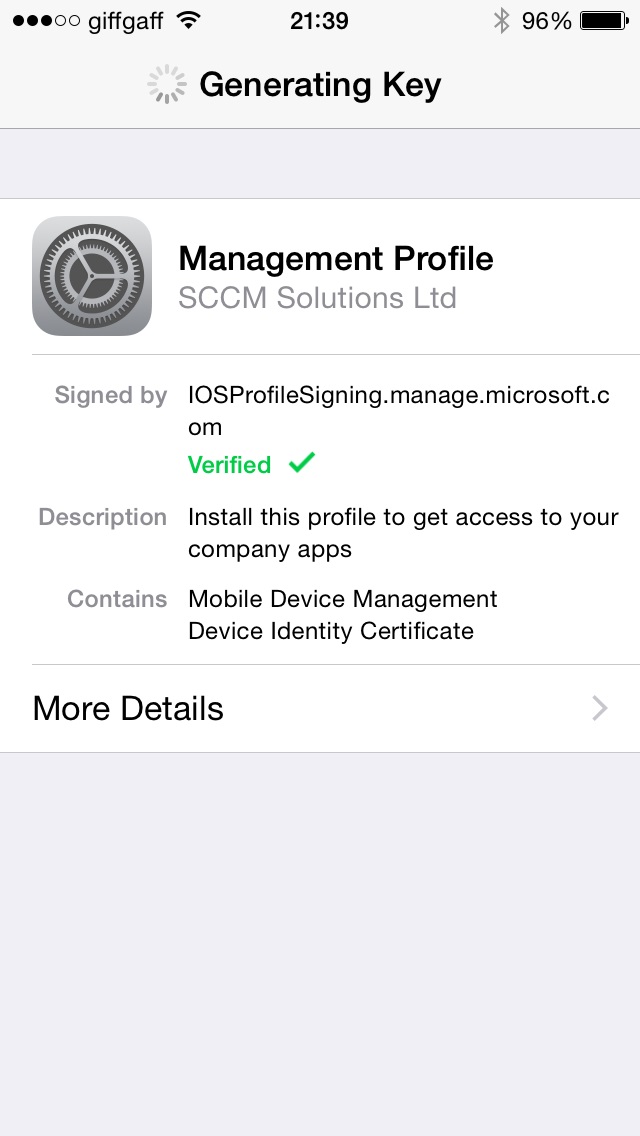

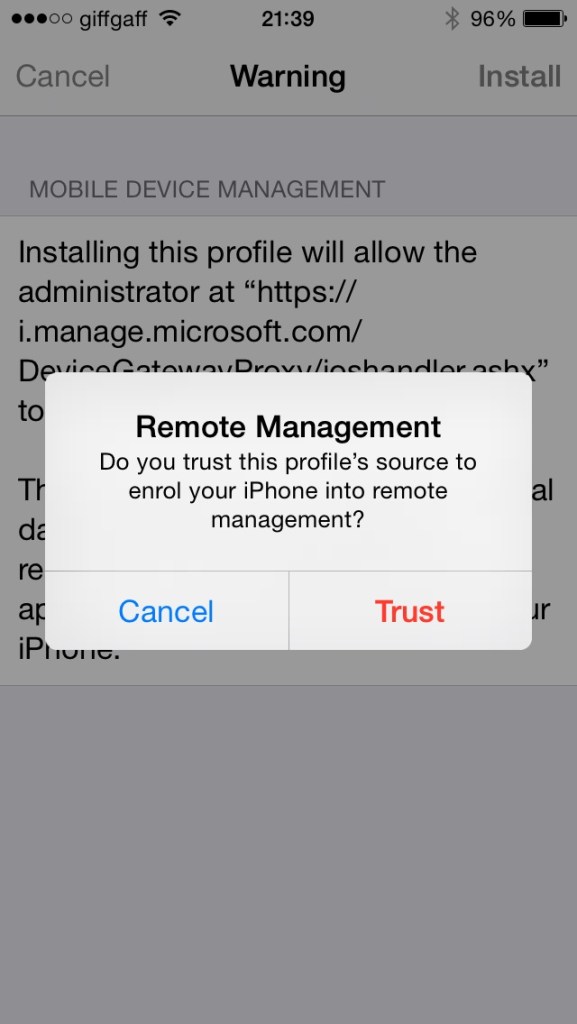

Trust the Remote Management prompt

ManDev-028

ManDev-029

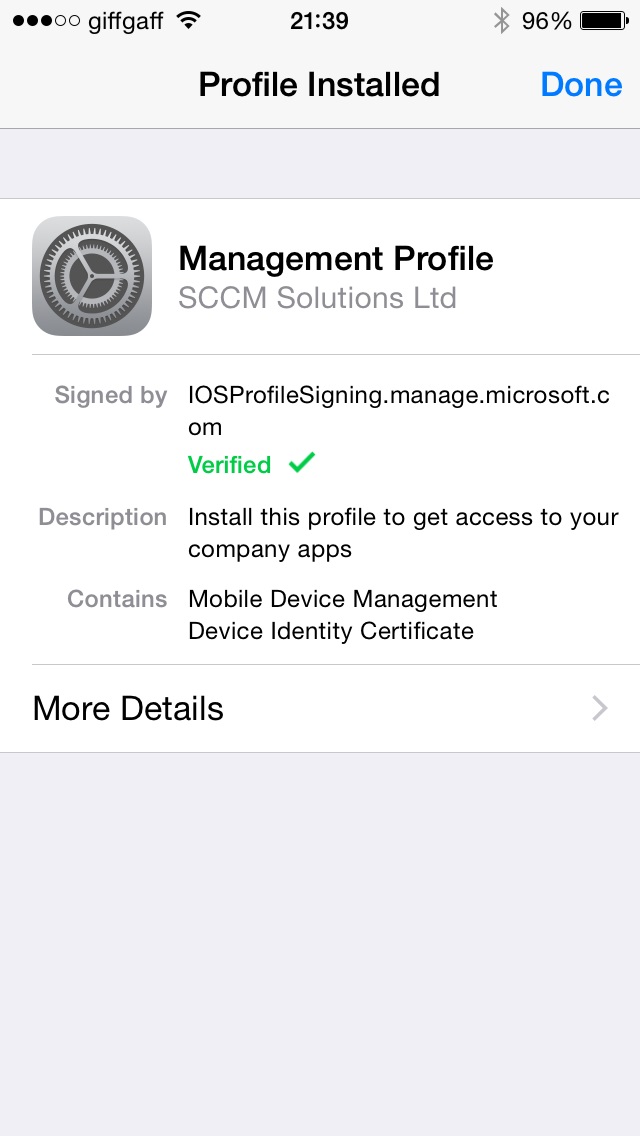

When the profile is installed click Done

ManDev-030

To complete the enrolment process select Done

ManDev-031

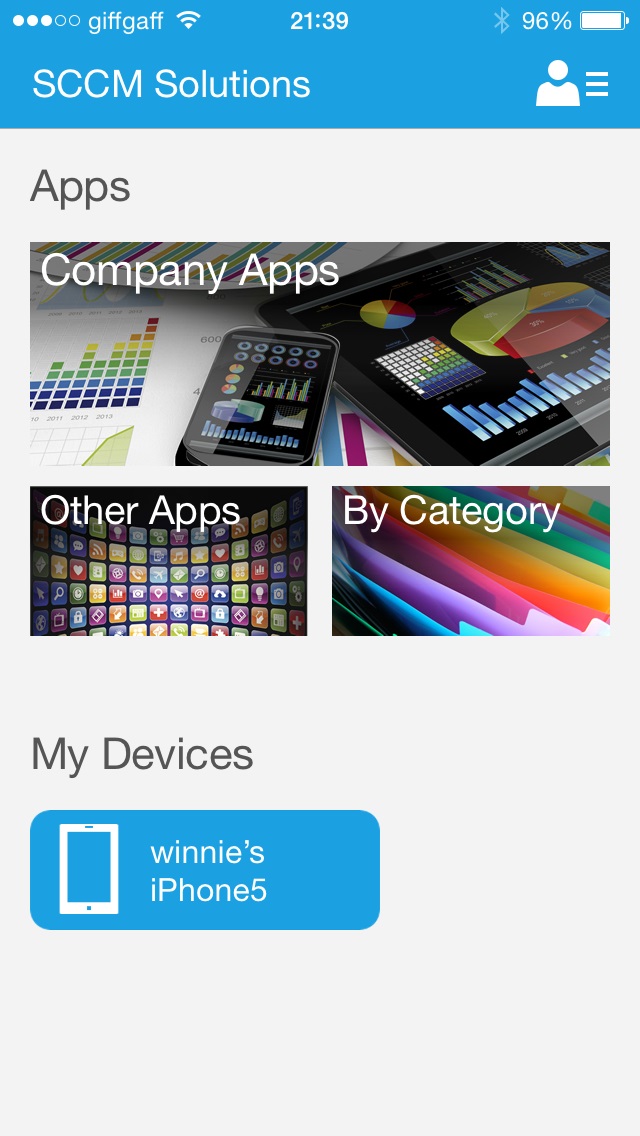

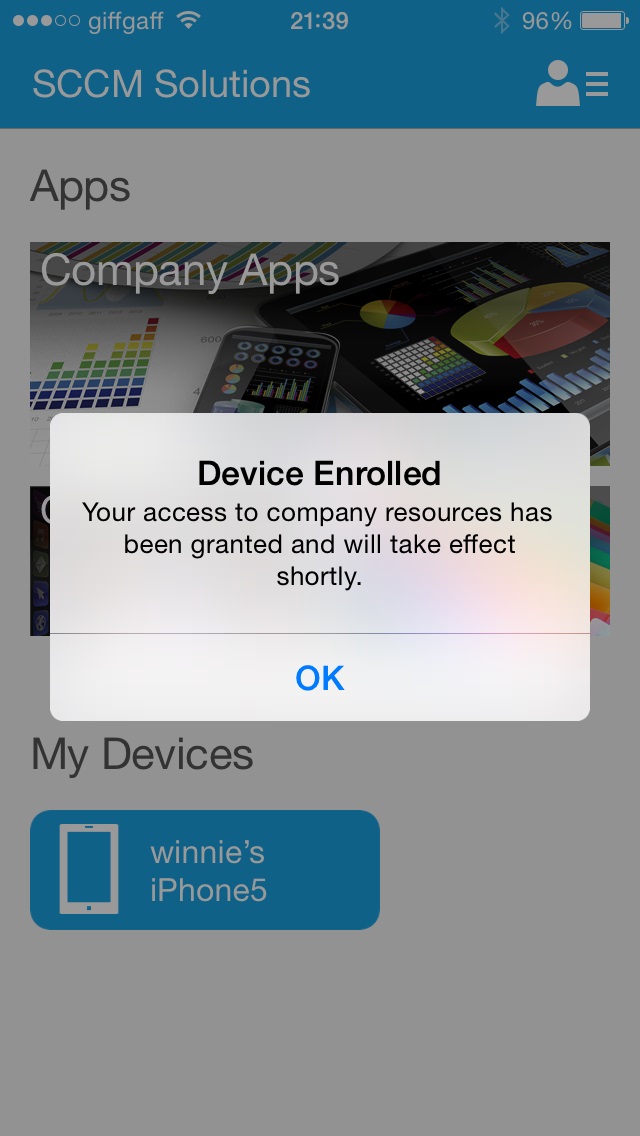

The device is now enrolled successfully

ManDev-032

The device is also listed in the ConfigMgr console in the Devices node

ManDev-033
