SCCM 2012 R2 was released back in November and with CU1 released recently – adding App-V 5.0 SP2 support alongside other improvements – then it’s time for an in-place upgrade.

Note that I am undertaking an upgrade to CU1 level, this addresses issues to do with OSD/PXE. Unfortunately in my test environment I don’t have this functionality available to me so ensure things have run smoothly in the OSD workspace. I’ll be updating the blog entry once I roll this update into a live environment to confirm all is well. All I can say is that in the lab everything ran smoothly with no concerns – fingers crossed for go live!

SCCM 2012 SP1 to R2 in-place upgrade is support by Microsoft. If you are running RTM then upgrade to SP1 prior to attempting this.

So to start off – check your current environment, make sure nothing is broken, try and fix any errors, back up the database, server, VM, basically whatever needs to be done to ensure you can recover should this all go horribly wrong.

Before you start the upgrade give the server a reboot to clear any pending restarts that are required.

If you are running in a ConfigMgr hierarchy start at the top level. This upgrade is being run on a single server primary.

Remove ADK8

Uninstall ADK 8 from the server

SP12R201

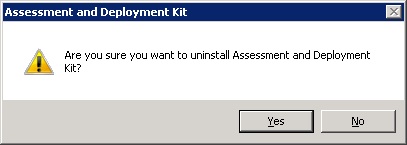

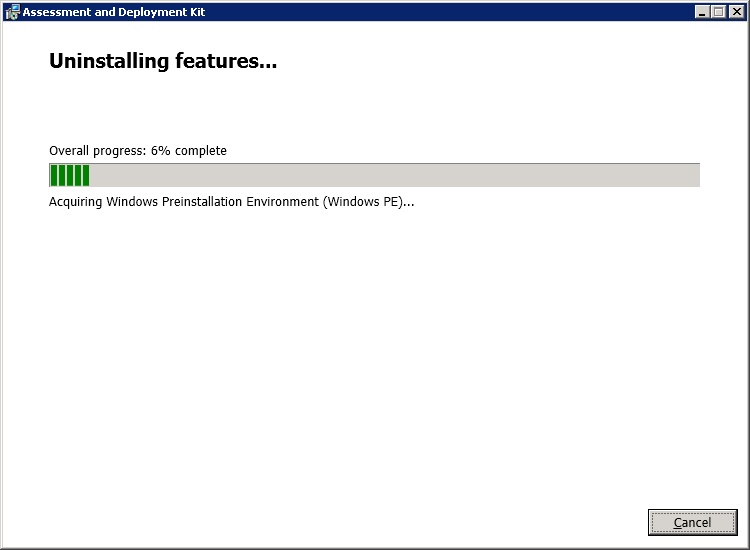

Click Yes to uninstall

SP12R202



SP12R203

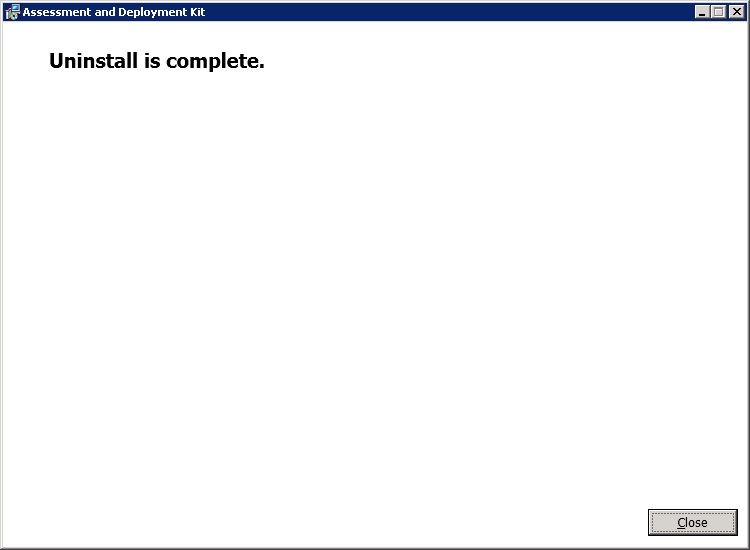

Click Close to complete the uninstall.

SP12R204

Install ADK 8.1

Download ADK 8.1 from http://www.microsoft.com/en-gb/download/details.aspx?id=39982

Run the adksetup.exe file.

Accept the licence agreement and click Accept & Install to install .Net Framework 4.5 (note this will only occur if 4.5 is not installed on the server).

SP12R205

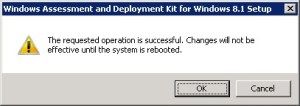

Reboot when prompted.

SP12R206

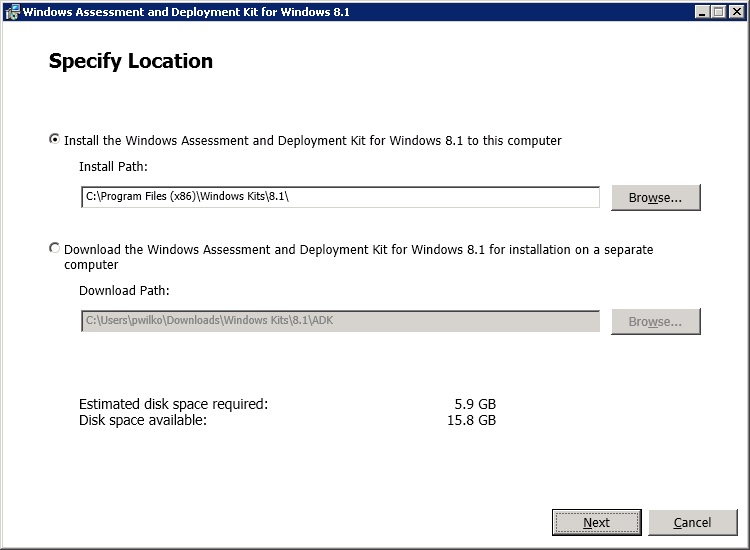

Accept the default download location for the ADK content.

SP12R207

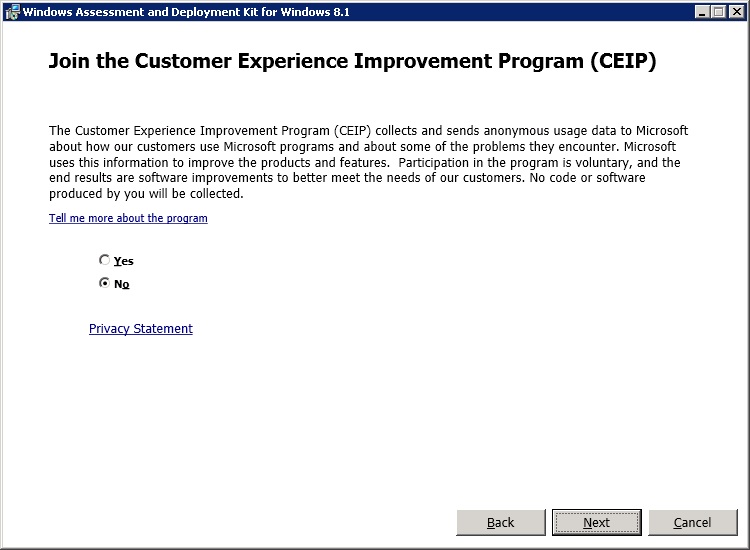

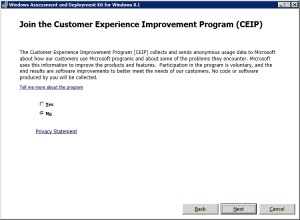

Decide whether to join the CEIP and click Next.

SP12R208

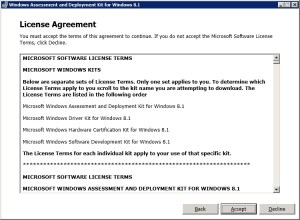

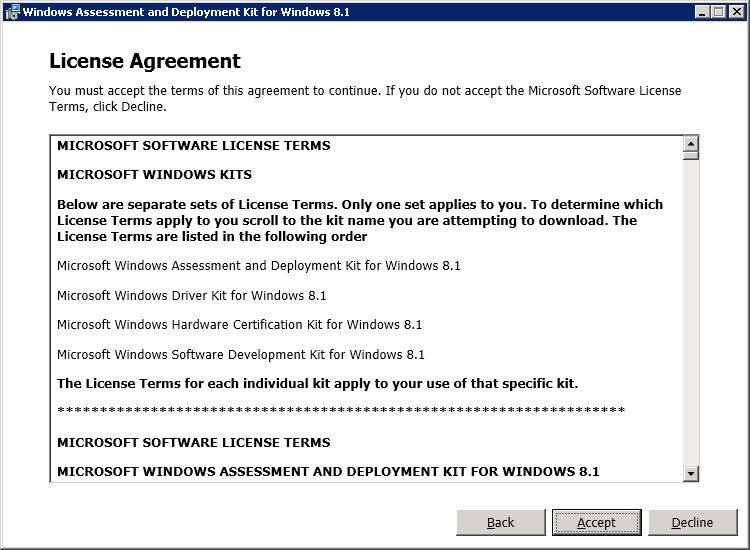

Accept the licence agreement.

SP12R209

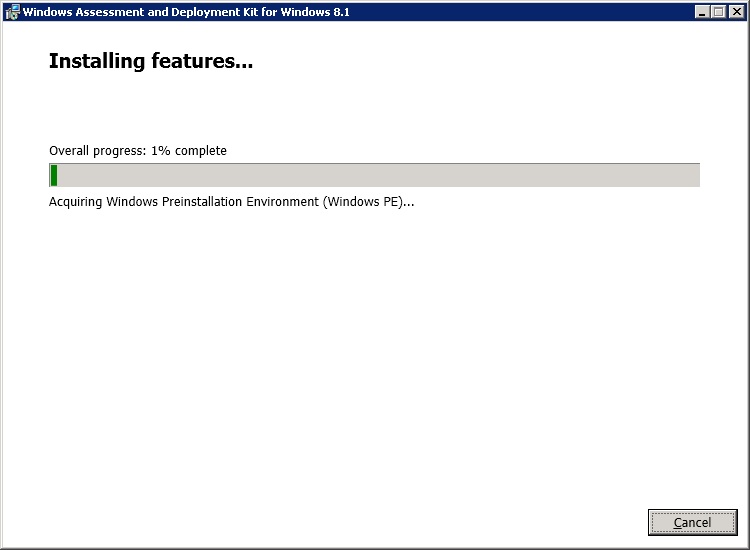

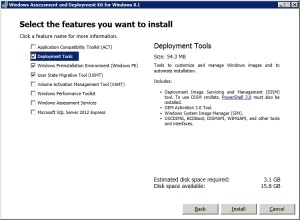

Select Deployment Tools, Windows PE and USMT from the features and click Install.

SP12R210

SP12R211

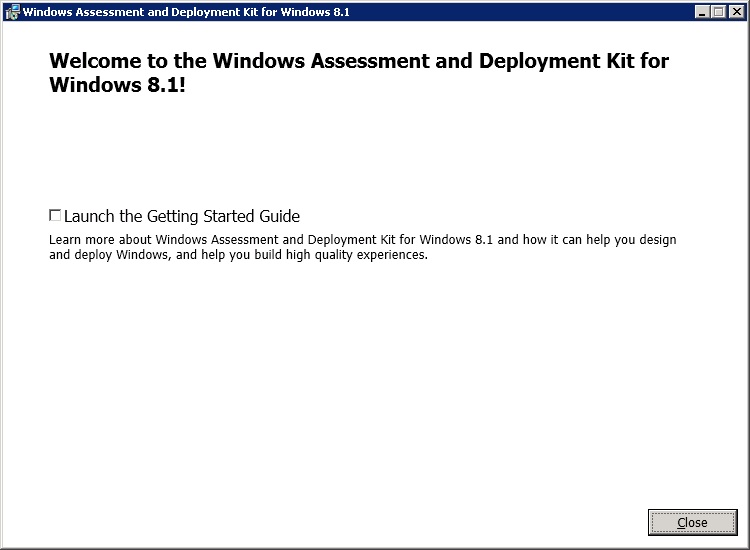

Click Close when the installation is complete.

SP12R212

Install SCCM 2012 R2

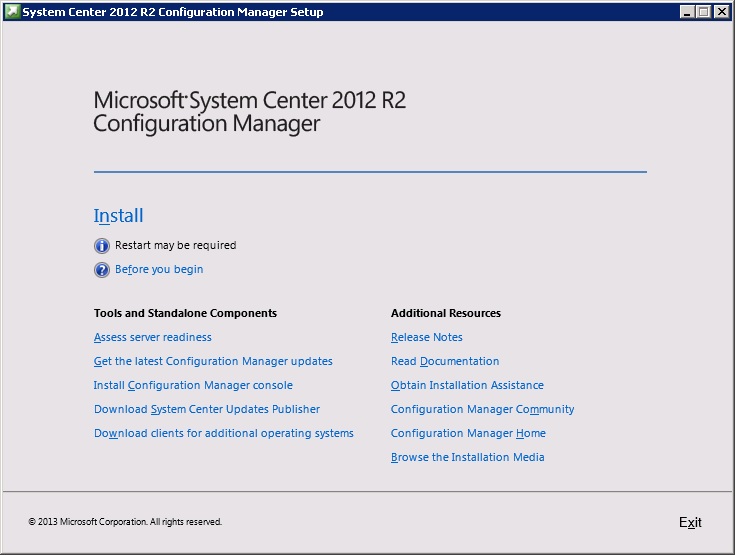

Launch the R2 installation.

SP12R213

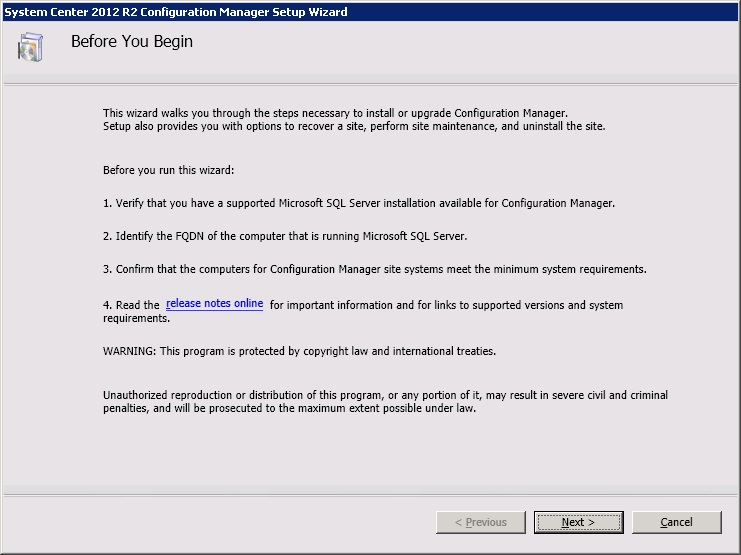

Click Next.

SP12R214

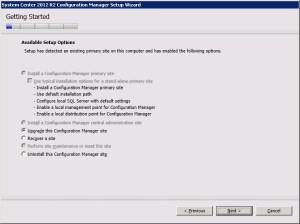

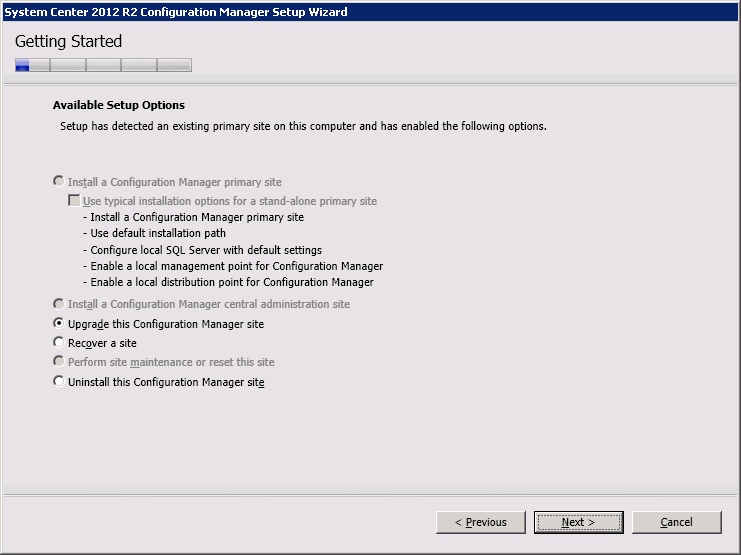

Select Upgrade the Configuration Manager Site and click Next.

SP12R215

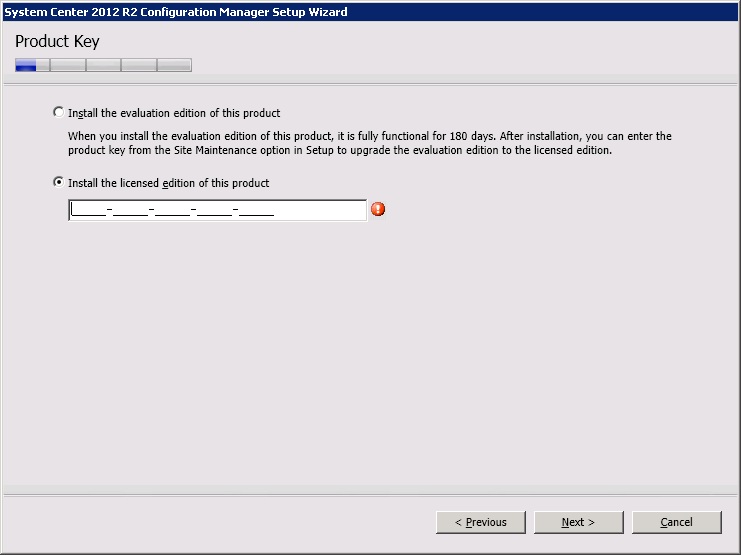

Enter the relevant licence key details.

SP12R216

Accept the licence agreement and click Next.

SP12R217

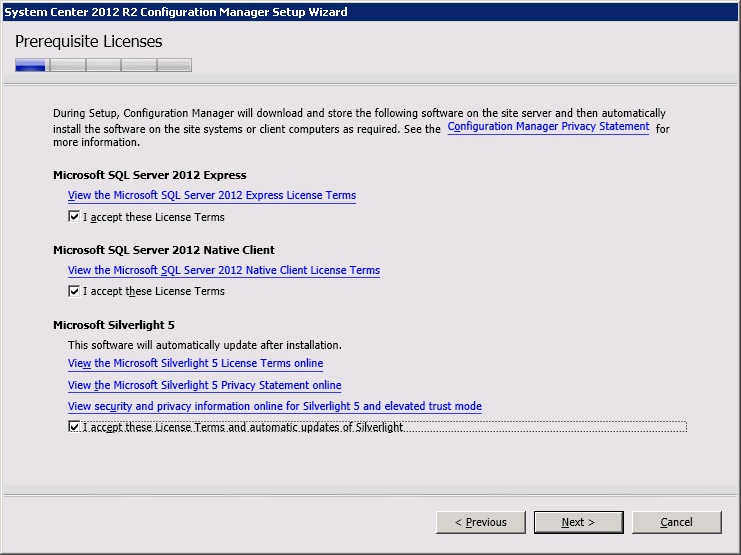

Accept licence agreements and click Next.

SP12R218

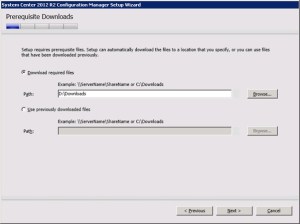

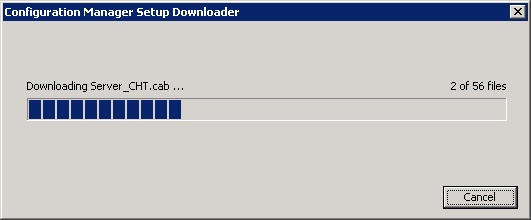

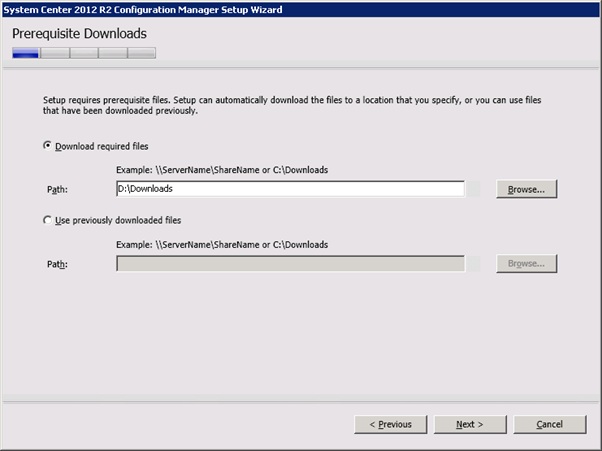

Download the required files and click Next.

SP12R219

SP12R220

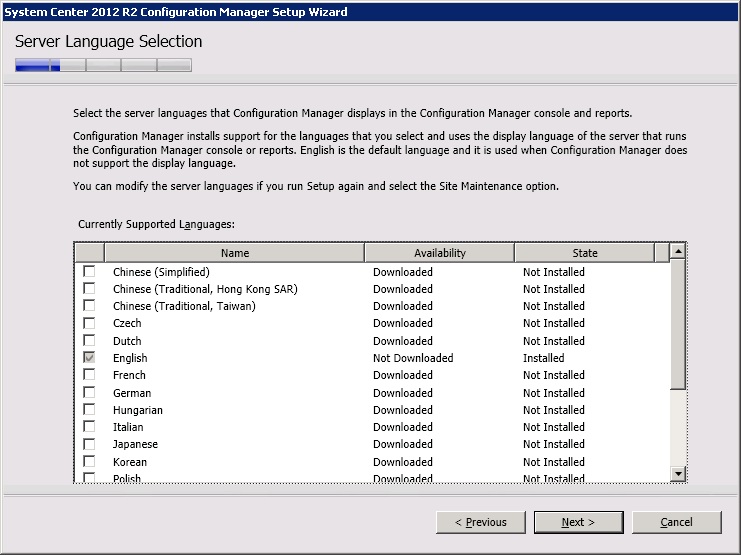

Select Languages to install. Click Next.

SP12R221

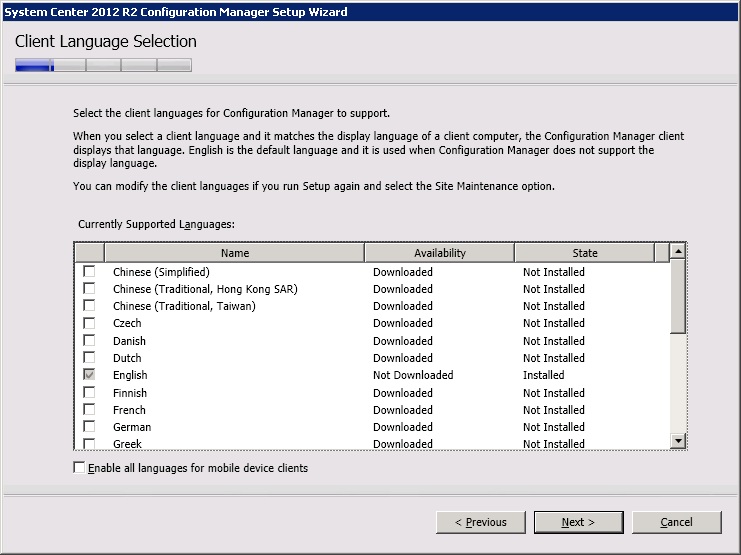

Select Client languages to install. Click Next.

SP12R222

Click Next at the upgrade prompt.

SP12R223

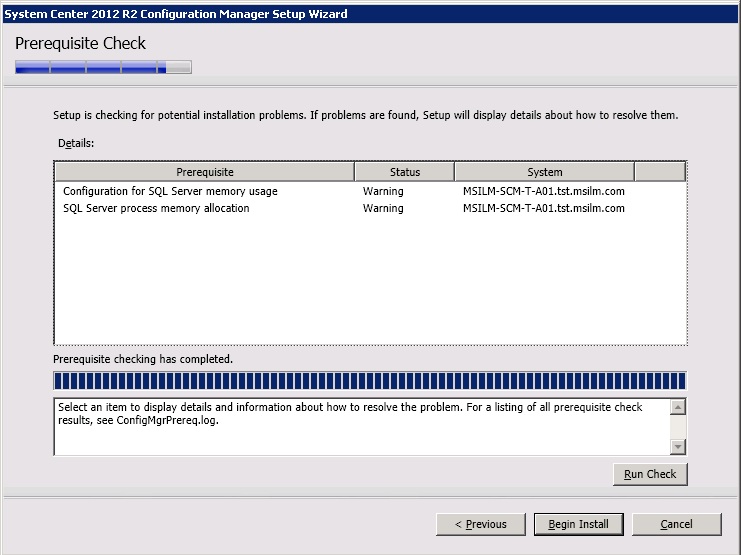

Address any pre-requisite failures and click Begin Install.

SP12R224

SP12R225

Update to CU1

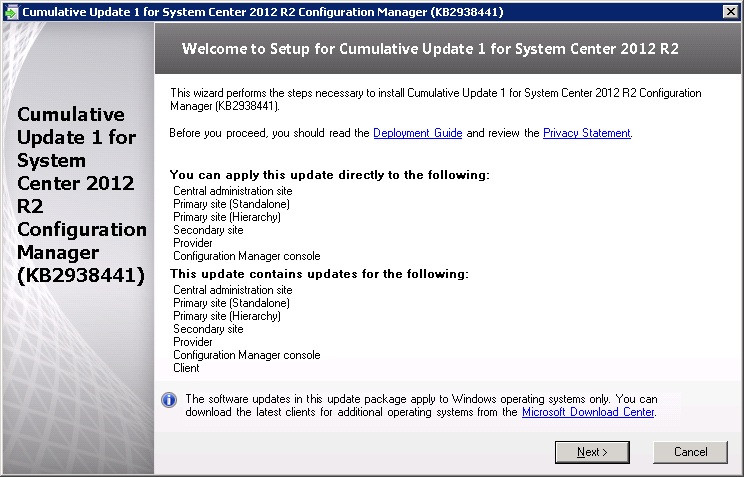

Run the CM12-R2CU1-KB2938441-X64-ENU.exe file as administrator.

Click Next.

SP12R226

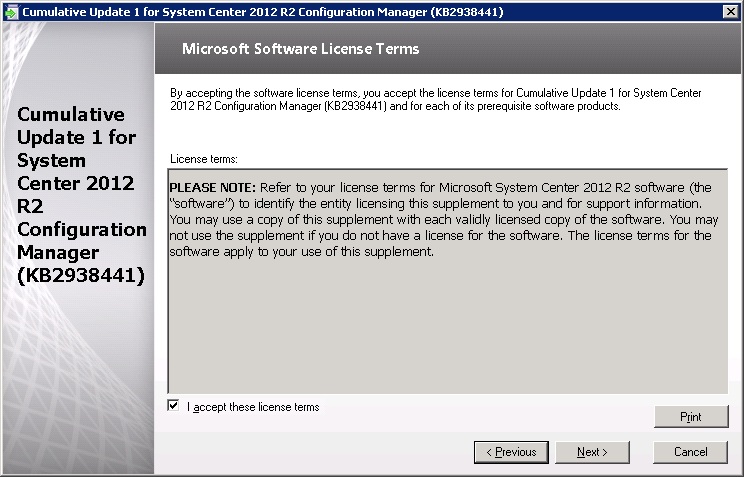

Accept the licence agreement and click Next.

SP12R227

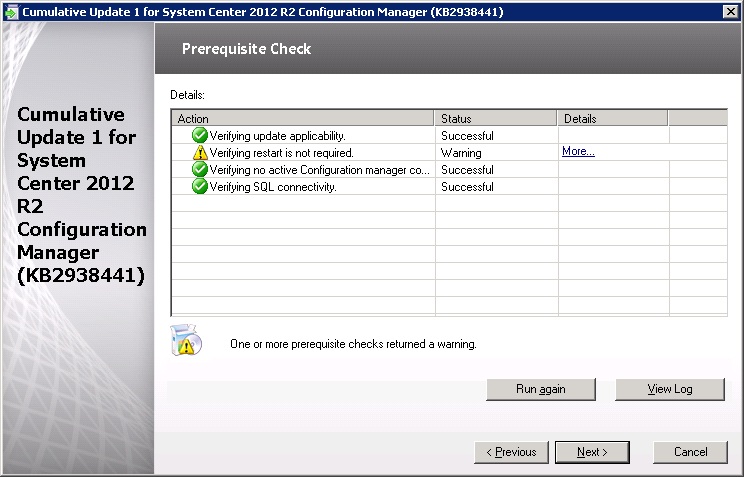

Address any pre-requisites – in this instance a server restart is required.

SP12R228

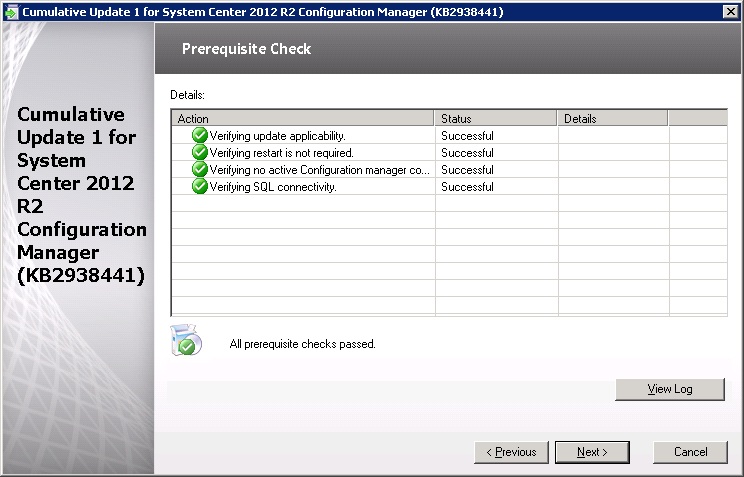

Post restart the pre-requisites are met.

SP12R229

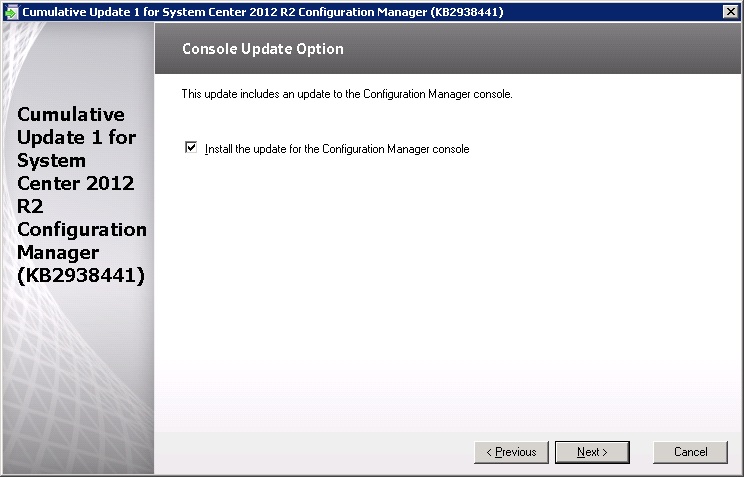

Install the Console and click Next.

SP12R230

Update the site database and click Next.

SP12R231

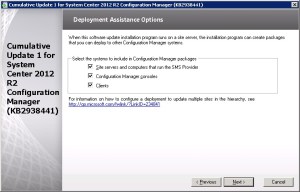

Accept to create packages and click Next.

SP12R232

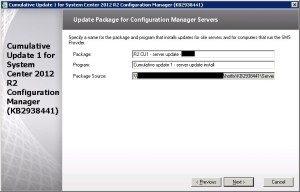

Accept defaults and click Next.

SP12R233

Accept defaults and click Next.

SP12R234

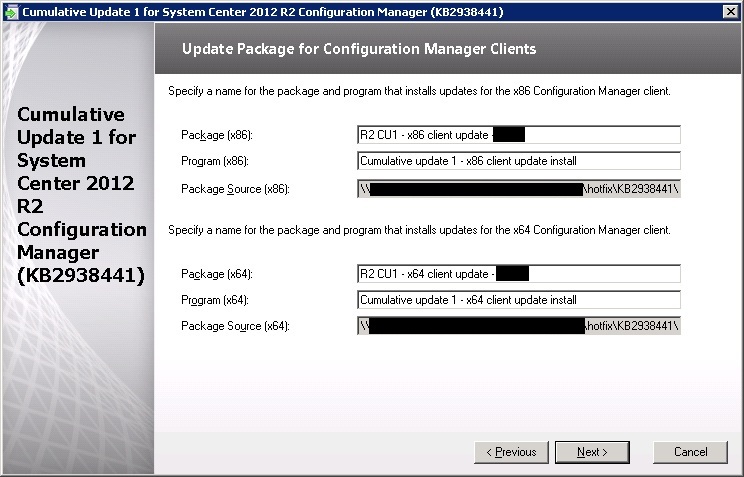

Accept defaults for client packages and click Next.

SP12R235

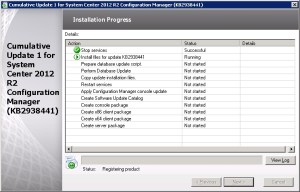

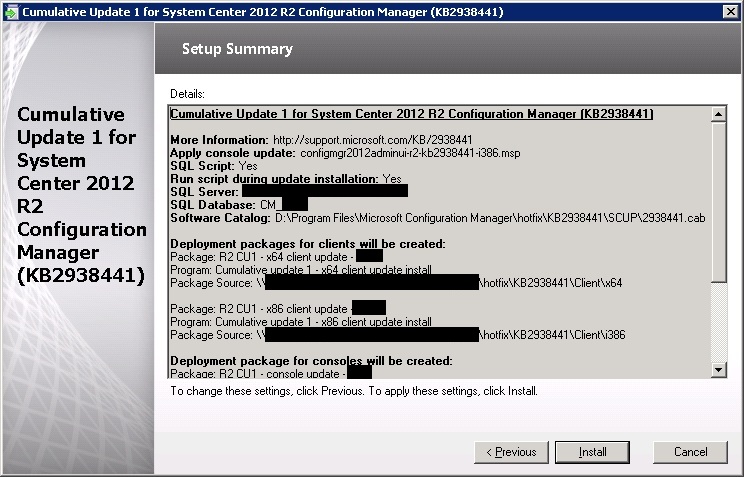

Click Install to begin the update.

SP12R236

SP12R237

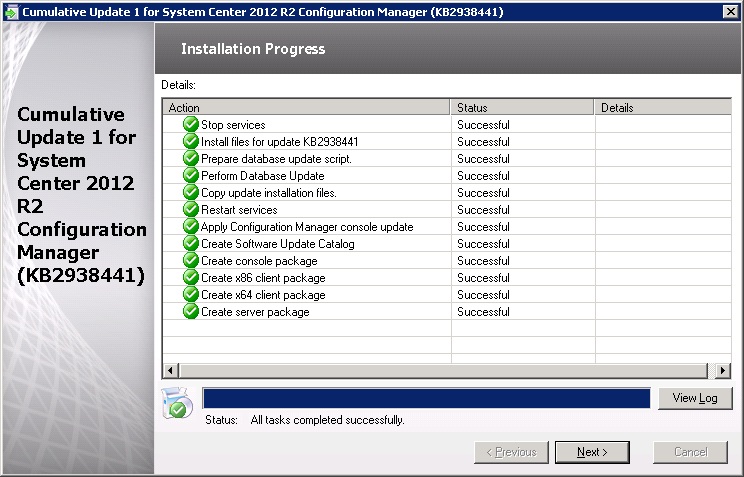

When the installation is complete click Next.

SP12R238

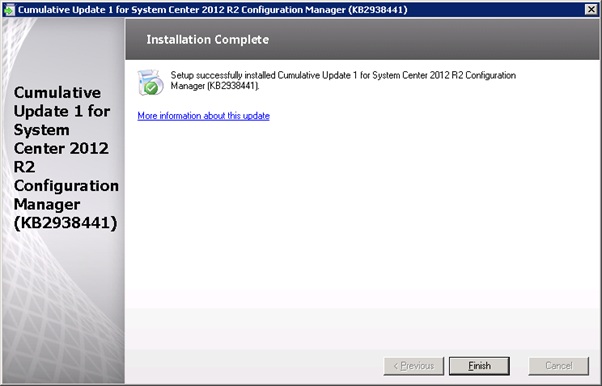

Click Finish.

SP12R238b

Update MDT 2012 to MDT 2013

Download MDT 2013 from http://www.microsoft.com/en-gb/download/details.aspx?id=40796

Run the MicrosoftDeploymentToolkit2013_x64.msi file.

Click Next.

SP12R239

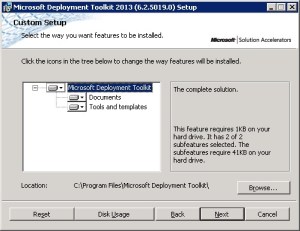

Accept the licence agreement and click Next.

SP12R241

Click Next.

SP12R240

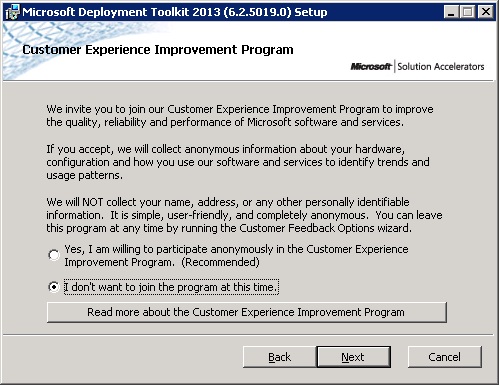

Click Next

SP12R242

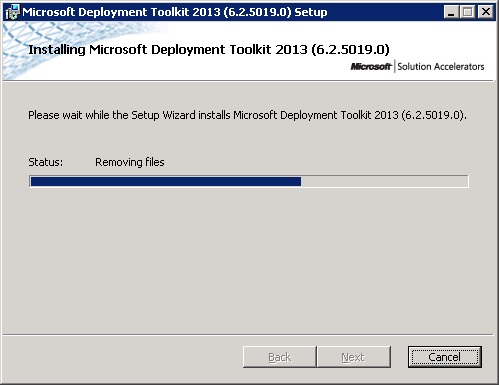

Click Install

SP12R243

SP12R244

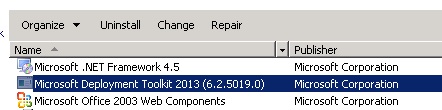

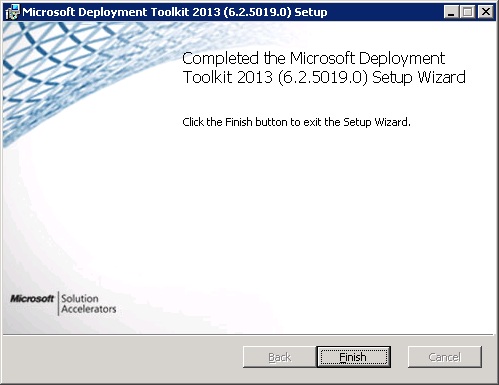

Click Finish once the installation is complete.

SP12R245

SP12R246



Install MDT 2013 Extensions in ConfigMgr

Once MDT 2013 is installed you will need to remove the old MDT 2012 extensions and add in the 2013 set.

To do this click the Start Menu and choose Microsoft Deployment Toolkit>Configure ConfigMgr Integration.

When prompted remove the existing MDT extensions. Click Next.

MDT01

Click Finish when complete.

MDT02

Then head back to the Start Menu and run the ConfigMgr Integration again.

This time install all the MDT extensions including Task Sequence actions. Click Next.

MDT03

Click Finish when complete.

MDT04

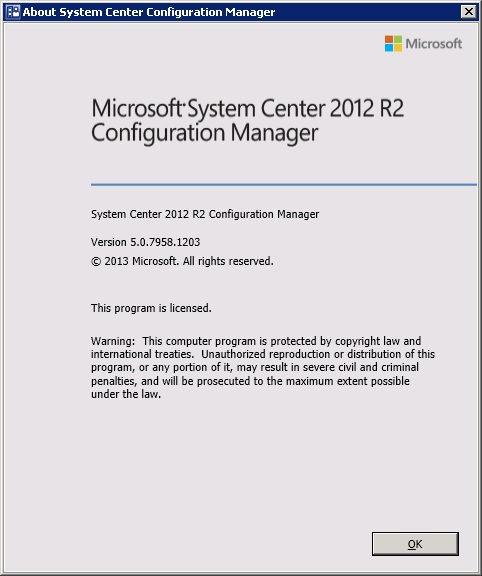

After the CU1 update, the SCCM console will report back as running version 5.00.7958.1203. Check your site status and ensure components running on the site server are reporting back ok.

SP12R247



If any other devices are running the SCCM Console then these will need to be upgraded to the latest release, also deploy out the R2 client and then the CU1 release to end points.

For any secondary servers running SQL Server Express 2012 you will need to update to the CU2 release otherwise you will get the following error on update to SCCM 2012 R2.

‘[Failed]:Configuration Manager sites require a supported SQL Server version with required hotfixes for site database operations to succeed. Before Setup can continue, you must install a supported version of SQL Server on the specified site database server. For more information, see http://go.microsoft.com/fwlink/p/?LinkID=232936.’
