SCCM 2012 R2 – Step by Step Installation Guide

The following guide will take you through the installation of SCCM 2012 R2 with a simple Primary Server approach and with the SQL server located on the same device. It assumes that no earlier version of SCCM is installed in the Active Directory domain it is being installed into.

Before installing SCCM 2012 R2 you will need to run through some prep work to get the Active Directory configured and extended, along with some application and role/feature installs

Prepare Active Directory for Configuration Manager

Create the System Management Container in AD

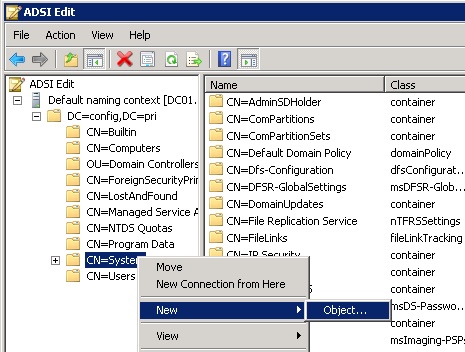

Connect to a domain controller and load ADSI Edit. Under the System OU create a new Object.

R201

Choose Container and click Next.

R202

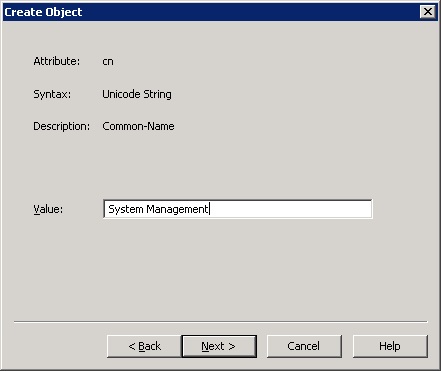

Enter the name System Management and click Next.

R203

Complete the wizard and close ADSIEdit.

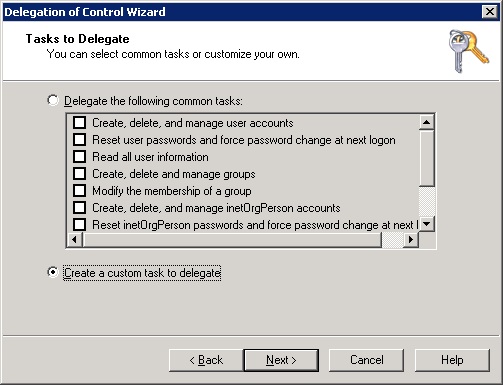

Delegate control to the SCCM site server to the newly created container in AD Users and Computers. Create a custom task to delegate and choose ‘This folder, existing objects in this folder and creation of new objects in this folder’

R204

R205

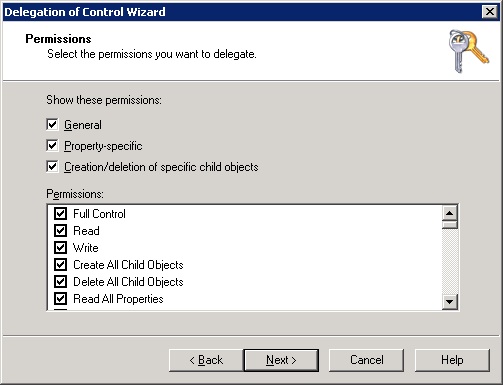

Check all Permission boxes and complete the wizard

R205a

Extend the Schema

From the SCCM 2012 media copy the \SMSSetup\Bin\x64\ folder to a Domain Controller holding the Schema Master Role. Ensure the account used is a member of the Schema Admins group in AD.  Right click the Extadsch.exe and choose ‘Run as Administrator ‘.

R206

A log file ‘ExtADSch.log’ will be generated on the root of the C: Drive. Check for the entry ‘Successfully extended the Active Directory schema.’

<01-01-2014 21:25:22> Successfully extended the Active Directory schema.

To check what Extadsch.exe is doing to the Active Directory then open up the file ConfigMgr_ad_schema.ldf that is located in the same folder.

Install Site Server Prerequisites

The following roles and features need to be installed onto the SCCM Site Server prior to installation:

  • BITS
  • Remote Differential Compression
  • IIS Components
  • .Net Framework 3.5

Add the following IIS components

Common HTTP Features

Static Content

Default Document

Directory Browsing

HTTP Errors

HTTP Redirection

Application Development

ASP.NET

.NET Extensibility

ASP

ISAPI Extensions

ISAPI Filters

Health and Diagnostics

HTTP logging

Logging tools

Request Monitor

Tracing

Security

Basic Authentication

Windows Authentication

URL Authorization

Request Filtering

IP and Domain Restrictions

Performance

Static Content Compression

Management Tools

IIS Management Console

IIS Management Scripts and Tools

Management Service

IIS 6 Management Compatibility

IIS 6 Metabase Compatibility

IIS 6 WMI Compatibility

IIS 6 Scripting Tools

IIS 6 Management Console



Install Windows Assessment and Deployment Kit (Windows ADK) for Windows 8.1

Go to http://www.microsoft.com/en-gb/download/details.aspx?id=39982 and download ADK 8.1.

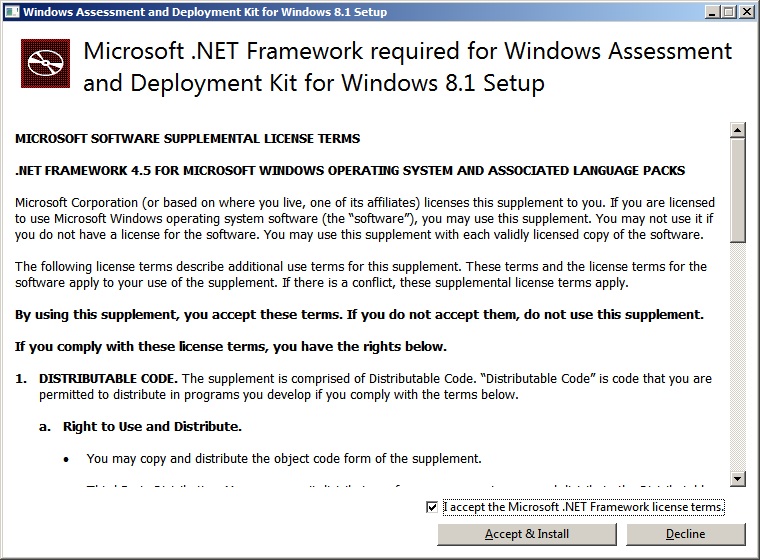

Run the adksetup.exe file. Accept the licence agreement. This will download and install .Net Framework 4.5.

R209

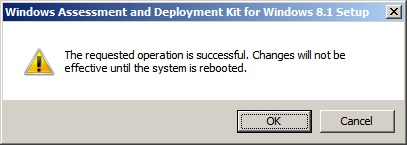

Restart the system when prompted.

R210

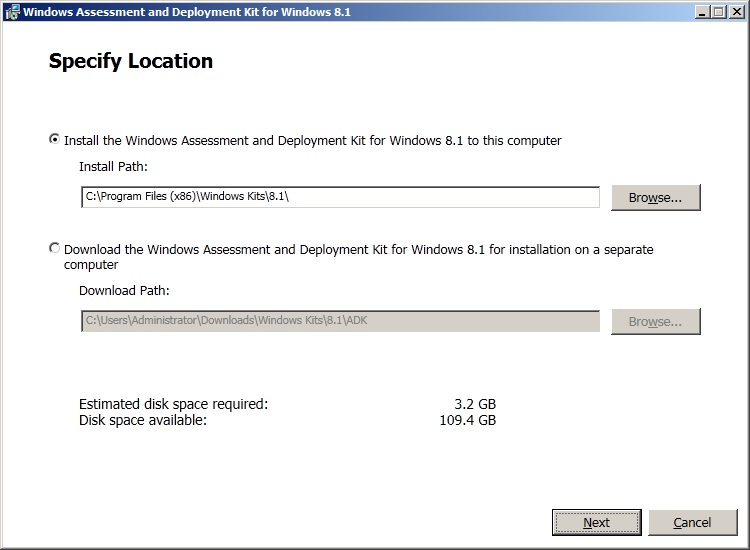

After the restart setup will resume. Accept the default location for installation and click Next.

R211

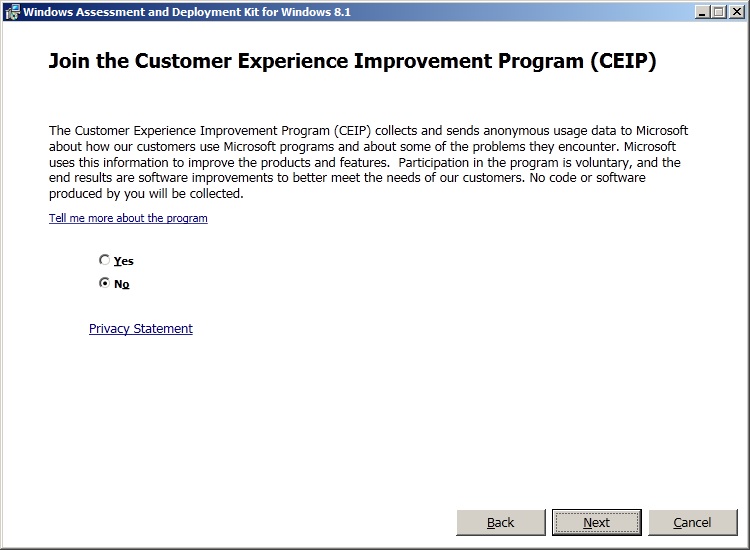

Select whether to join the CEIP and click Next.

R212

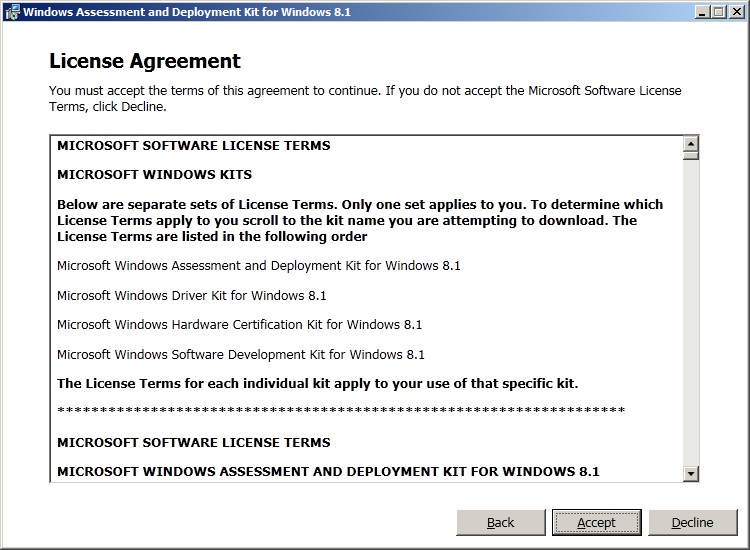

Accept the licence agreement.

R213

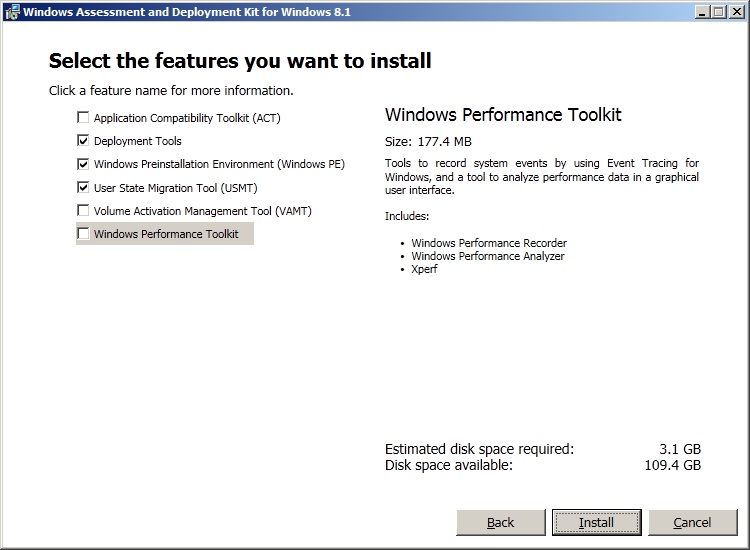

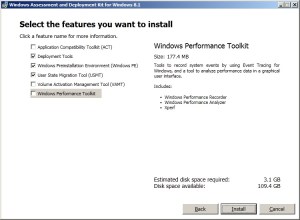

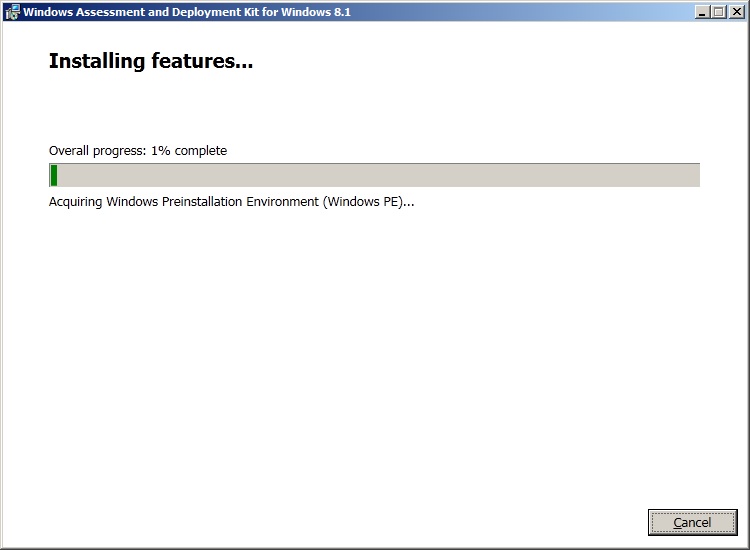

Install the following components and then click Install.

  • User State Migration Tool (USMT)
  • Windows Deployment Tools
  • Windows PreInstallation Environment (Windows PE)

R214

R215

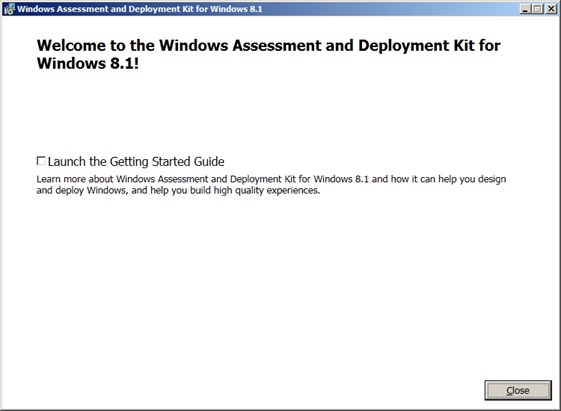

Once complete click Close.

R216

Install SQL Server

SQL Server 2012 SP1 is being installed as the SCCM database.

Run the setup.exe

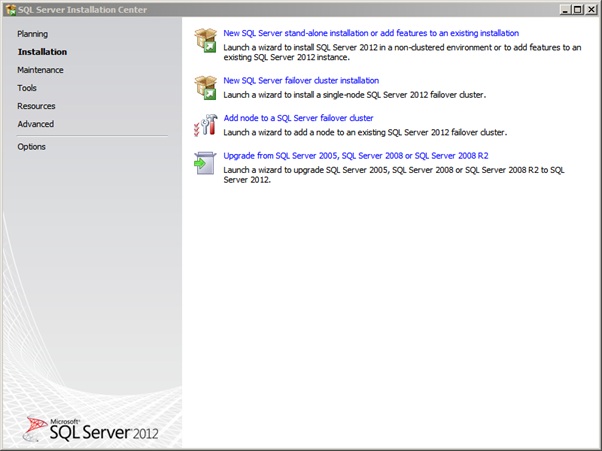

Install a new stand-alone installation of SQL

R217

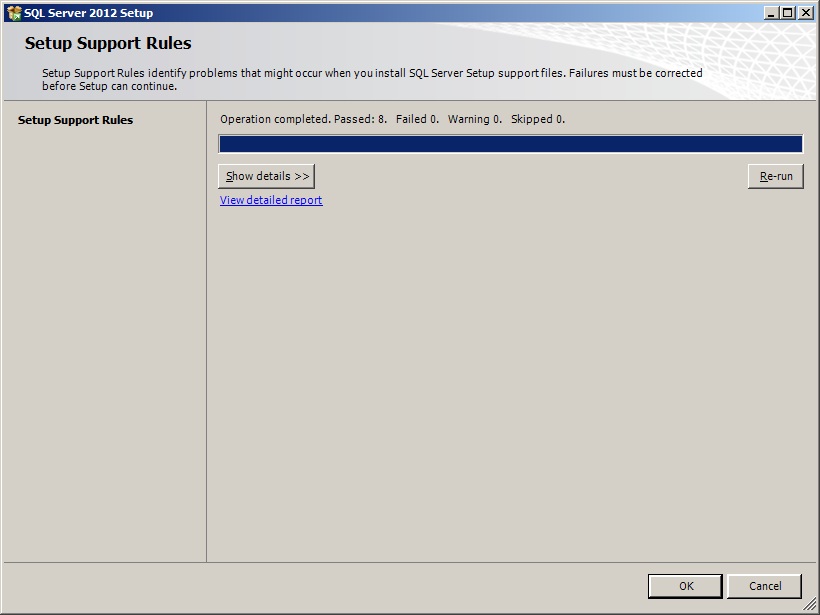

Click Ok.

R218

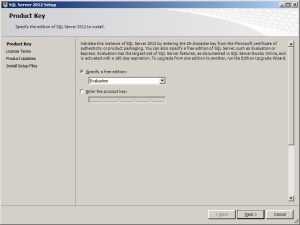

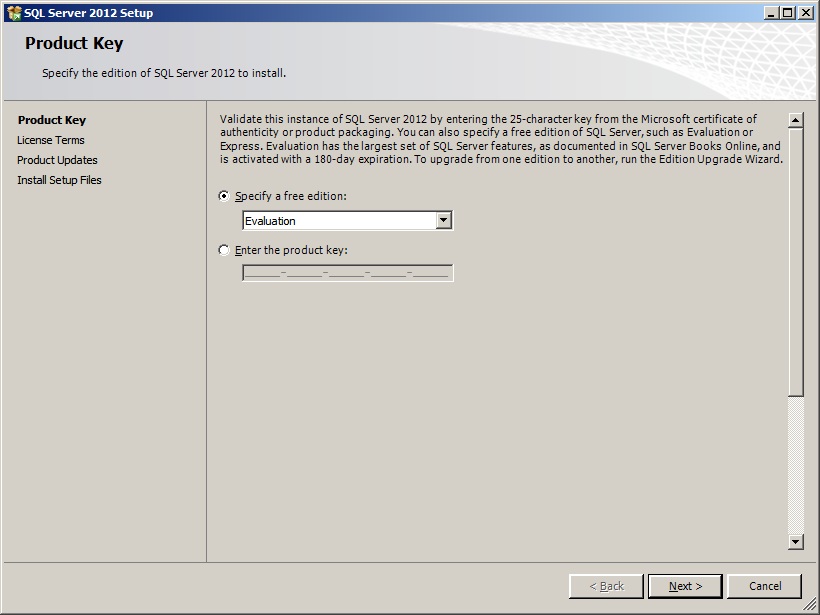

Install the product key or run in evaluation mode. Click Next.

R219

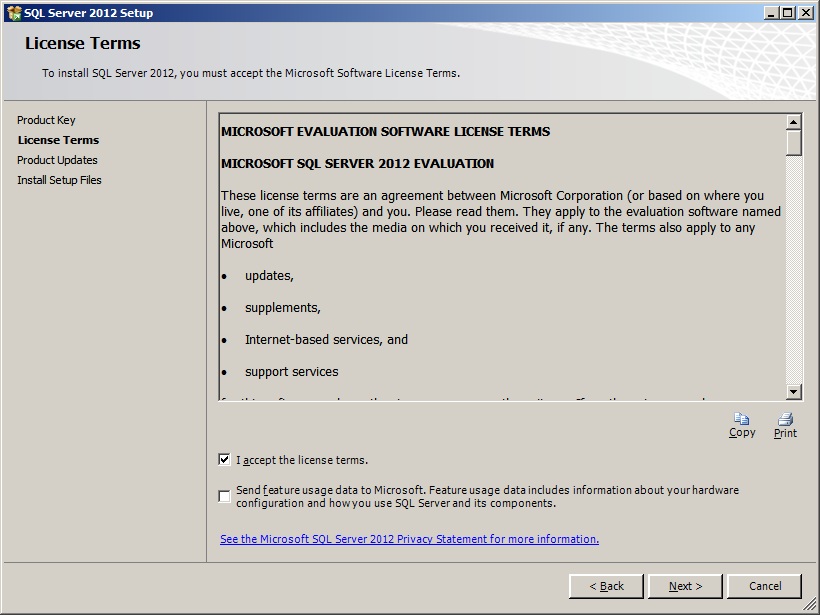

Accept the licence agreement and click Next.

R220

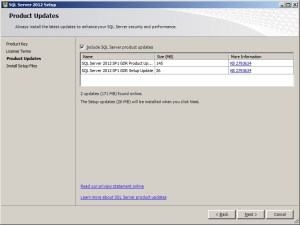

Include any product updates.  Click Next.

R221

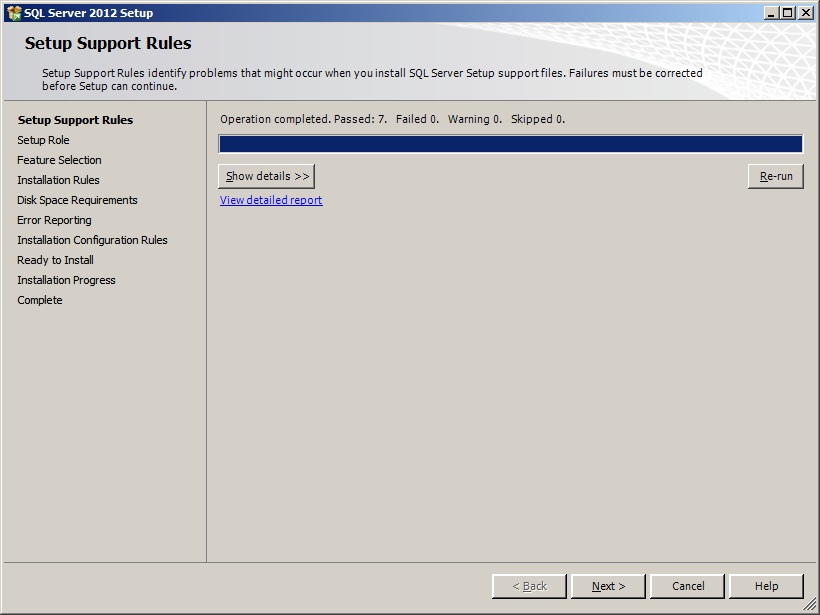

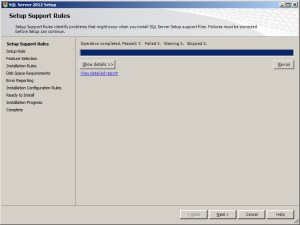

Click Next.

R222

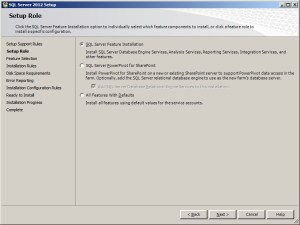

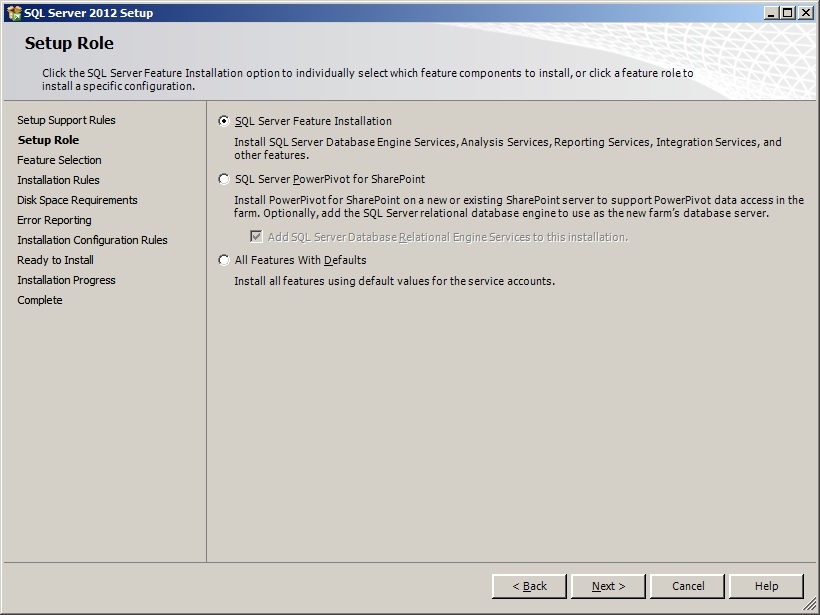

Choose the feature installation and click Next.

R223

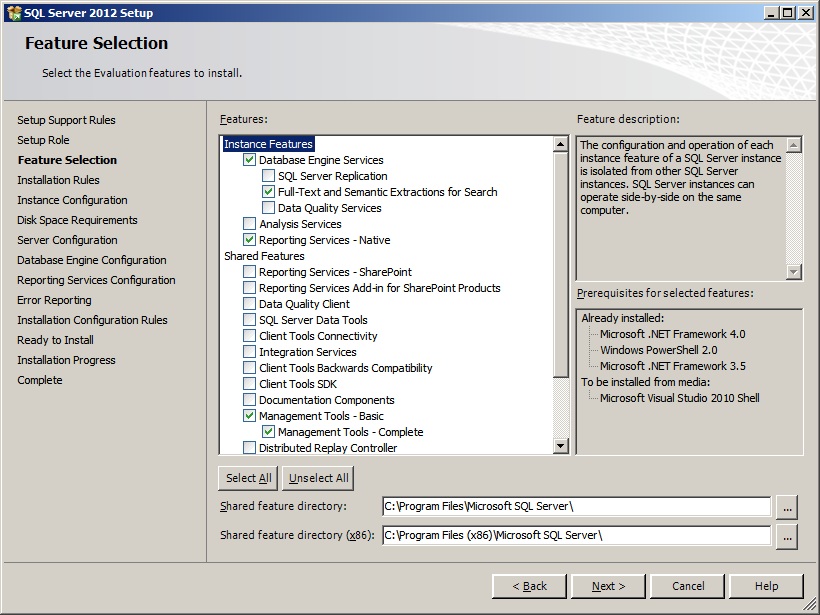

Install the selected features and click Next.

R224

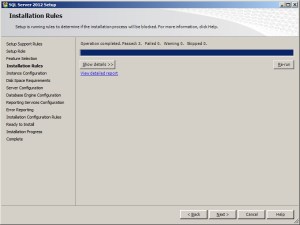

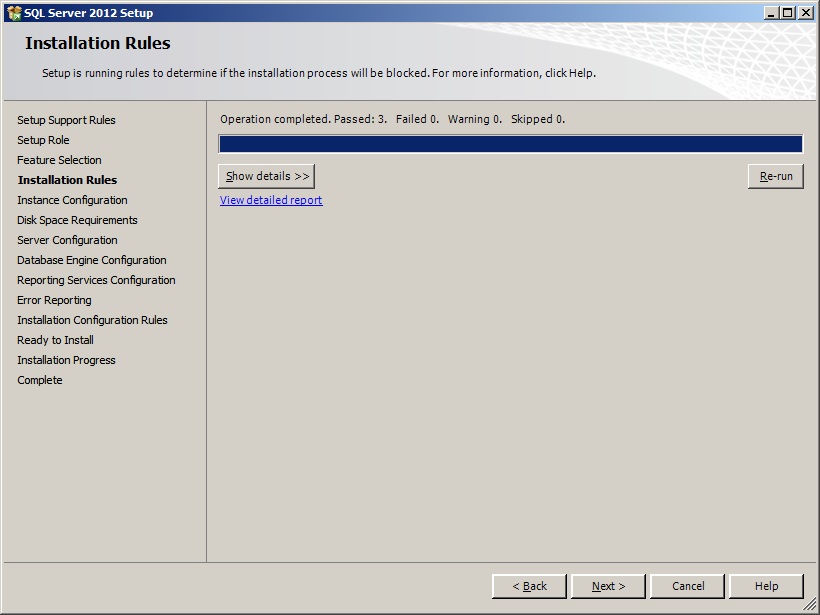

Click Next.

R225

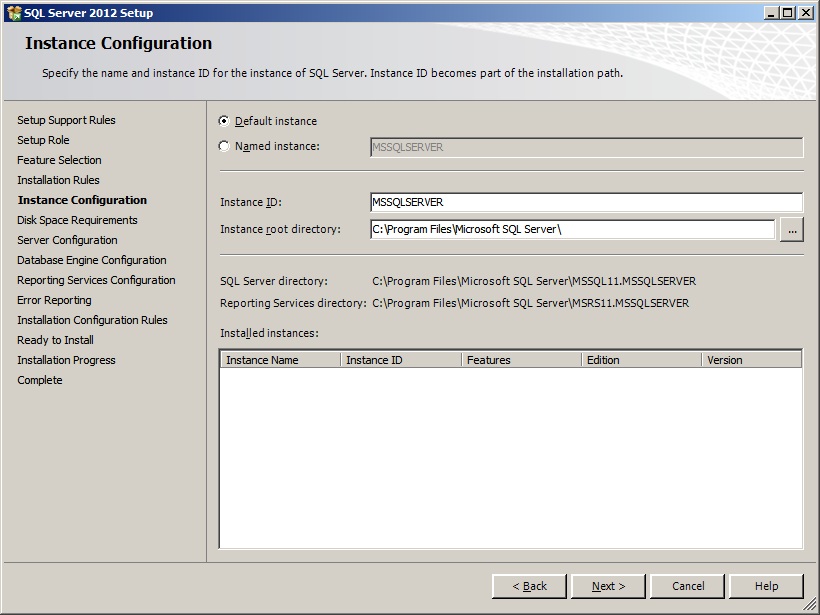

Leave as the default instance and click Next.

R226

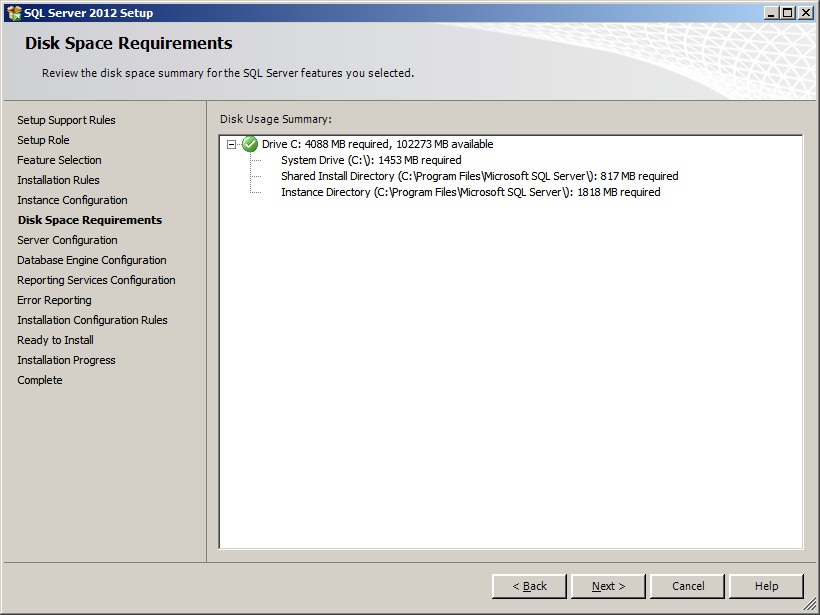

Click Next at the disk space requirements screen.

R227

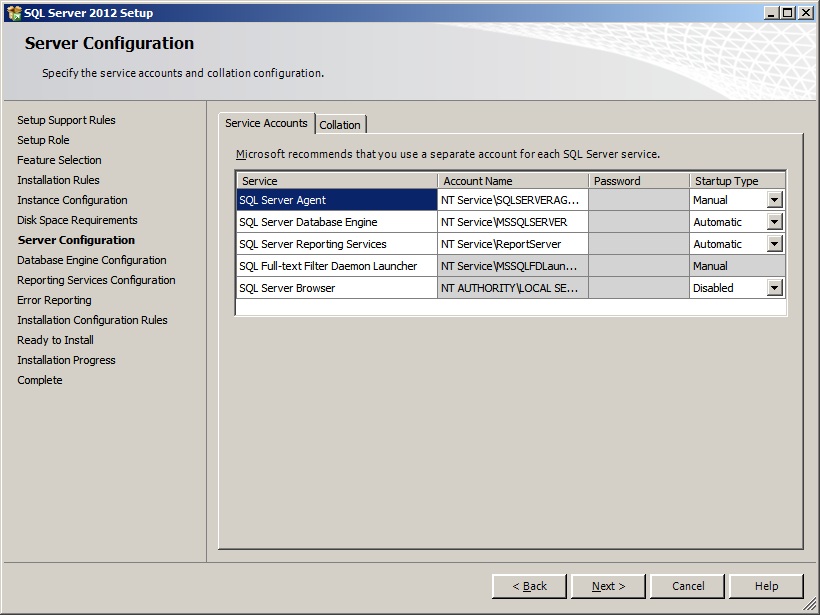

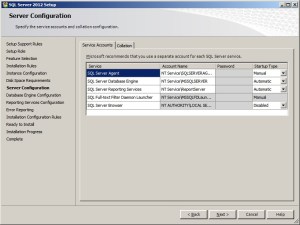

Set any account to run the SQL services, in this instance the defaults have been selected. Once confirmed, click the Collation tab.

R228

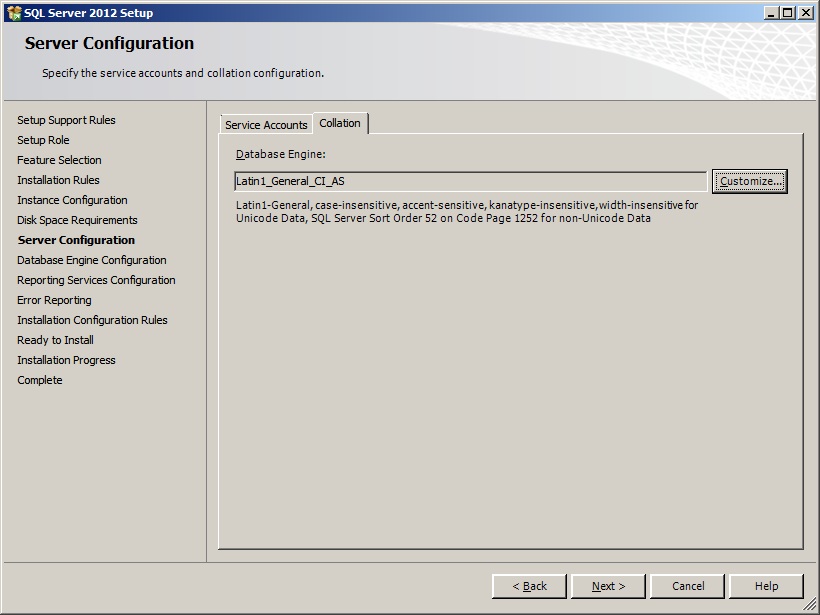

Click the Customize button.

R229

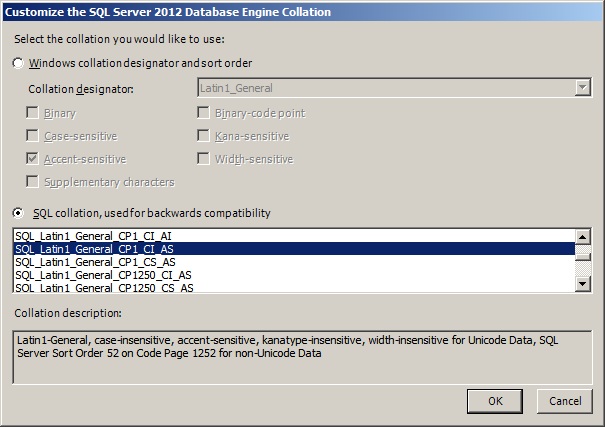

Choose the ‘SQL Collation, used for backwards compatibility’ option and choose SQL_Latin1_General_CP1_CI_AS. Click Ok. Click Next.

R230

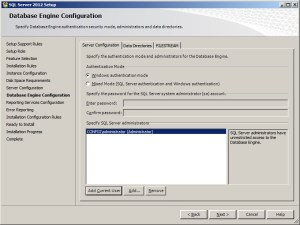

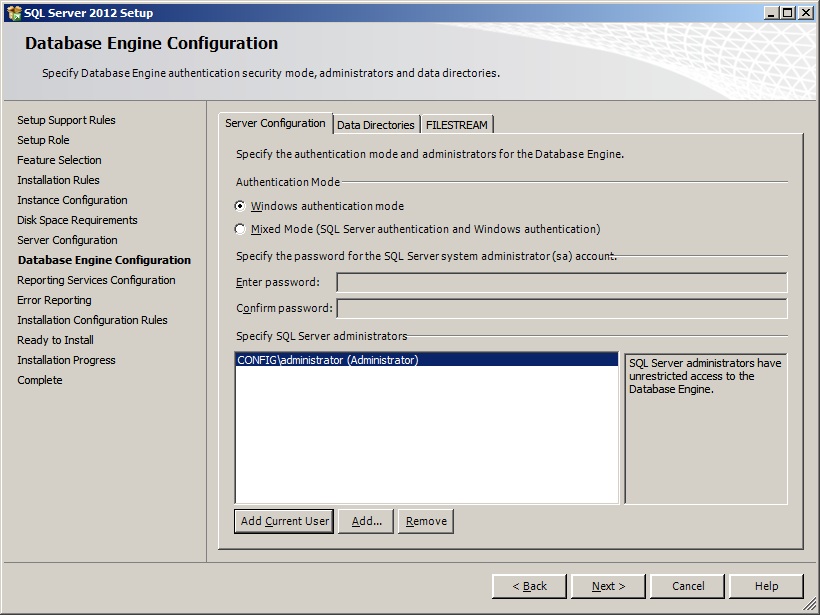

Use Windows authentication and Add the current user. Click Next.

R231

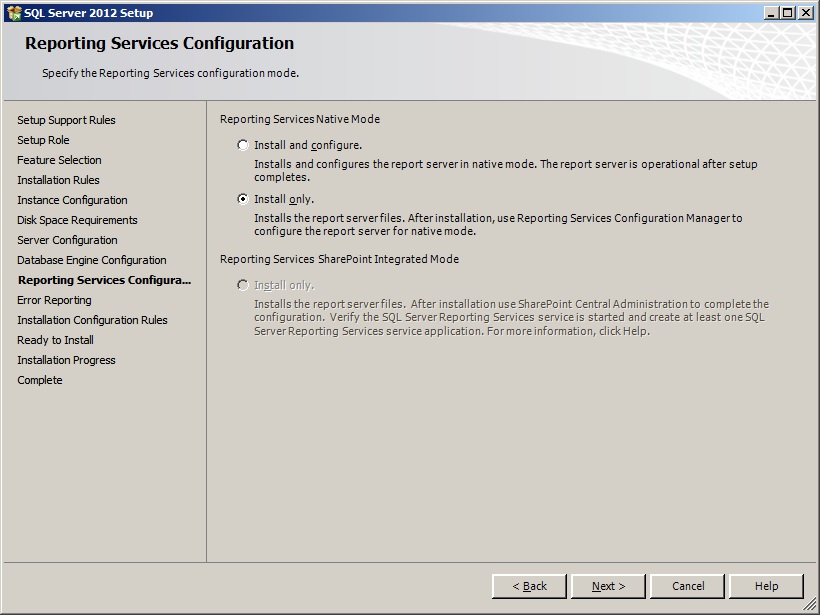

Set Reporting Services to install only. Click Next.

R232

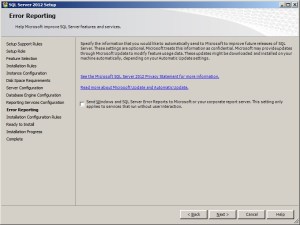

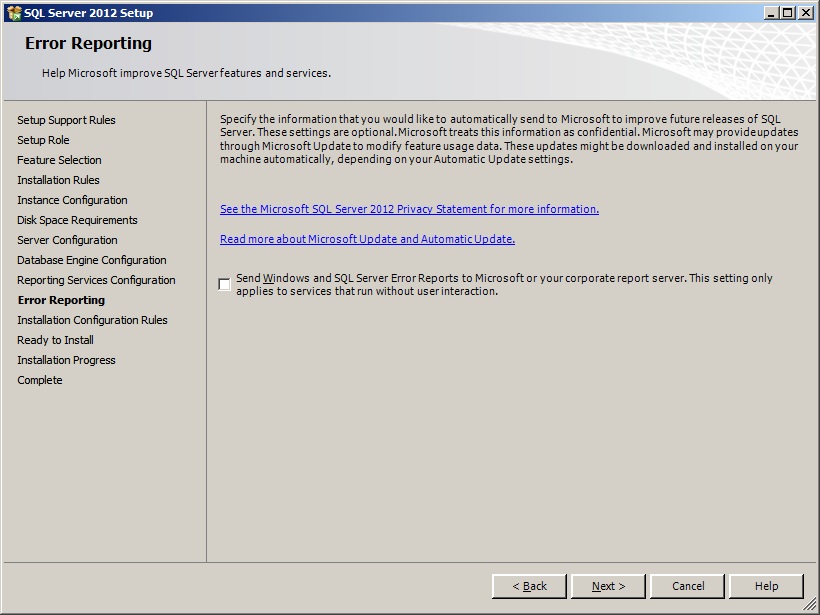

Set error reporting preferences and click Next.

R233

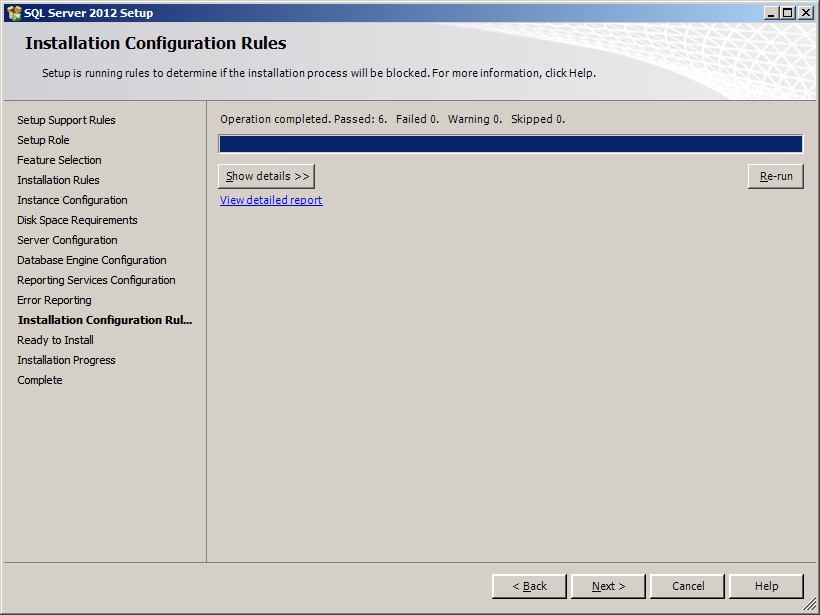

Click Next.

R234

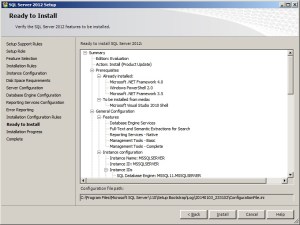

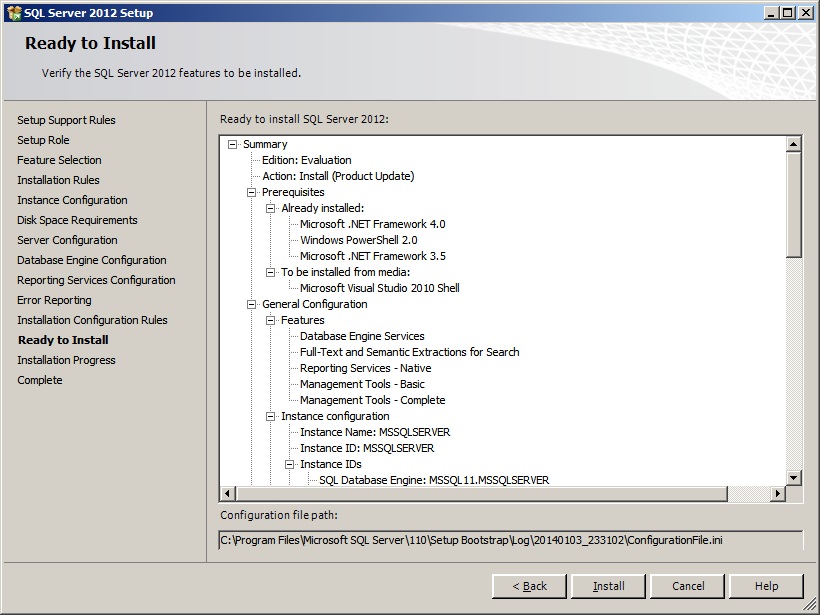

Click Install to begin the installation process.

R235

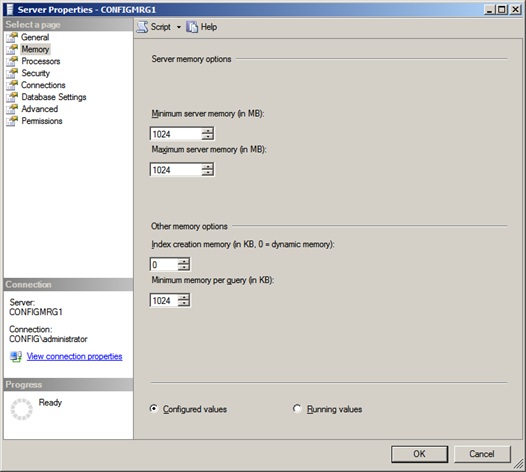

Once installed open up SSMS and limit the amount of RAM SQL can use to 50% of total RAM. Set the value for both max and min.

R235a

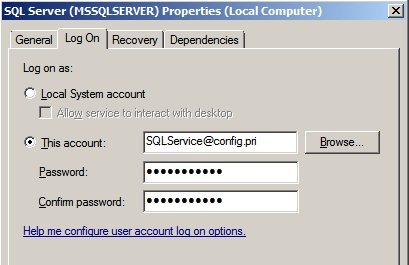

Set SQL to run with either a named domain account, network service or local system account. If using a named account grant the log on as a service right via gpedit.msc or GPO.

SQLService

Install SCCM 2012 R2

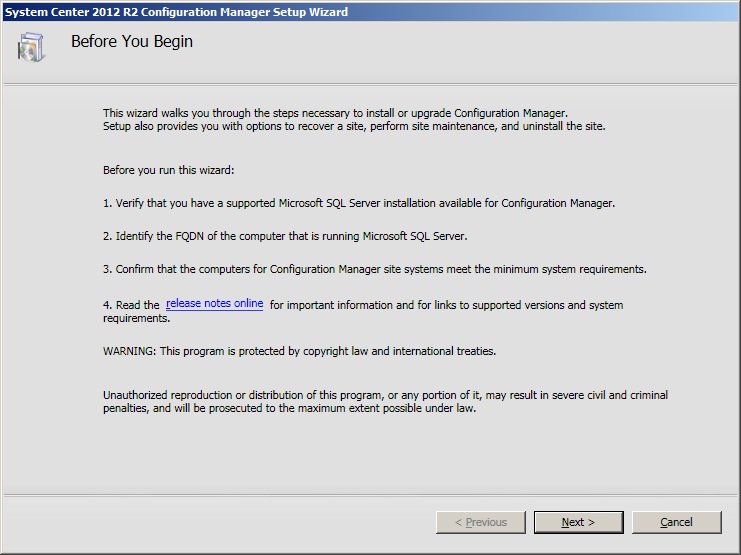

Begin the install of SCCM 2012 R2 by running splash.hta. Click Install.

R237

Click Next.

R237a

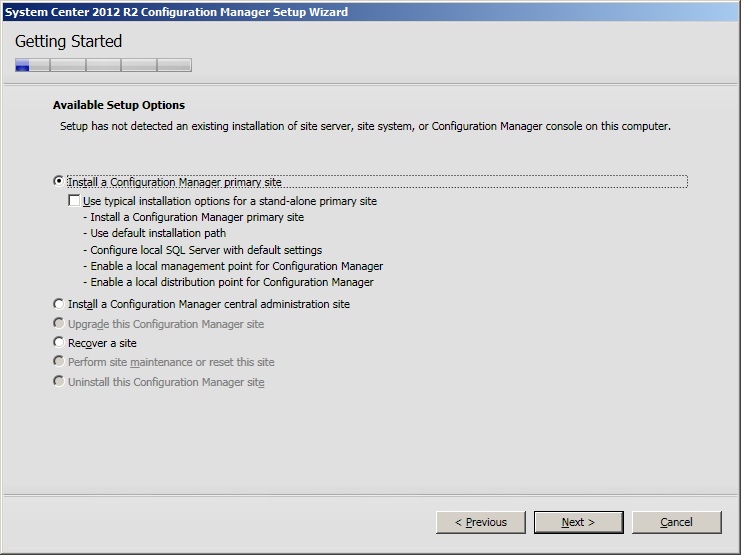

Choose to install a primary site in this instance. Click Next.

R238

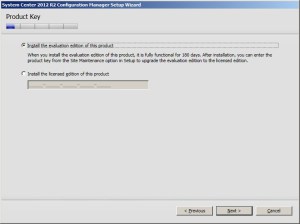

Enter a licence key or evaluate. Click Next.

R239

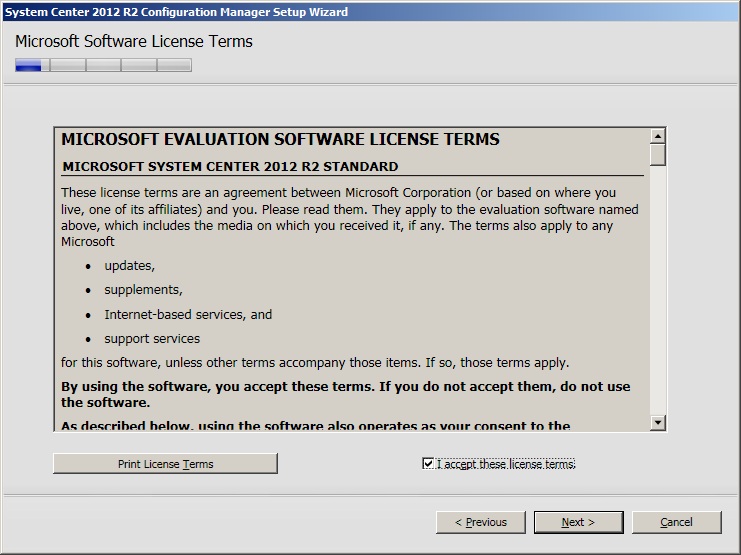

Accept the licence agreement and click Next.

R240

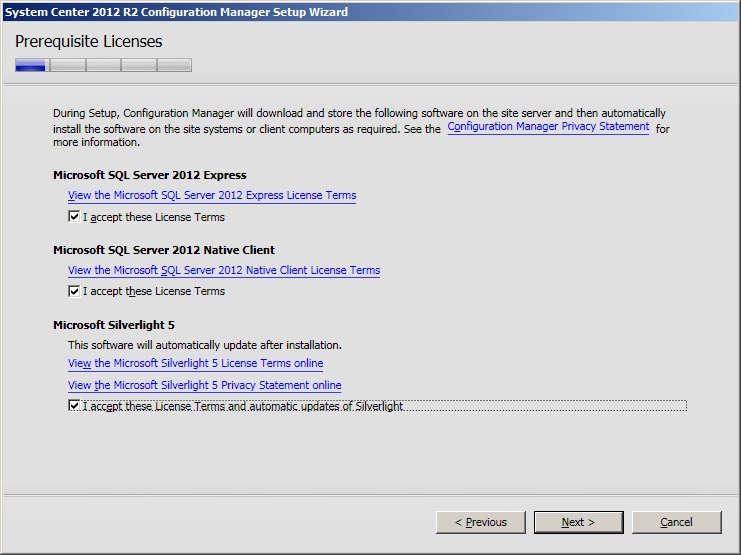

Accept pre-req licences and click Next.

R241

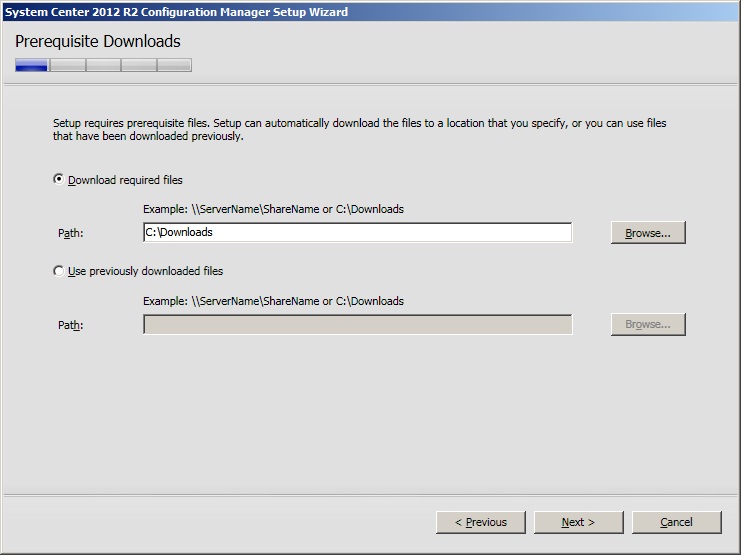

Create a folder to store install updates and point the SCCM install to that location. Click Next.

R242

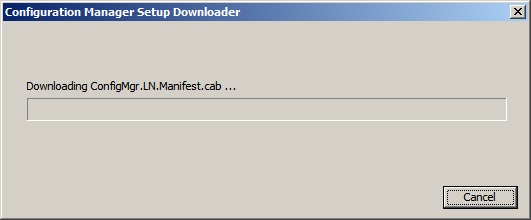

Updates will download and install.

R243

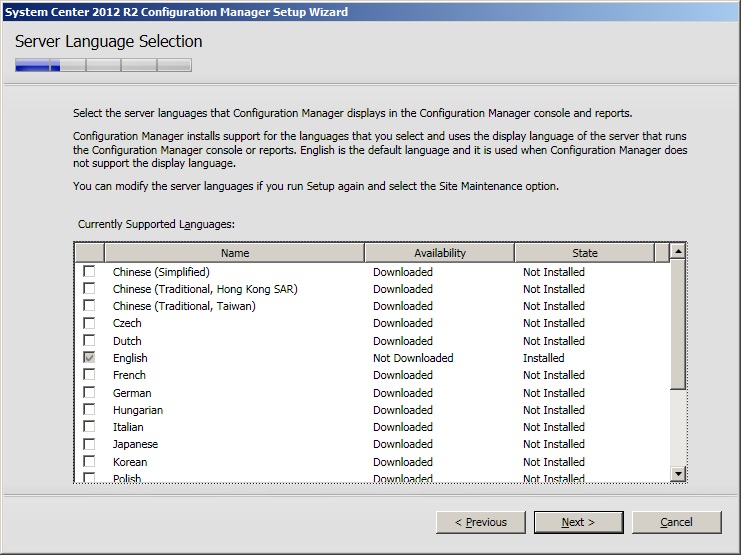

Select any language requirements for the SCCM server and click Next.

R244

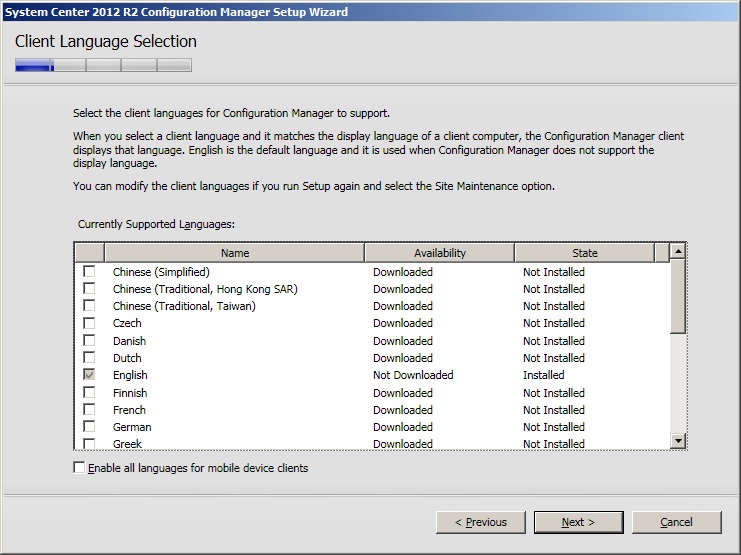

Select any client language requirements and click Next.

R245

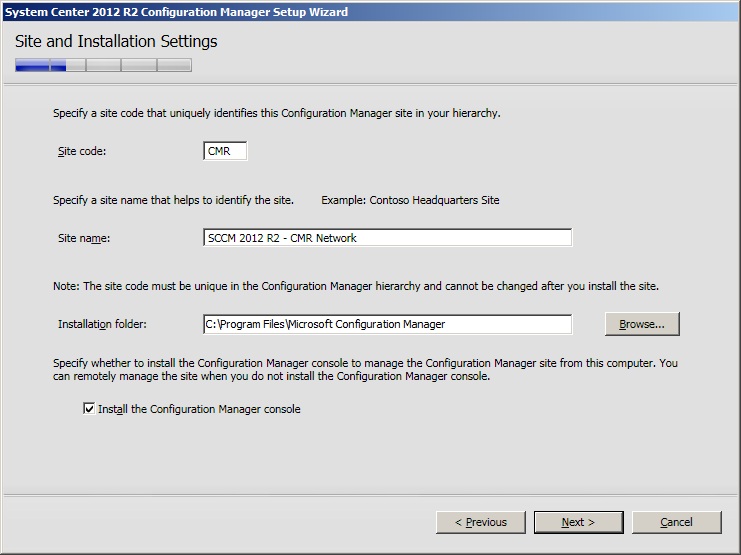

Enter a 3 digit site code and description and click Next. Be aware of Microsoft list of pre-reserved site code names. http://support.microsoft.com/kb/279868/en-us

R246

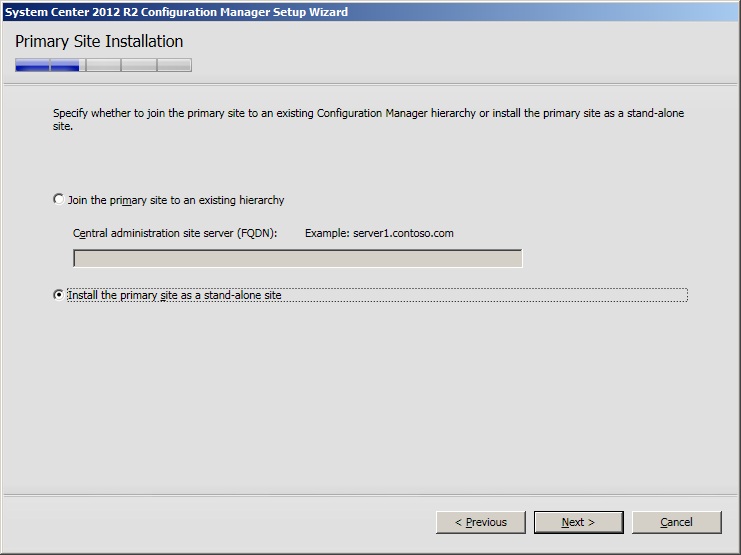

Choose whether to run the primary as stand-alone or join to an existing hierarchy. Click Next.

R247

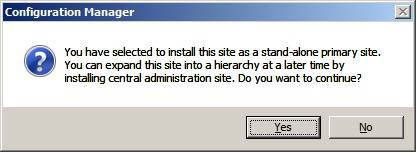

In this instance a stand-alone primary is being installed. Click Yes to accept.

R248

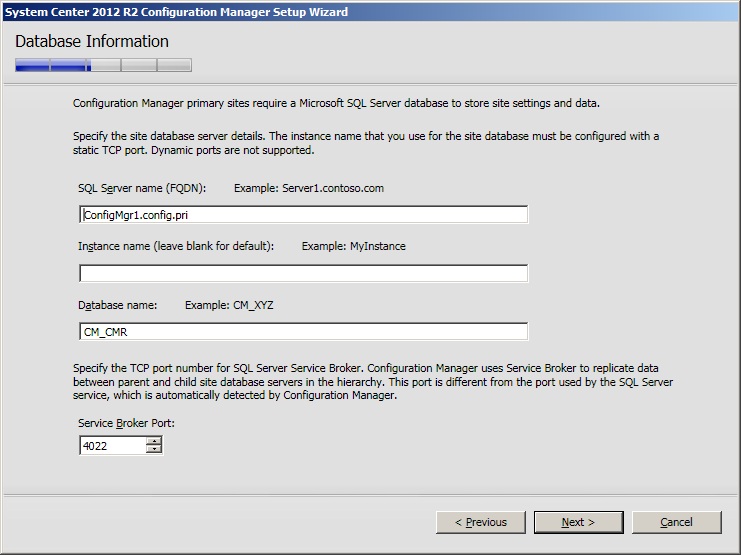

Accept the database default configuration and click Next.

R249

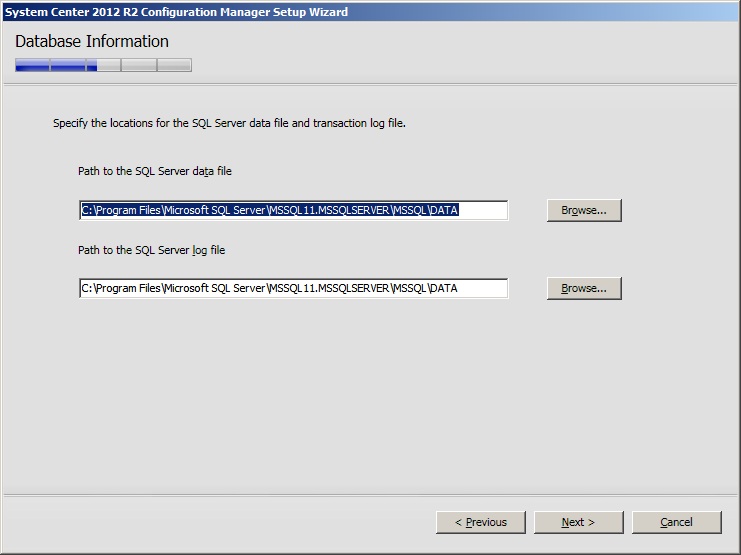

Specify the path to the SQL database file and log file. In this instance it is the defaults. Click Next.

R250

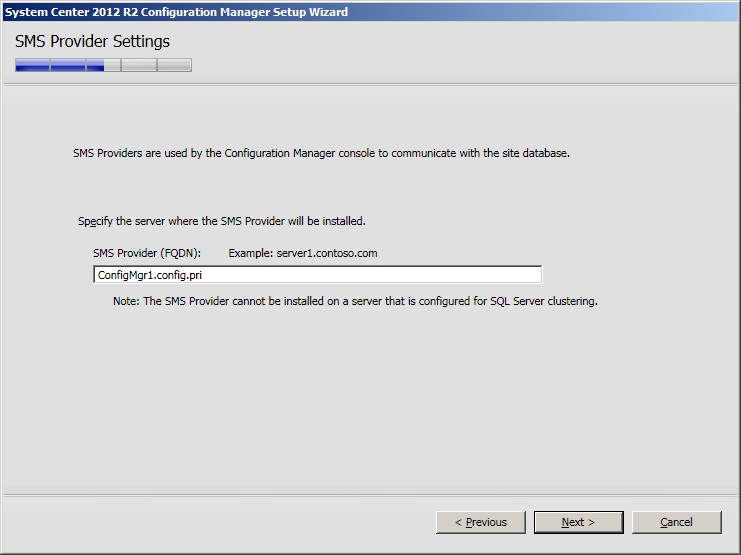

Click Next to set the current server as the SMS Provider

R251

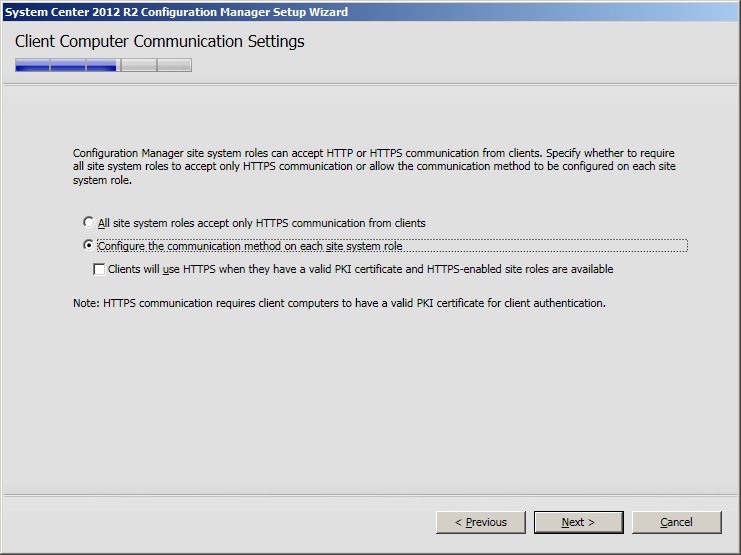

Set ‘Configure the communication method on each site system role’ as a PKI infrastructure is not being used. Click Next.

R252

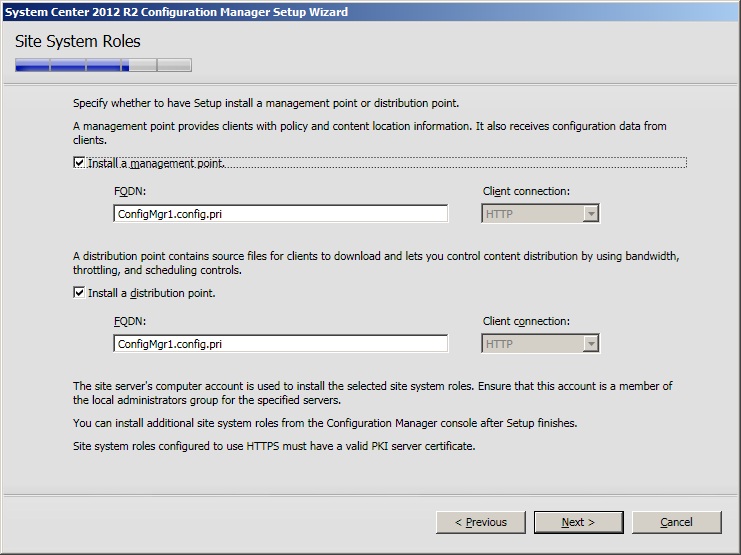

Install both a MP and a DP onto the site server. Click Next.

R253

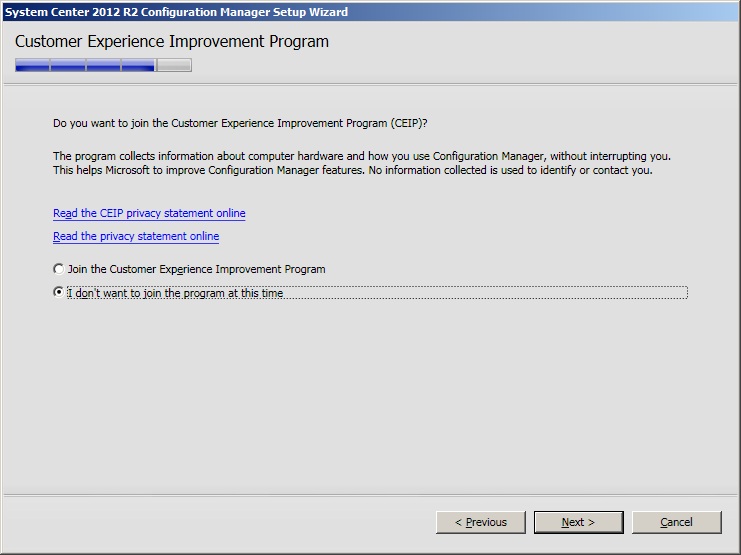

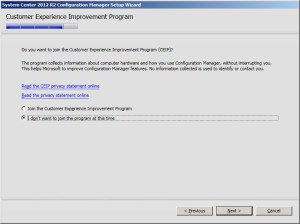

Choose whether to join the CEIP. Click Next.

R254

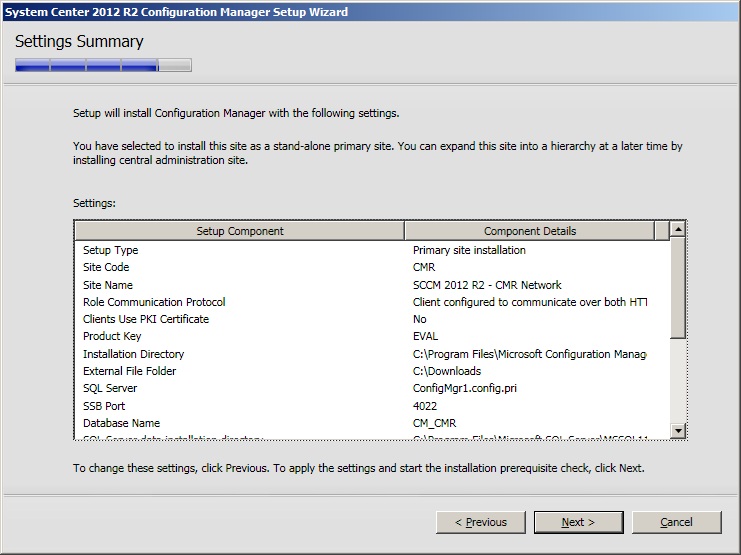

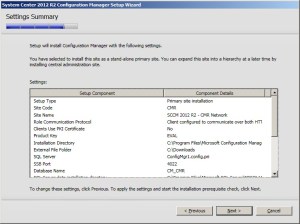

Click Next at the Summary screen.

R255

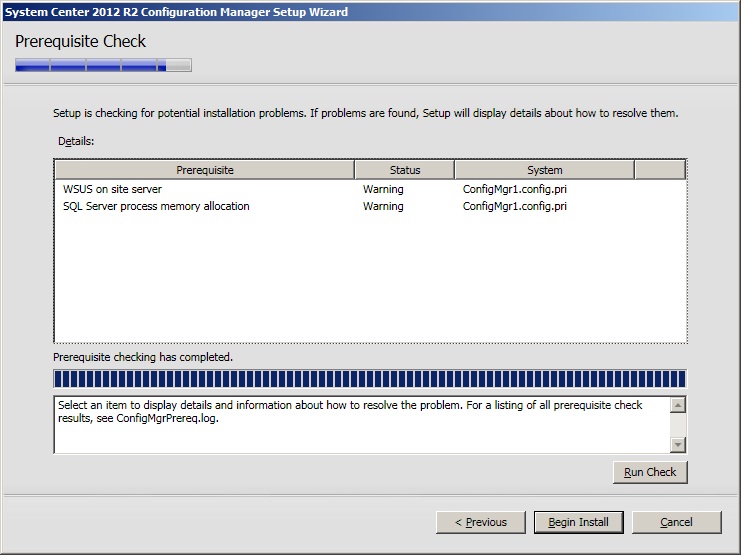

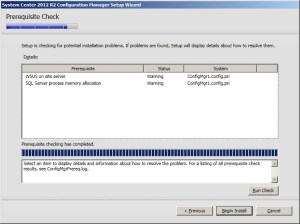

The following warnings can be ignored at the pre-req check screen. Click Begin Install.

R256

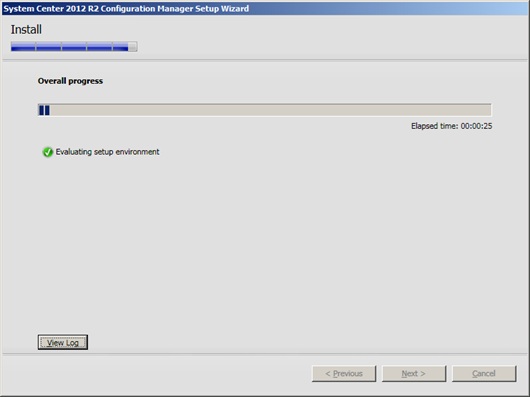

SCCM will begin the installation.

R257

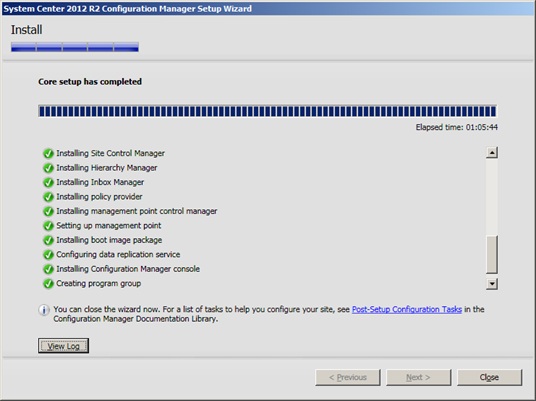

Click close when complete.

R258

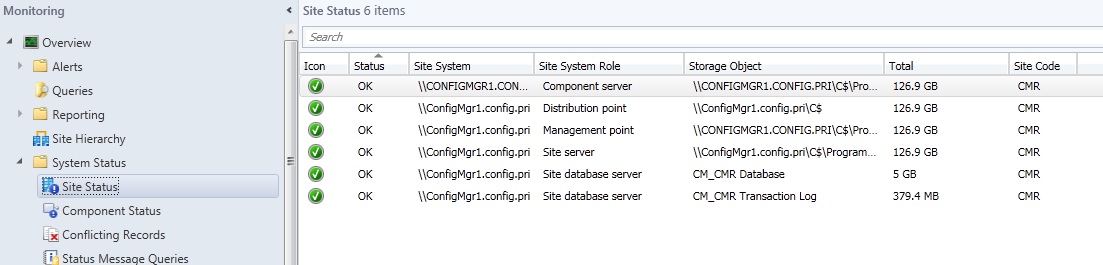

Launch the SCCM Console. Ensure the site and database report as healthy in the Monitoring workspace under System Status>Site Status

R2459
