With Windows 10 Autopilot in its infancy, here’s a quick overview on how you can push out the Office 365 Intune app to your Autopilot configured devices.

To get you started, here is a list of the things you will need to be able to replicate this blog post:

  • 1 x Windows 10 1703 VM with Internet access
  • Admin rights to the Azure portal
  • Intune account with users configured for deployment
  • Admin rights on the Windows Store for Business
  • An Azure AD premium P1 or P2 subscription

Setting up devices for Autopilot

First up, we will need to get some information from our Windows 10 device, this means that the device will need to be built with an OS in place. Once we have the device info we then need to rebuild. You could be at the first Windows OOBE screen and then press Shift+F10 to bring up a CMD prompt and get the required information.

We need to collect some information for the Autopilot process and the three commands we need to run to collate the data are:

wmic bios get serialnumber
Get-ItemPropertyValue "hklm:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\DefaultProductKey\" "ProductId"
$wmi = Get-WMIObject -Namespace root/cimv2/mdm/dmmap -Class MDM_DevDetail_Ext01 -Filter "InstanceID='Ext' AND ParentID='./DevDetail'"$wmi.DeviceHardwareData | Out-File "($env:COMPUTERNAME).txt"

We then need to put the resultant information into a .csv file that can be uploaded to the Windows Store for Business.

The following format is needed for the resultant data:

Device Serial Number,Windows Product ID,Hardware Hash
9695-7543-8434-9503-5022-9771-82,00330-80000-00000-AA342,T0GoAQEAHAAAAAoA4wHXOgAACgCetetc

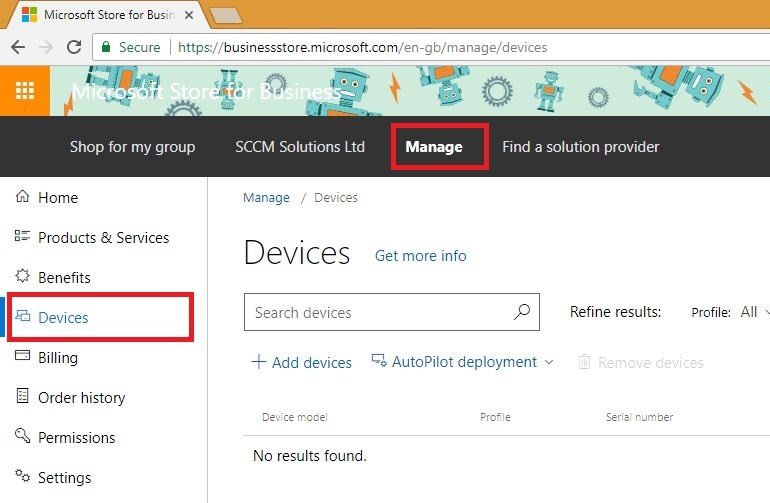

Go to the Windows Store for Business portal and log in. Then click Manage\Devices

2017-08-28 16_52_12-Microsoft Store for Business.jpg

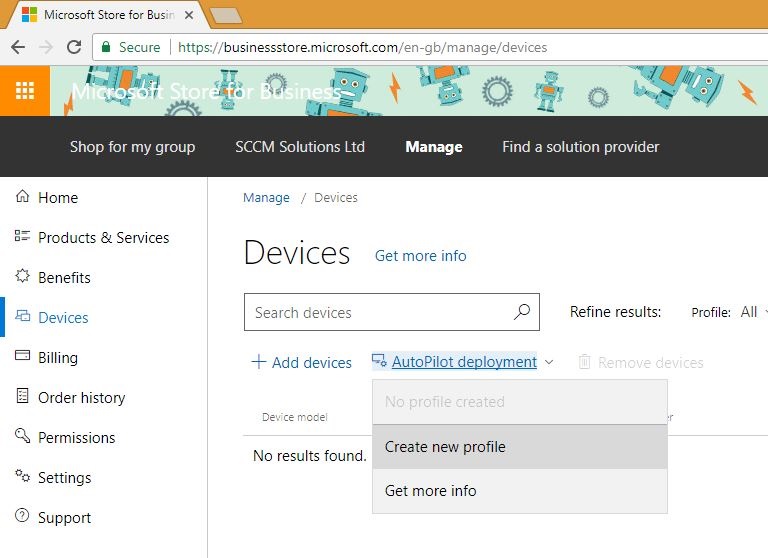

Click the AutoPilot deployment drop down and choose Create New Profile

2017-08-28 16_55_19-Microsoft Store for Business.jpg

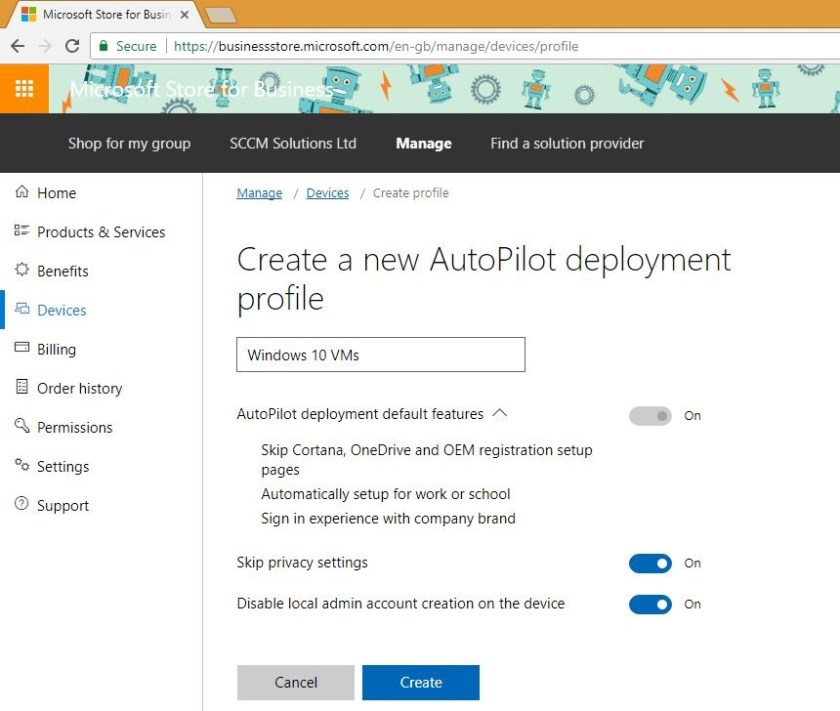

Enable Skip Privacy Settings and Disable local admin account creation on the device. Then click Create.

2017-08-28 16_57_11-Microsoft Store for Business.jpg

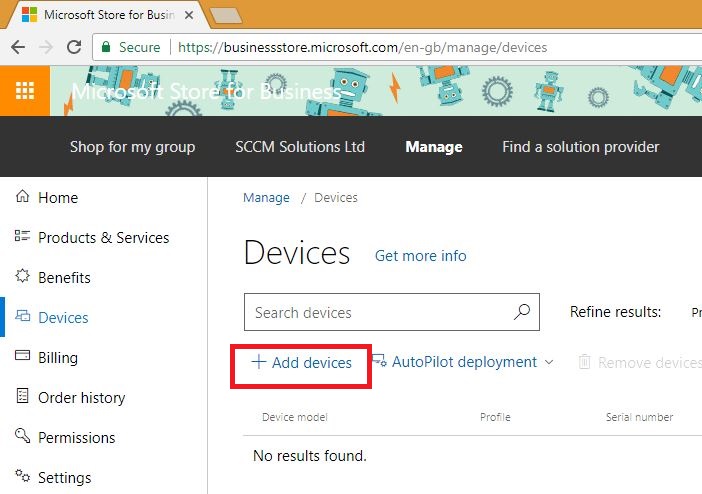

Next we need to import the device or devices from the csv file that we created. To do this click the Add Devices link.

2017-08-28 17_01_53-Microsoft Store for Business.jpg

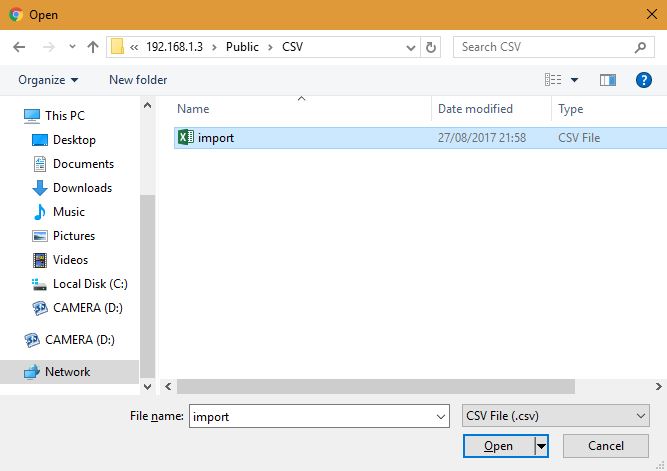

Select the csv file for import.

2017-08-28 17_02_56-Open.jpg

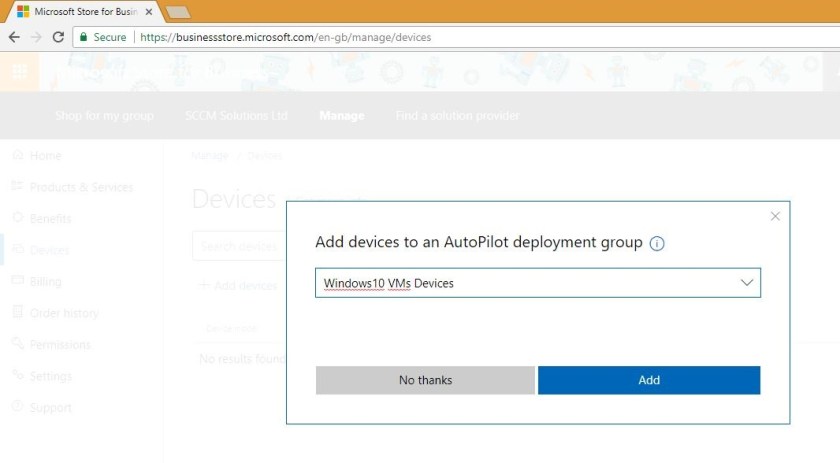

We need to add in a relevant name for the group of devices we are importing.

2017-08-28 17_03_45-Microsoft Store for Business.jpg

Notice that the devices are being imported and you have to wait for this process to complete.

2017-08-28 17_04_52-Microsoft Store for Business.jpg

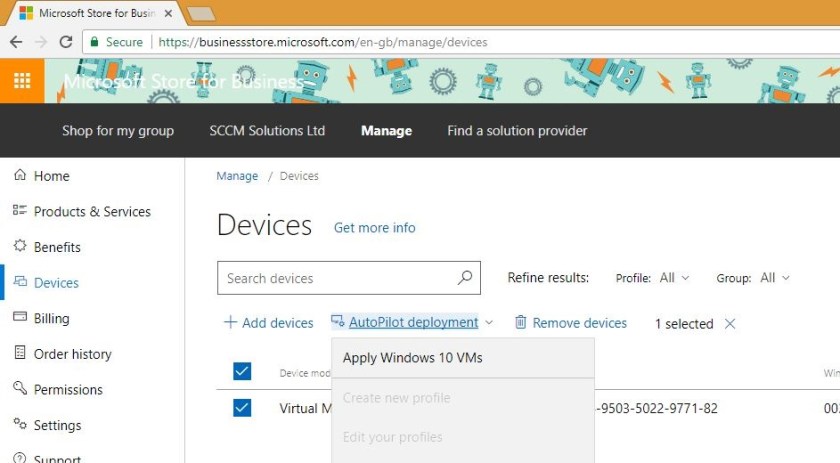

With the device/s imported, the next step is to assign the Autopilot profile to the device. Select the device/s and click the Autopilot deployment drop down and choose your profile. Once again, you will be informed that the request is being processed.

2017-08-28 17_07_02-Microsoft Store for Business.jpg

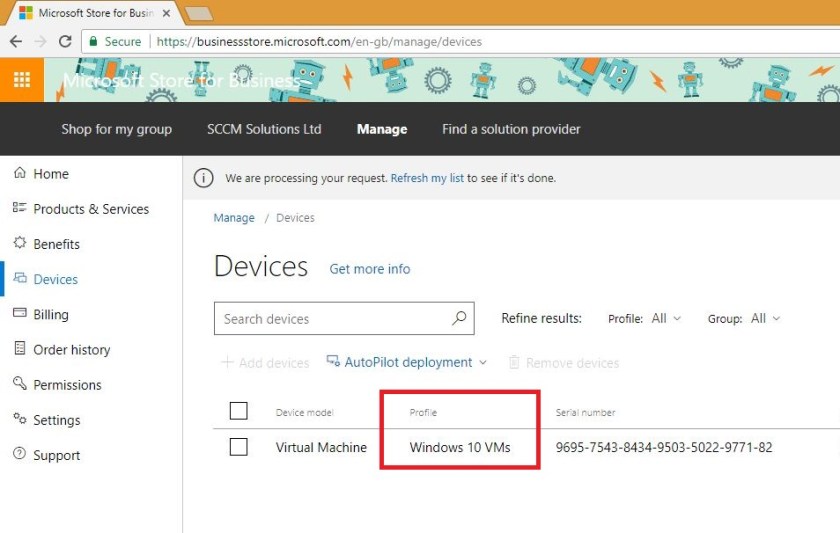

Once the profile has applied, you will see it assigned against against the device.

2017-08-29 20_09_25-Microsoft Store for Business.jpg

Creating your Office 365 deployment

Log into your Azure portal with an admin account.

First up, we are going to create a user based group that can be used to assign our Office 365 application to.

Navigate to Azure Active Directory\Users and Groups\All Groups. Click New Group.

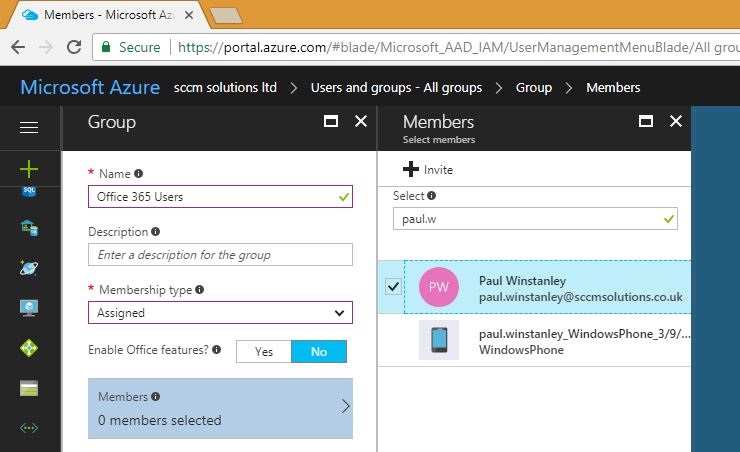

Enter a name for the group, set the Membership type to Assigned and select the members for the group. Once done click Create.

2017-08-28 17_17_22-Members - Microsoft Azure.jpg

You will be informed that the group is created.

2017-08-28 17_19_05-Group - Microsoft Azure.jpg

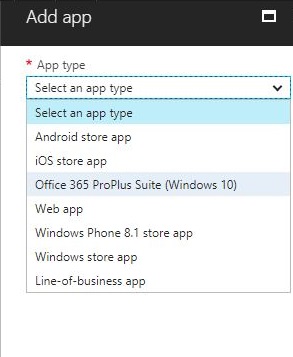

Next navigate to Intune\Mobile App\Apps and click Add. From the App type drop down choose the Office 365 ProPlus Suite (Windows 10) option.

2017-08-28 17_21_12-Add app - Microsoft Azure.jpg

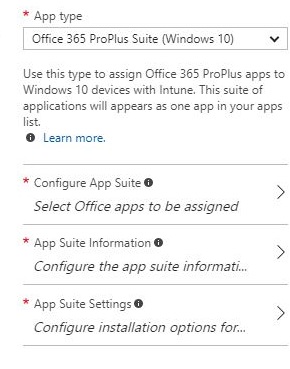

We must now specify particular settings specific to your Office 365 needs, but here is a basic run through.

2017-08-28 17_22_24-Add app - Microsoft Azure.jpg

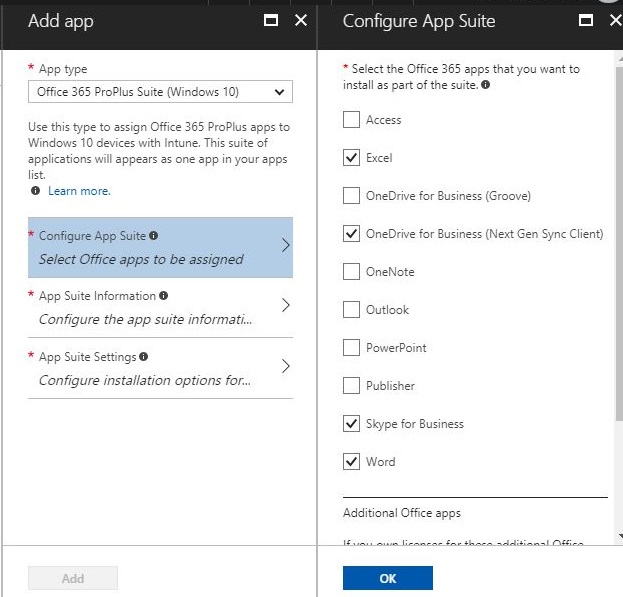

From Configure App Suite option choose the apps what you want as part of your Office 365 install. Click OK to confirm:

2017-08-28 17_24_44-Configure App Suite - Microsoft Azure.jpg

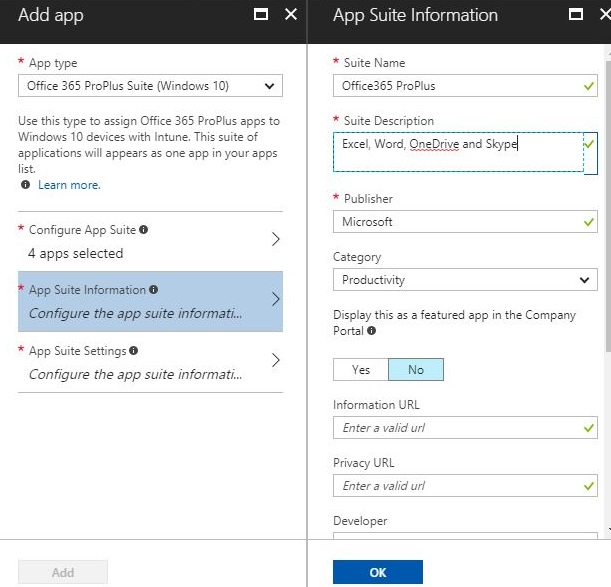

From the App Suite information option, enter any relevant information. I have just entered a Suite Name and Suite Description for the app. Click OK to confirm:

2017-08-28 17_30_31-App Suite Information - Microsoft Azure.jpg

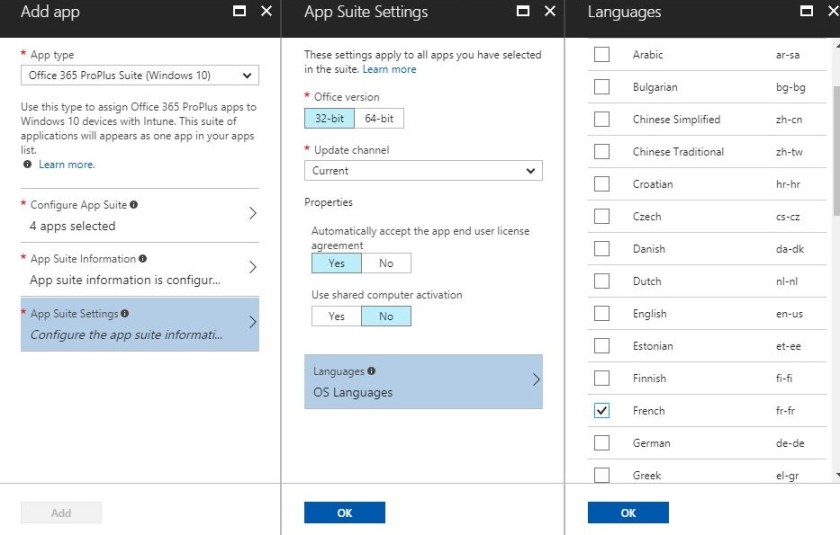

From the App Suite Settings option, enter the Office version, update channel, whether to accept the EULA and if shared computer activation is required. You can also add in extra languages, I have opted to also install the French language for Office 365. Click OK and then click Add to create the app.

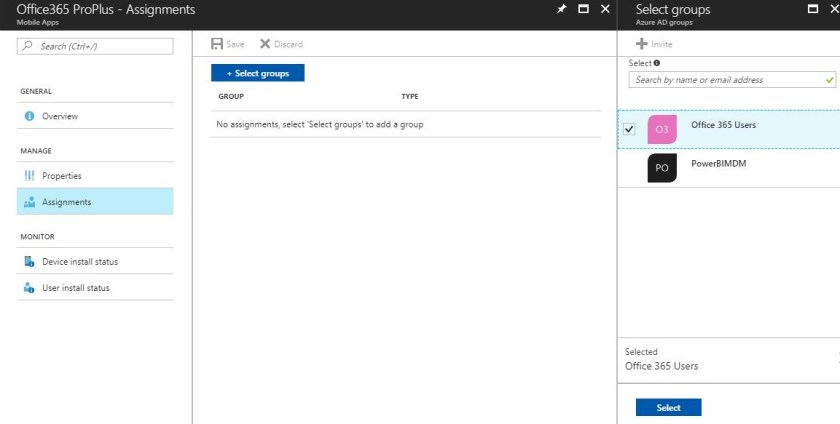

2017-08-28 17_32_12-Languages - Microsoft Azure.jpgWith the app created, we can assign this the user group we created earlier. Click Assignments and then choose Select Groups. Select the group you created and choose Select.

2017-08-28 17_36_07-Select groups - Microsoft Azure.jpg

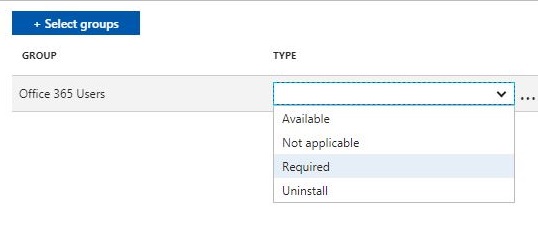

Next set the type as Required and Save.

2017-08-28 17_38_17-Assign - Microsoft Azure.jpg

Autopilot in action and our Office 365 install

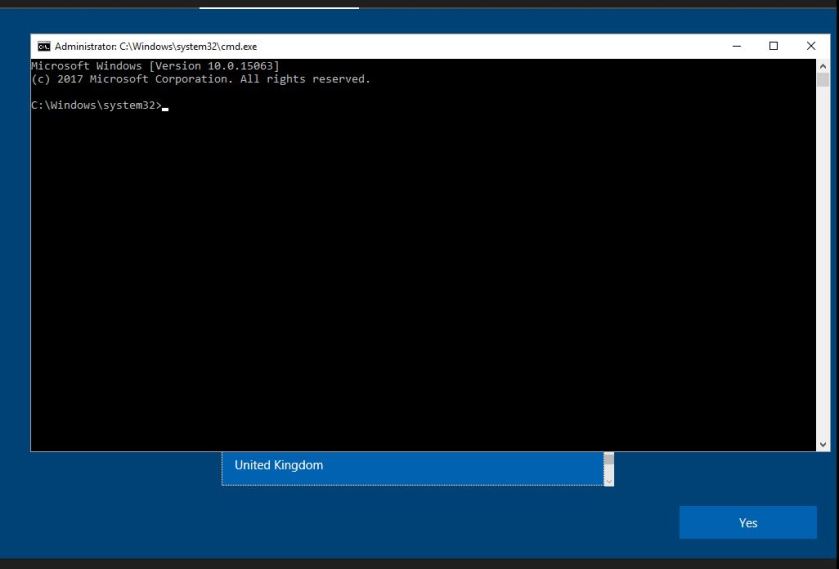

With the Windows 10 1703 device in OOBE, we are prompted to select the region of the device. As mentioned before you can press Shift+F10 and collect the data for Autopilot at this stage.


If we already have the information then we can choose the region for the device and click Yes.

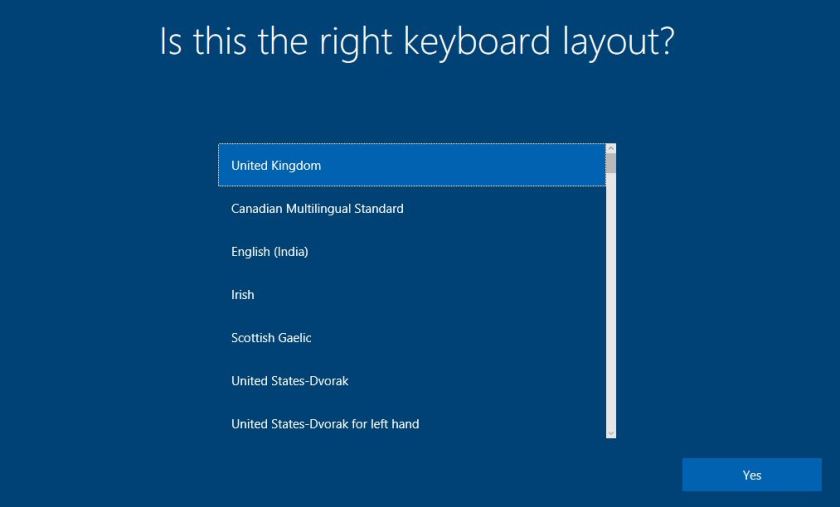

Next up, select the keyboard layout and confirm with Yes.

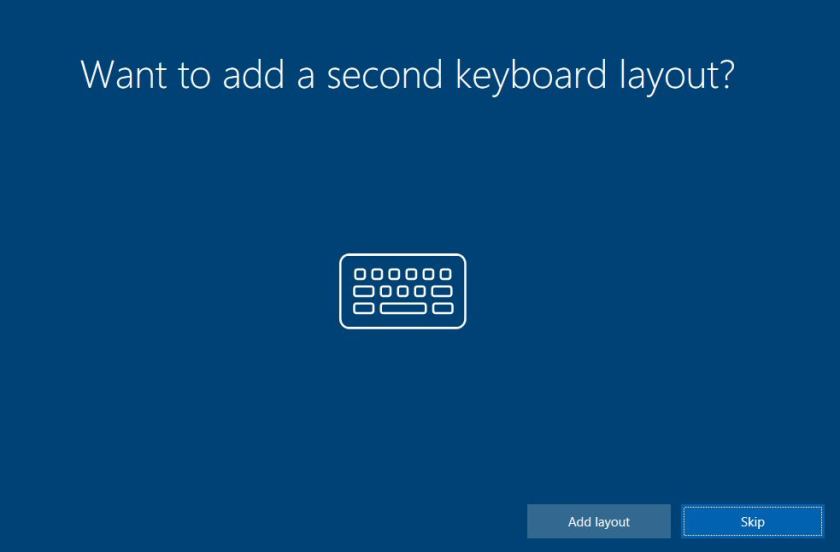

You can choose to add a second keyboard layout or skip. Choose accordingly.

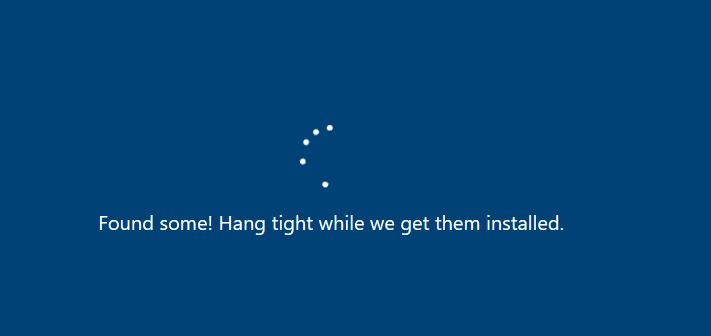

You’ll be informed that some updates have been found.

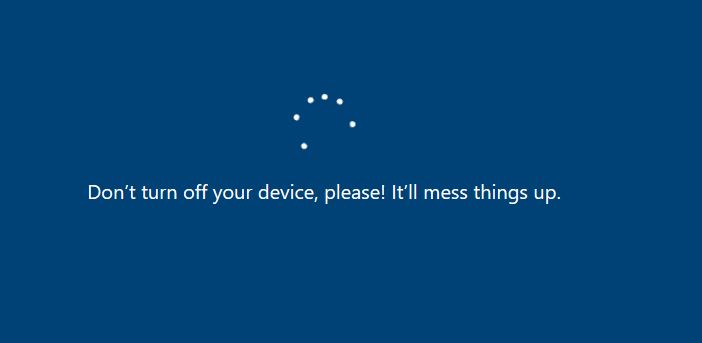

and not to turn off your device!

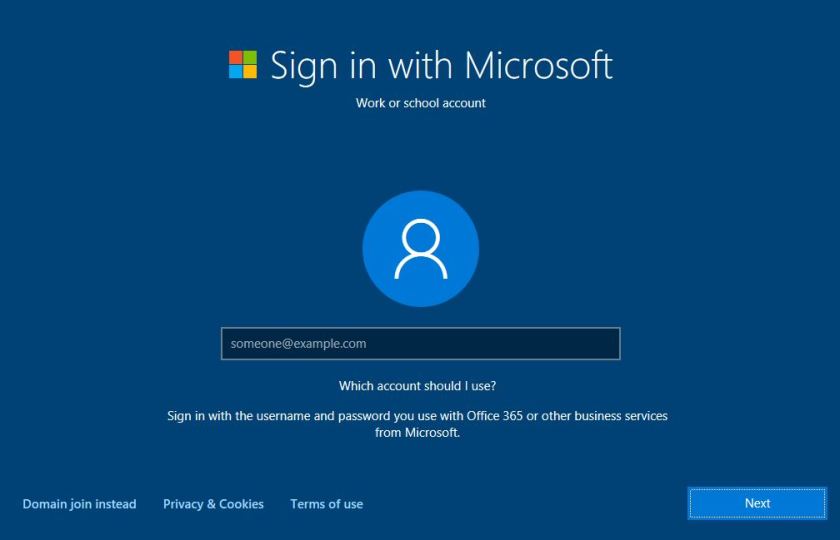

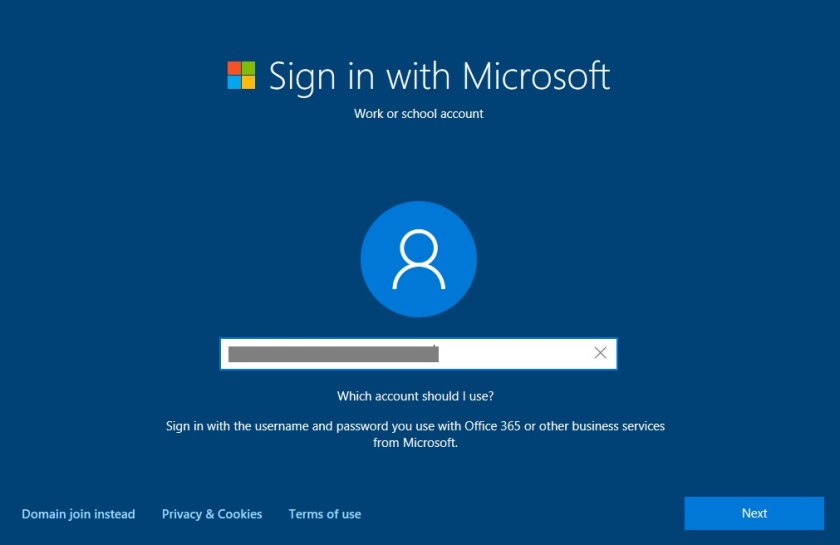

After a restart, you will be presented with your work login, I am going to log in with the account I have set up as the user in my Office 365 group. Click Next. Enter the password when prompted.

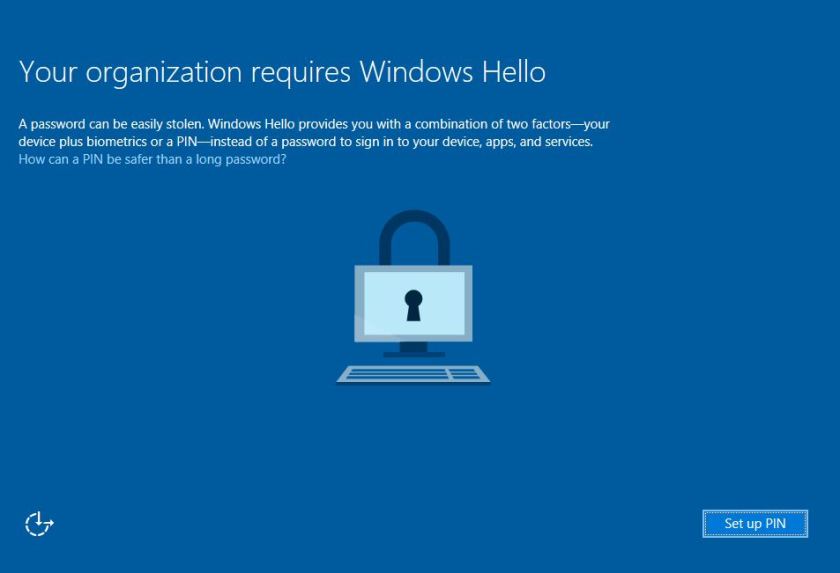

Set up Windows Hello accordingly.

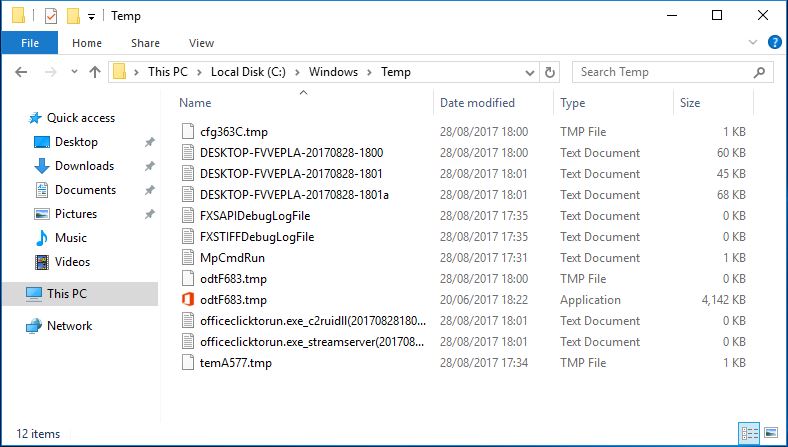

When logged in, you’ll notice some Office 365 activity in your Windows\Temp folder

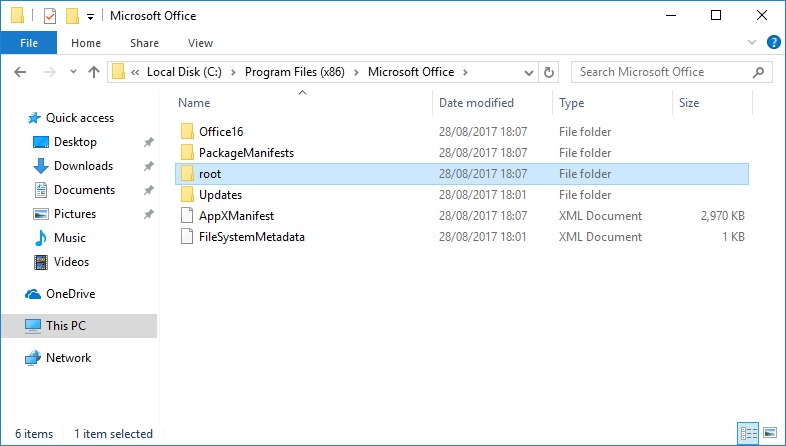

You’ll also notice the Office folder start to populate.

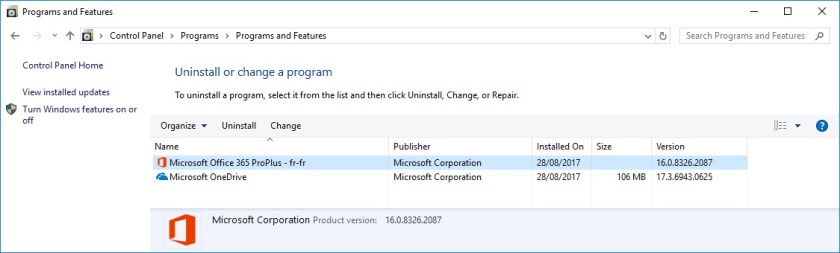

and pretty soon you’ll have access to the Office  365 apps you selected for install.



Job done!
