Whilst ConfigMgr 2012 does not officially support the installation of Windows 10 via OSD it can still be used to deploy the OS.

Download the latest technical preview from the Microsoft website here. I will be installing the x64 release in this blog post.

Add the Operating System Image

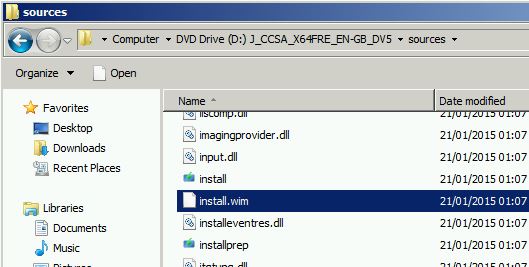

Copy the install.wim file from the ISO’s source folder.

Win10Build9926-001

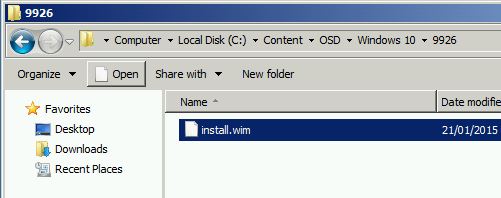

Paste into your source location for OSD content.

Win10Build9926-002

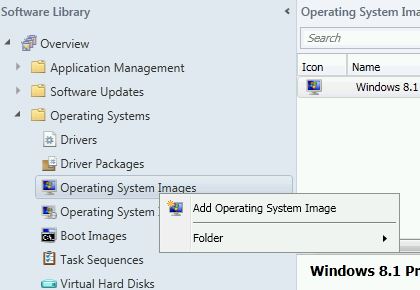

In the ConfigMgr console go to the Software Library workspace. Under the Operating Systems>Operating Systems Images node, right click and choose ‘Add Operating System Image’.

Win10Build9926-003

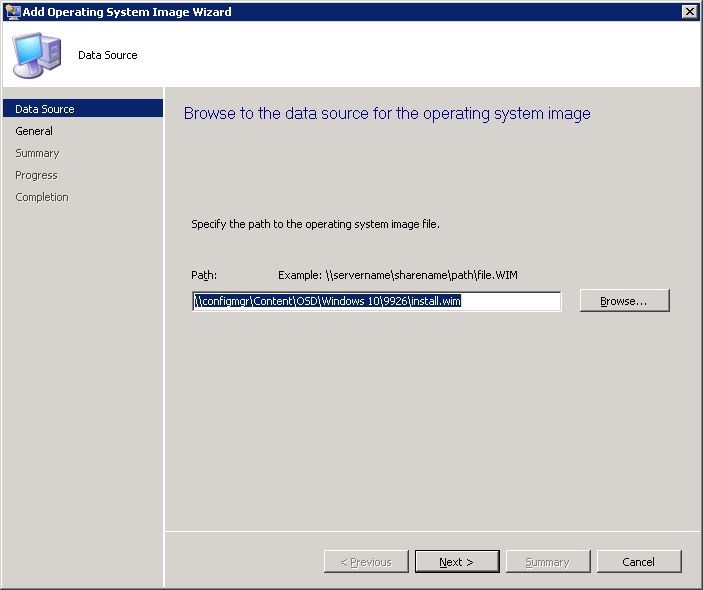

Browse to the location of the install.wim file in your content location folder. Click Next.

Win10Build9926-004

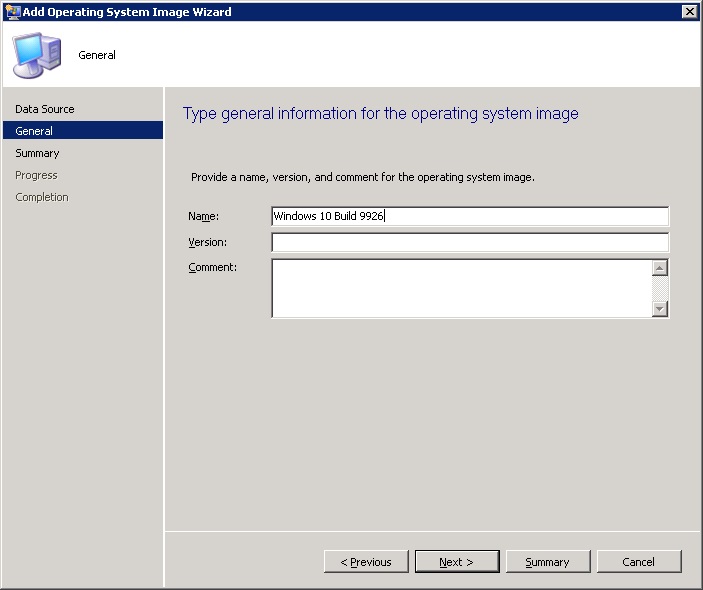

Enter a name for the OS image and click Next.

Win10Build9926-005

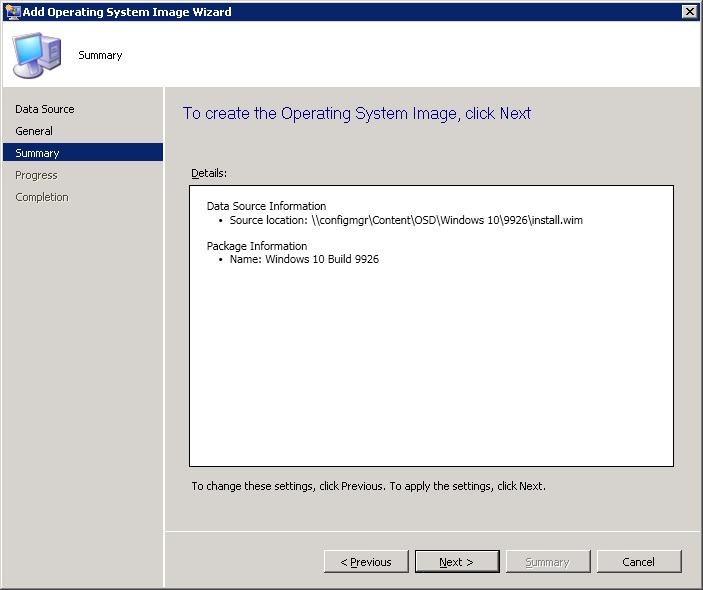

Click Next at the Summary screen.

Win10Build9926-006

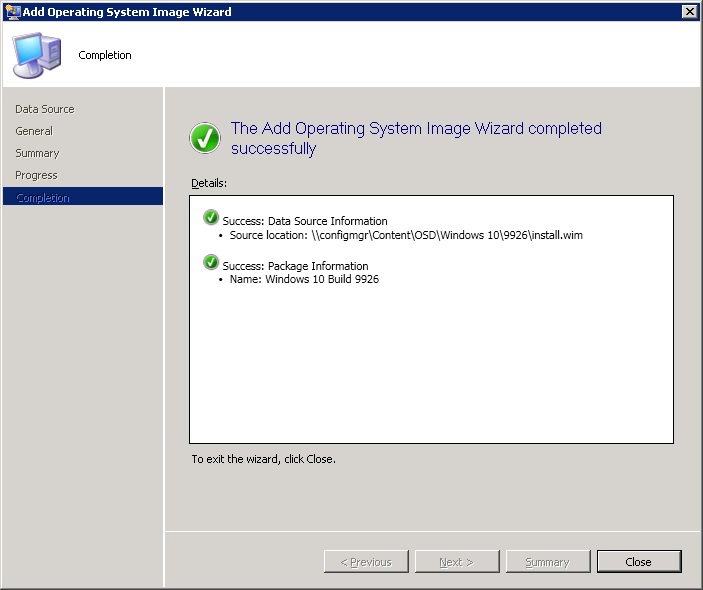

Click Close to complete the wizard.

Win10Build9926-007

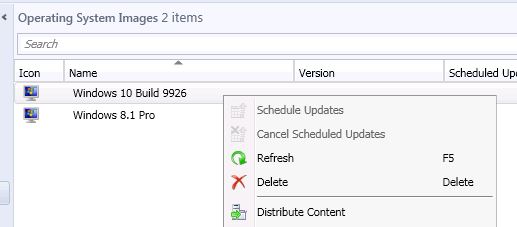

Right click the new image and Distribute Content.

Win10Build9926-008

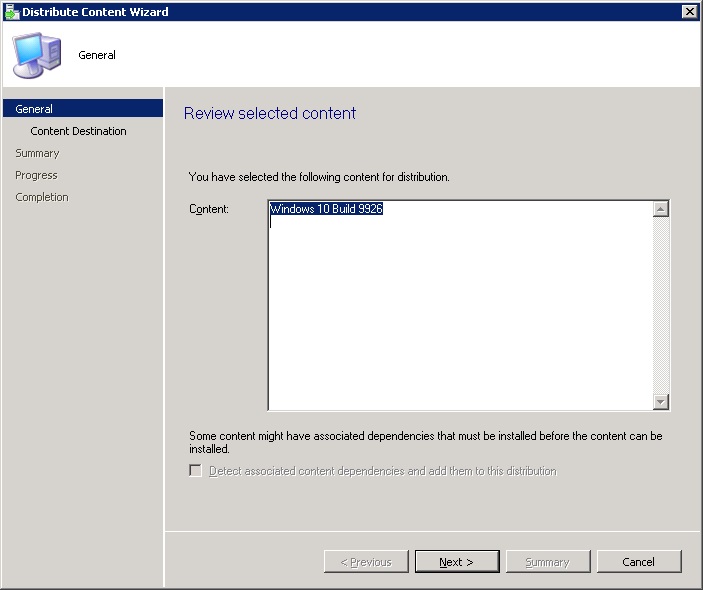

Click Next.

Win10Build9926-009

Click Add and choose Distribution Point.

Win10Build9926-010

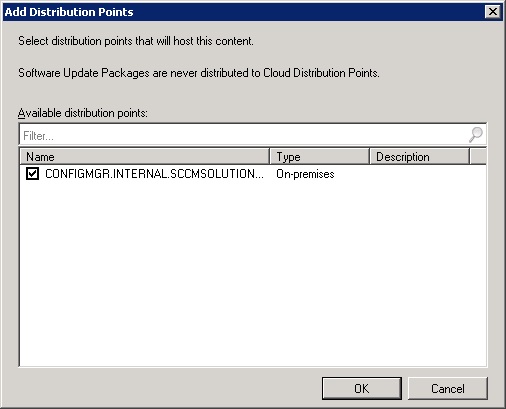

Select your Distribution Point to distribute the OS to. Click Ok and then click Next.

Win10Build9926-011

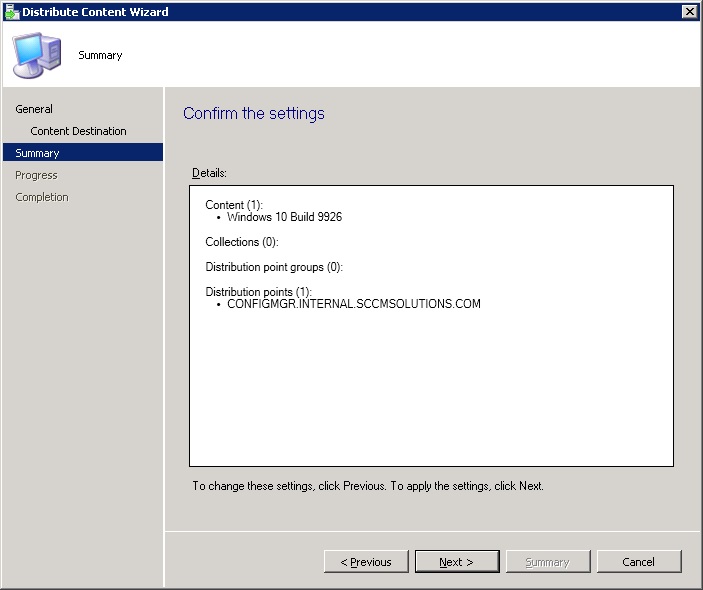

Click Next at the Summary screen.

Win10Build9926-012

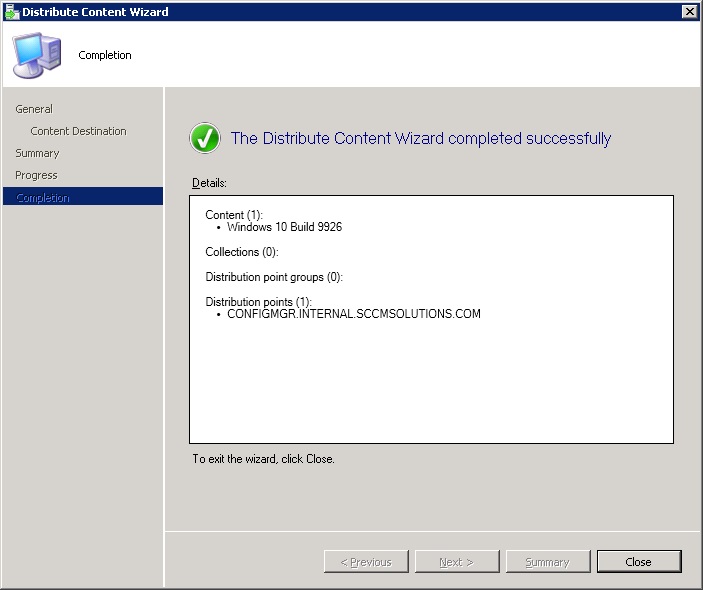

Click Close to complete the wizard.

Win10Build9926-013

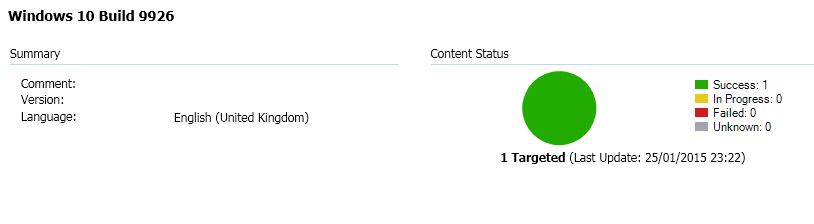

Ensure that the image distributes successfully. Keep an eye on the distmgr.log file or check the content status in the console.

Win10Build9926-014

Create the Task Sequence

Now it’s time to create the Task Sequence to deploy the Windows 10 preview.

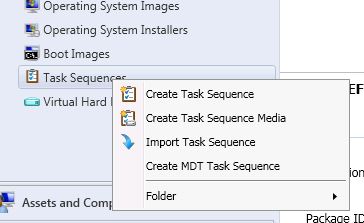

Right click the Task Sequence node and choose Create Task Sequence.

Win10Build9926-016

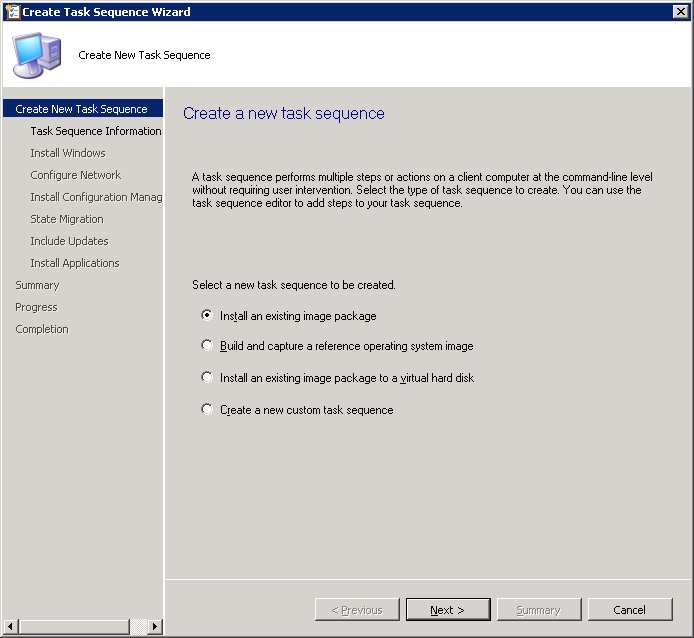

Choose ‘Install an existing image package.’ and click Next.

Win10Build9926-017

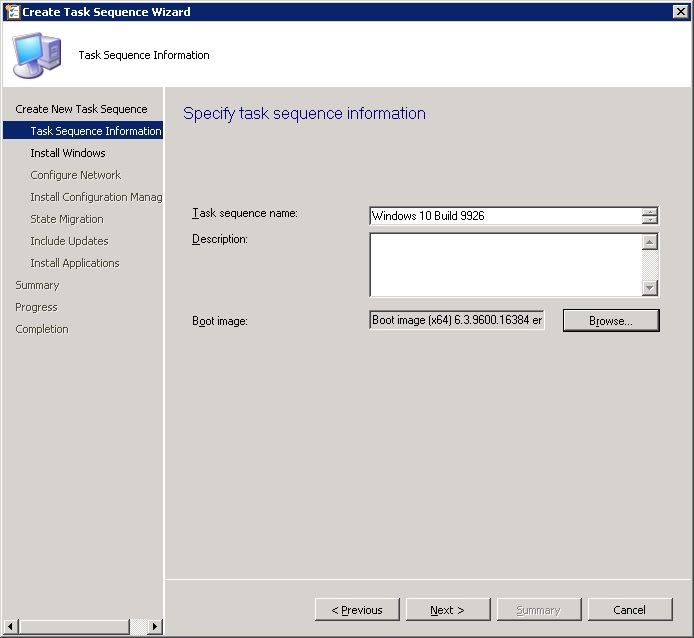

Enter a name for the Task Sequence and choose a boot image to use with the TS.

Win10Build9926-018

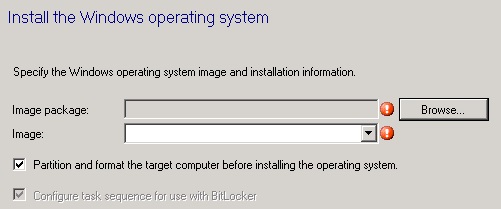

Select the Browse button to choose the Windows 10 package.

Win10Build9926-019

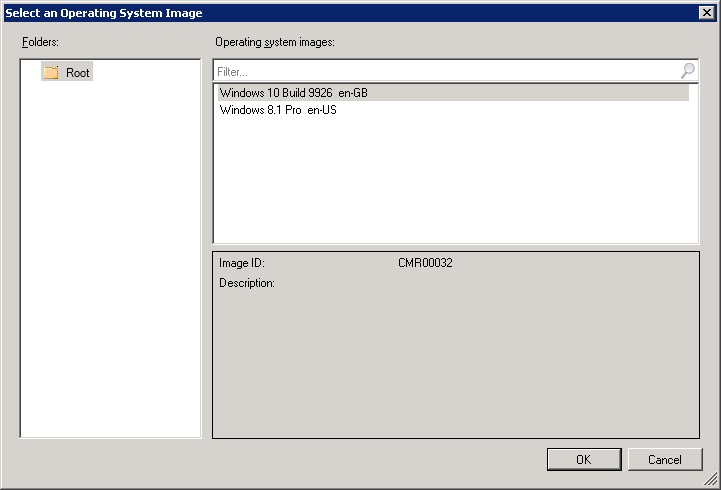

Choose the Windows 10 package and click Ok.

Win10Build9926-020

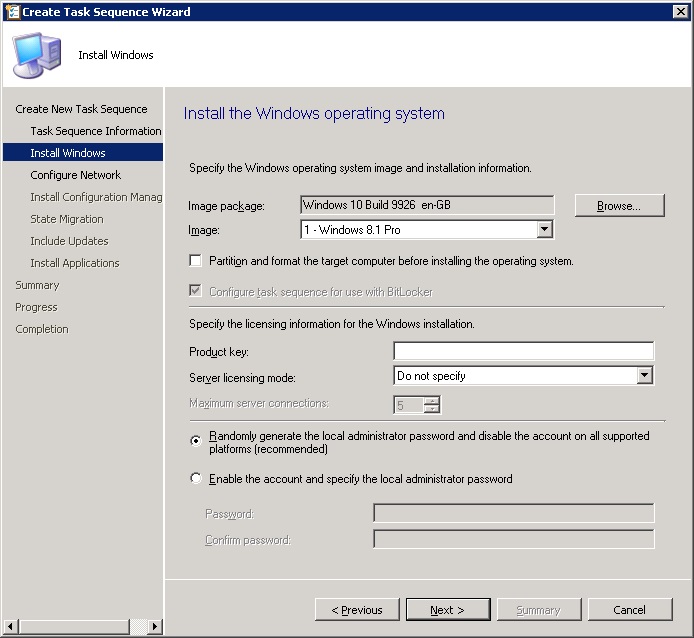

From the drop down menu select Windows 8.1 Pro and click Next.

Win10Build9926-021

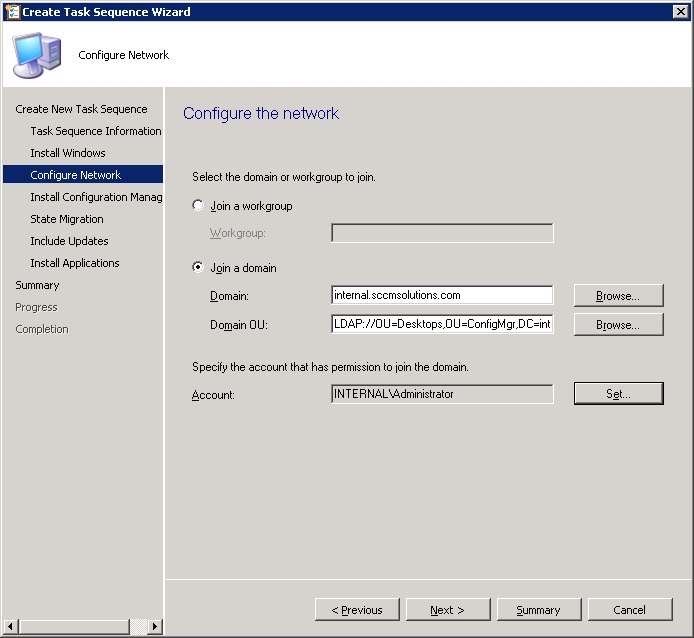

Enter the Domain Join information and click Next.

Win10Build9926-022

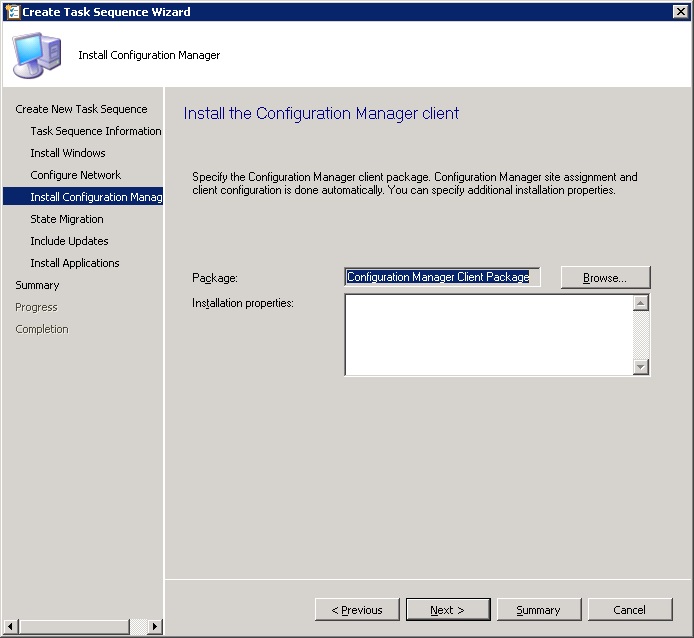

Add your ConfigMgr package and any installation switches and click Next.

Win10Build9926-023

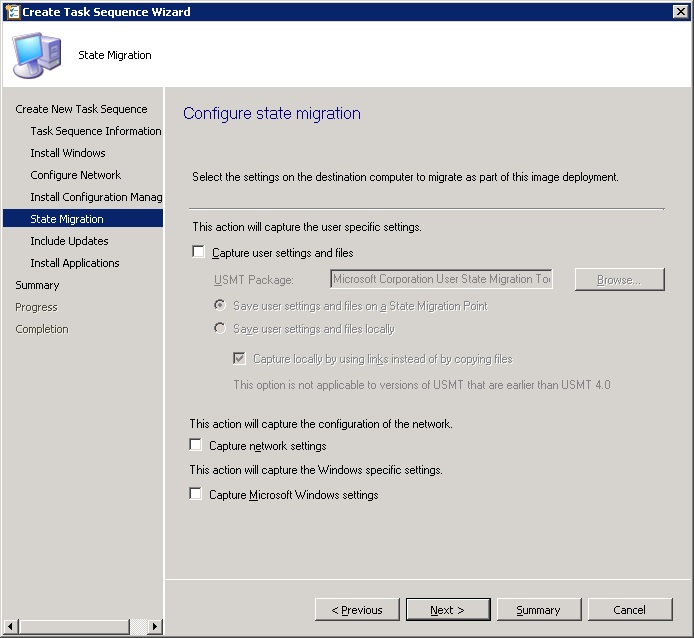

Since this will be a fresh installation no State Migration information is required therefore uncheck and click Next.

Win10Build9926-024

No updates will be installed for this build and no applications will be installed either so click through to the end of the wizard.

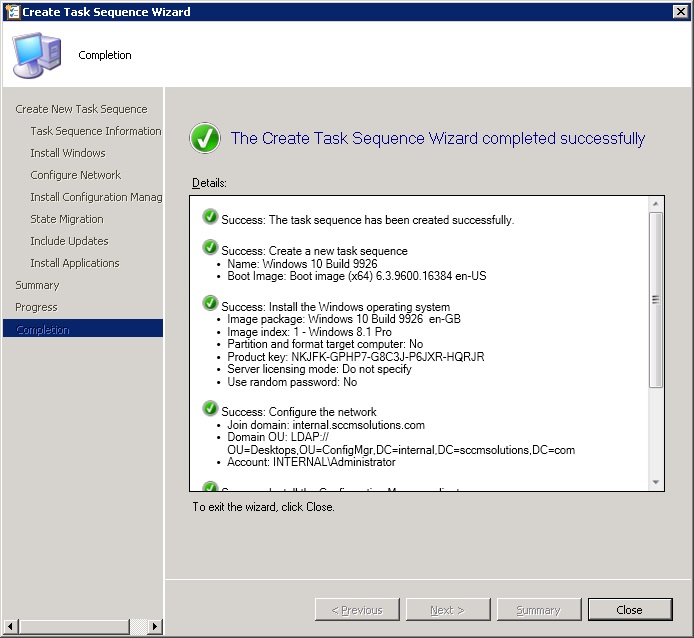

Click Close at the end of the wizard to complete.

Win10Build9926-025

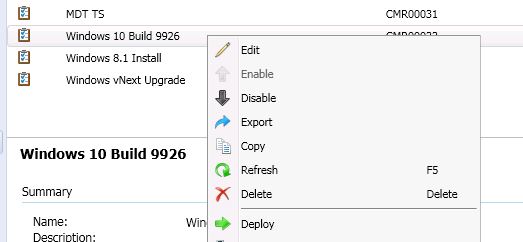

Right click the new Task Sequence and choose Deploy.

Win10Build9926-026

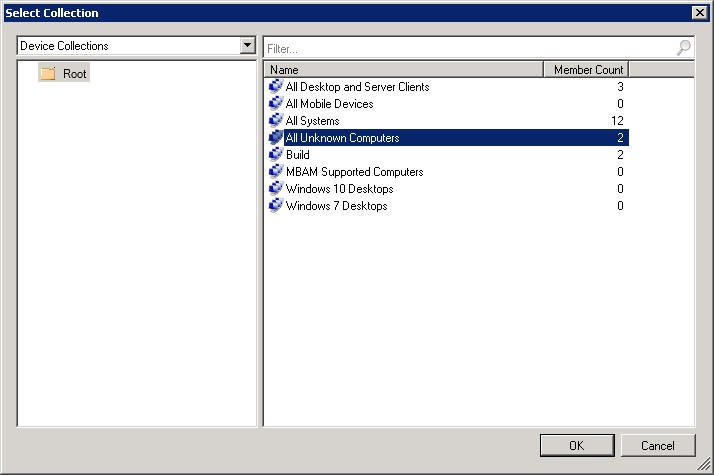

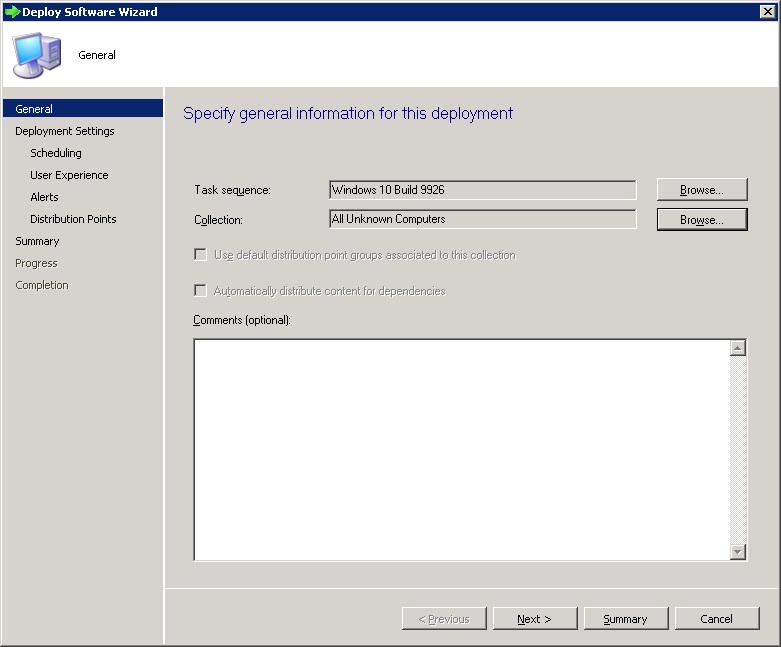

Click the Browse button next to Collections. Select a Collection to deploy the Task Sequence to, in this instance ‘All Unknown Computers’. Click Ok. Click Next.

Win10Build9926-027

Win10Build9926-028

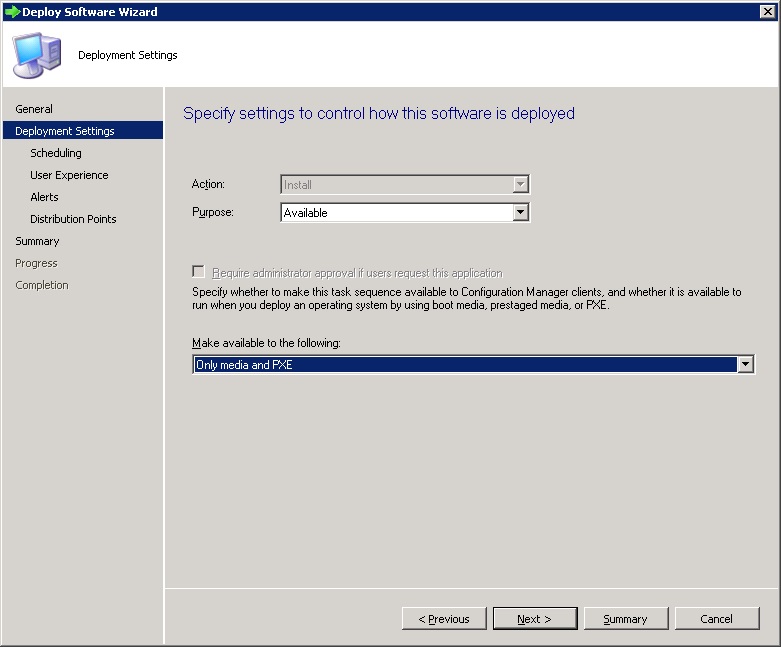

Make the TS available to media and PXE and click Next.

Win10Build9926-029

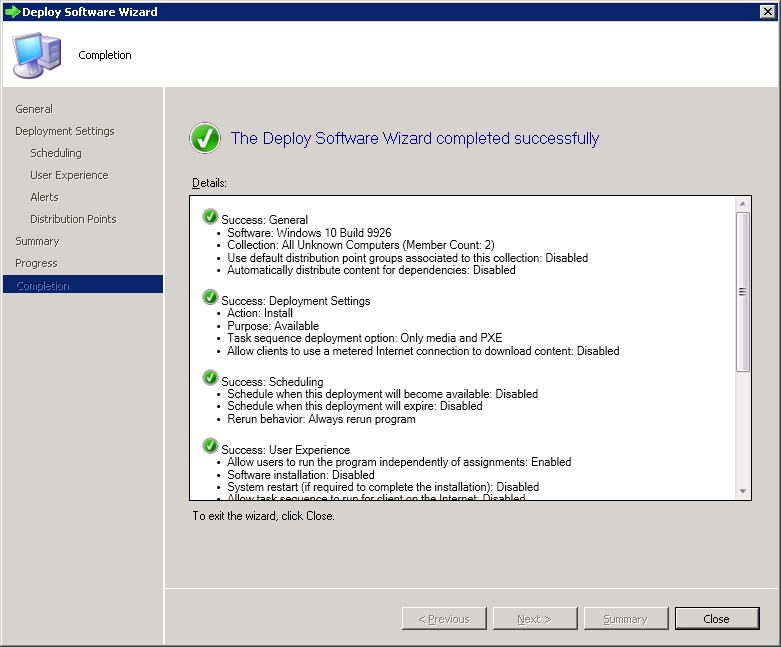

Click through to the end of the wizard and click Close to complete.

Win10Build9926-030

Build the Windows 10 Device

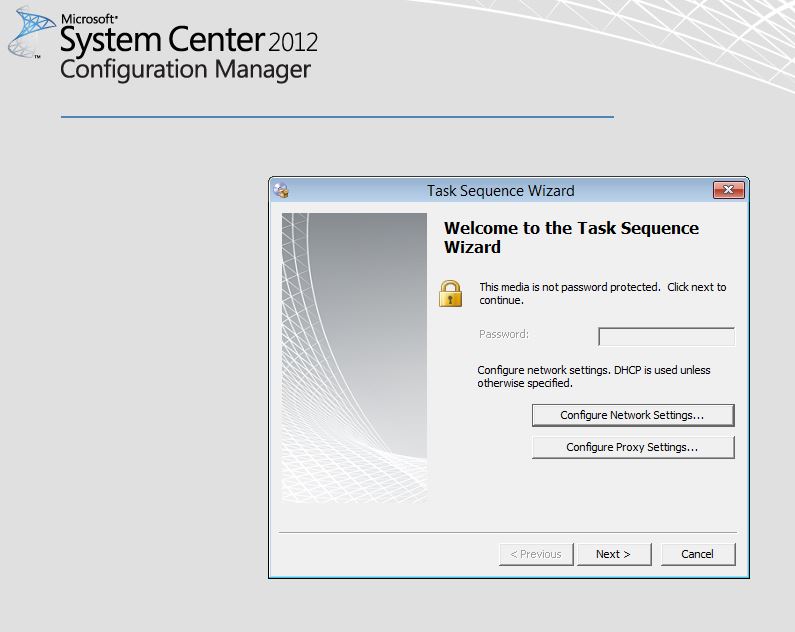

Boot with PXE or boot media and click Next at the ‘Welcome of the Task Sequence Wizard’ window.

Win10Build9926-031

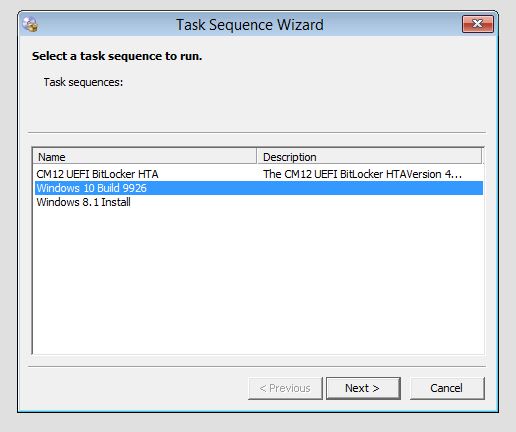

Select the Windows 10 Build 9926 Task Sequence and click Next.

Win10Build9926-032

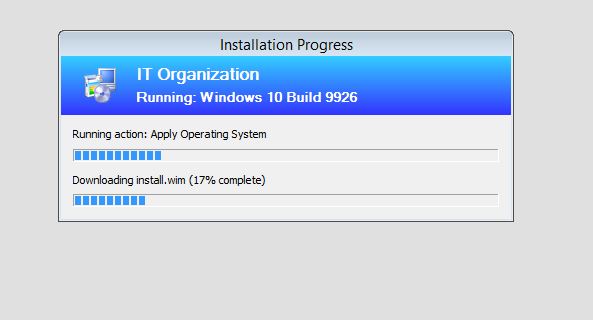

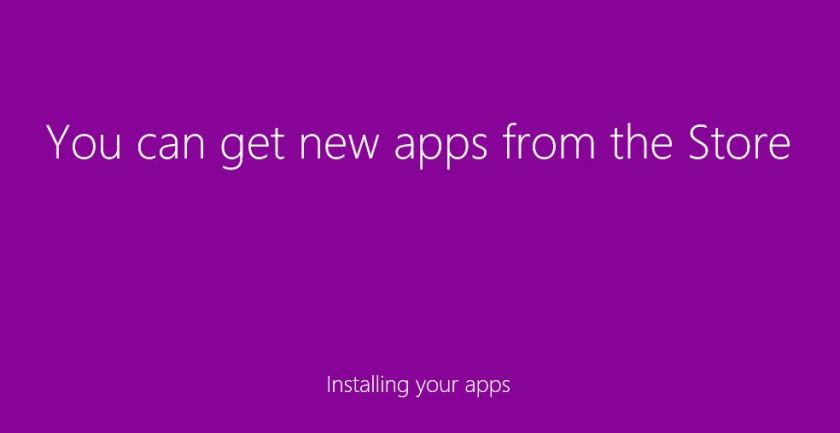

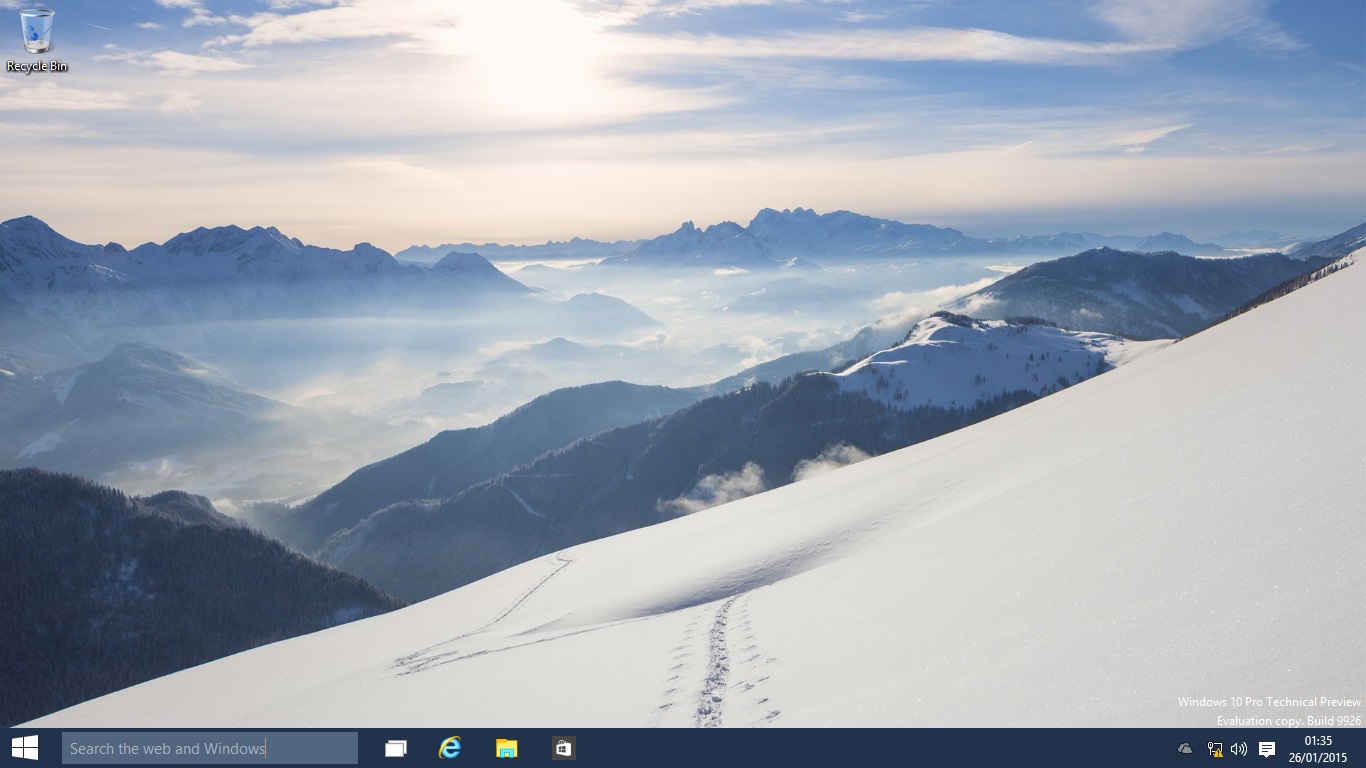

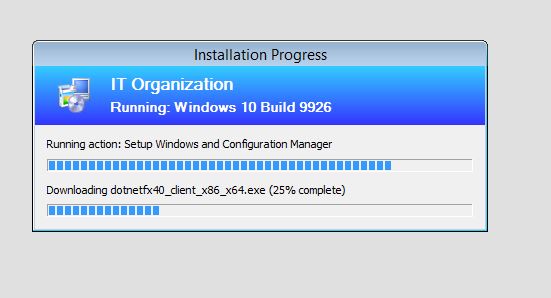

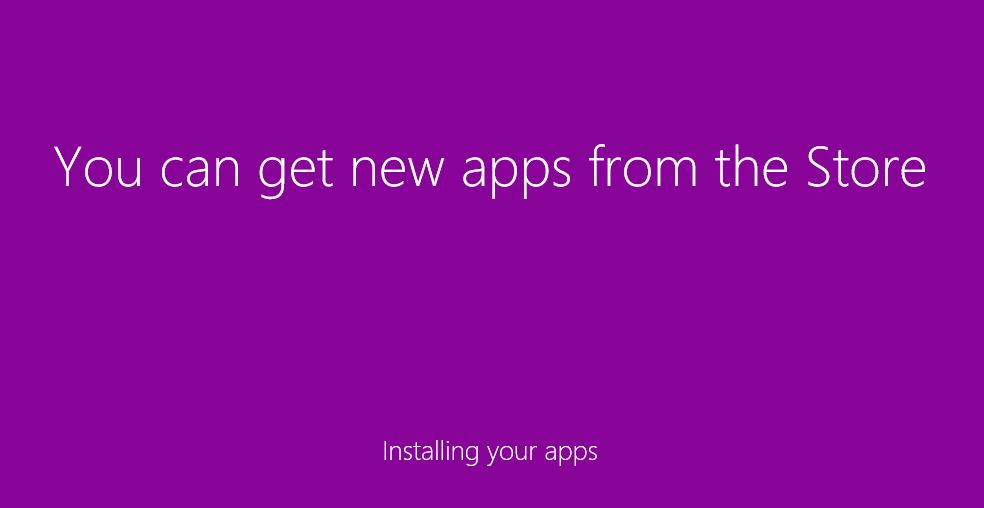

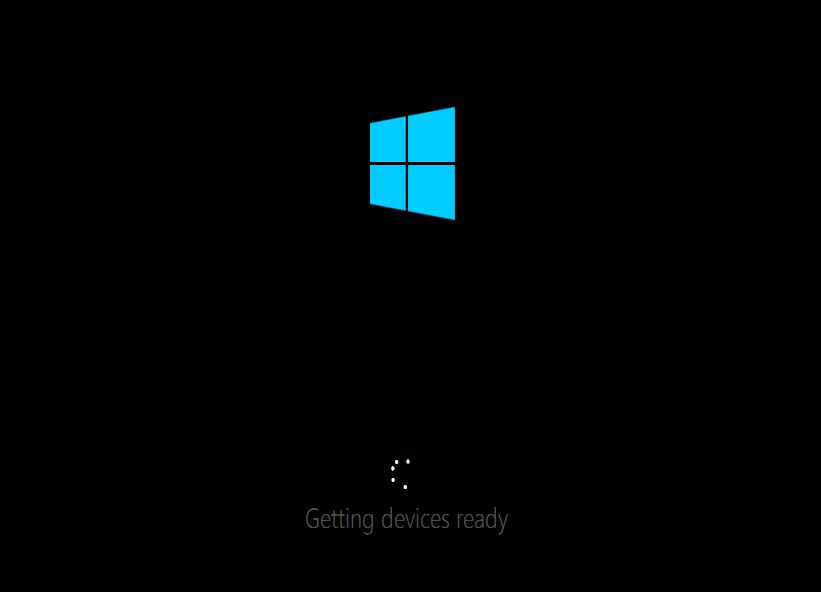

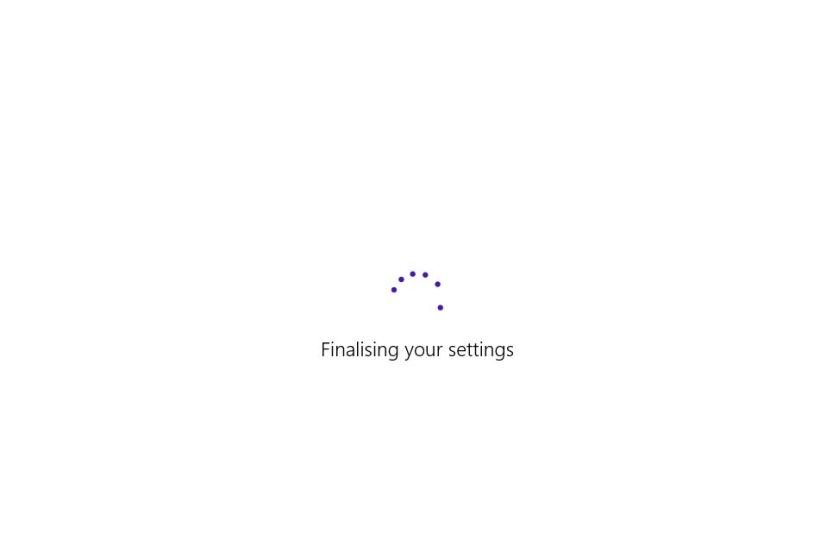

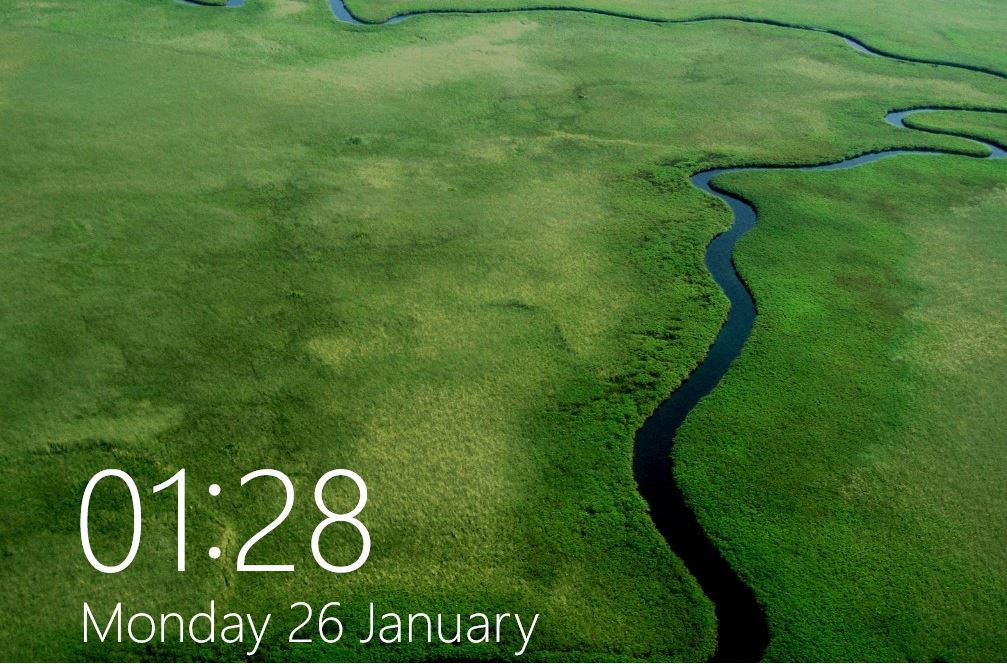

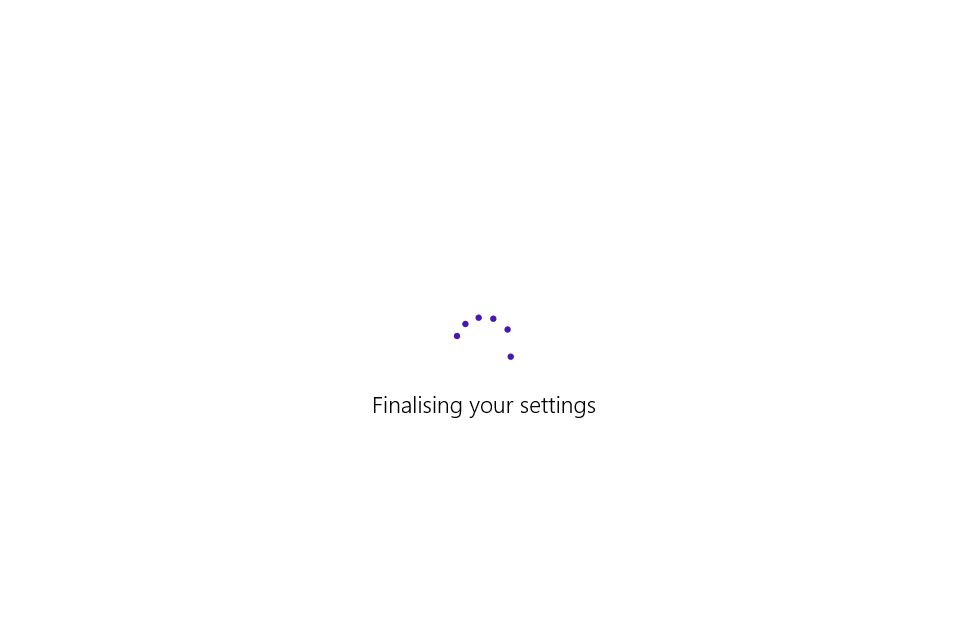

The install.wim will being to download and install and the Task Sequence will progress.

Win10Build9926-033

Win10Build9926-034

Win10Build9926-035

Win10Build9926-036

Win10Build9926-037

Win10Build9926-038

Win10Build9926-039
