Parallels Mac Management for SCCM – Part 6 – Deploying Packages

In Part 1 of the Parallels Mac Management for SCCM series I installed the Parallels Configuration Manager Console Extension. I installed this on my site server ‘ConfigMgr’.

Part 2 focused on the installation of the Parallels Proxy which I installed on a remote server called ‘Parallels’ which I intend to use to install the Parallels roles.

Part 3 of the series concluded the ‘role’ installation, namely the NetBoot Server and OS X Software Update Service.

Part 4 of the Parallels series focused on getting the Parallels Mac client onto a Mac OS X device.

Part 5 of the series showed you how to deploy an application down to a Mac OS X device, install it via the app portal and remove the application.

In Part 6 of the series I will show you how to deploy a package to a Mac OS X device. Since packages can be used with a Parallels Task Sequence, applications cannot, it is worth investing time in create packages so you can build up a cool and funky Task Sequence for your devices.

In this blog post I will show you how to install the OneDrive app on a Mac. The OneDrive app has been downloaded in .pkg format. Parallels Mac Management for SCCM also supports the .dmg and .iso formats for packages. These can be consumed by the package model native and they do not require any conversion as with the application model.

Creating the package

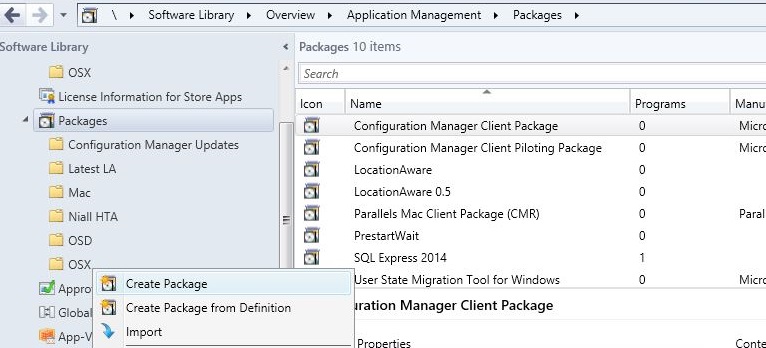

In the ConfigMgr console, go the usual location for creating a package, Software Library>Overview>Application Management>Packages. Right click and choose Create Package.

2017-04-01 17_14_55-Greenshot.jpg

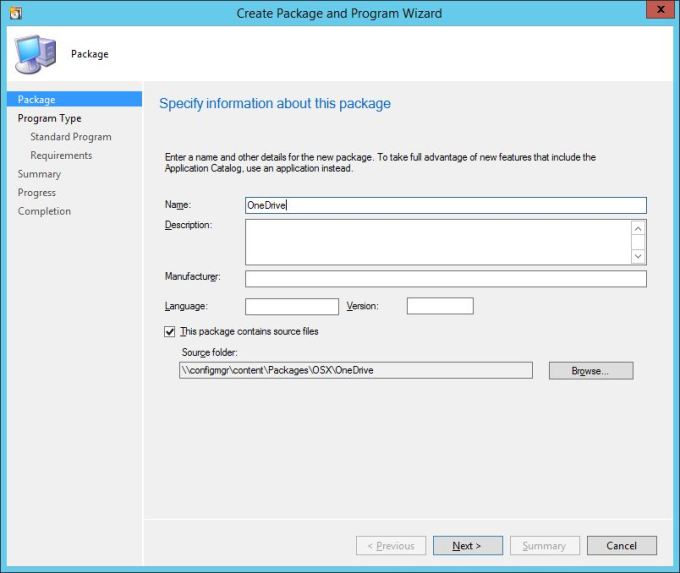

In the Create Package and Program Wizard locate your content and add a Name and any other information. Click Next.

2017-04-01 17_15_26-Create Package and Program Wizard.jpg

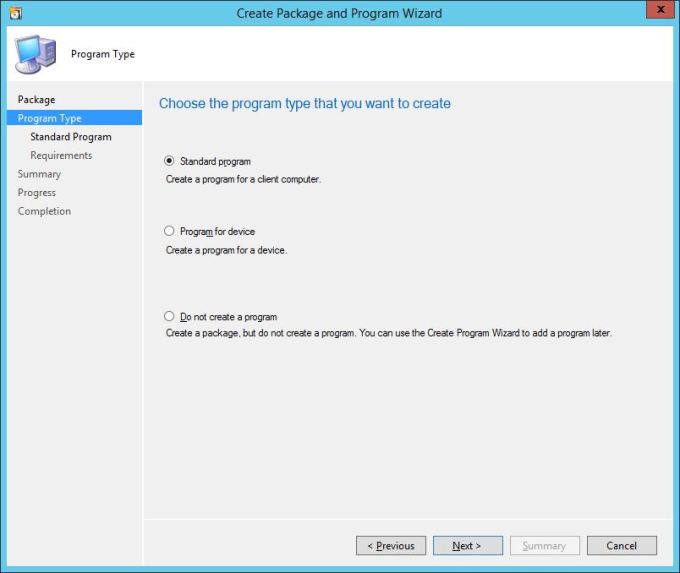

Create a Standard Program and click Next.

2017-04-01 17_15_30-Create Package and Program Wizard.jpg

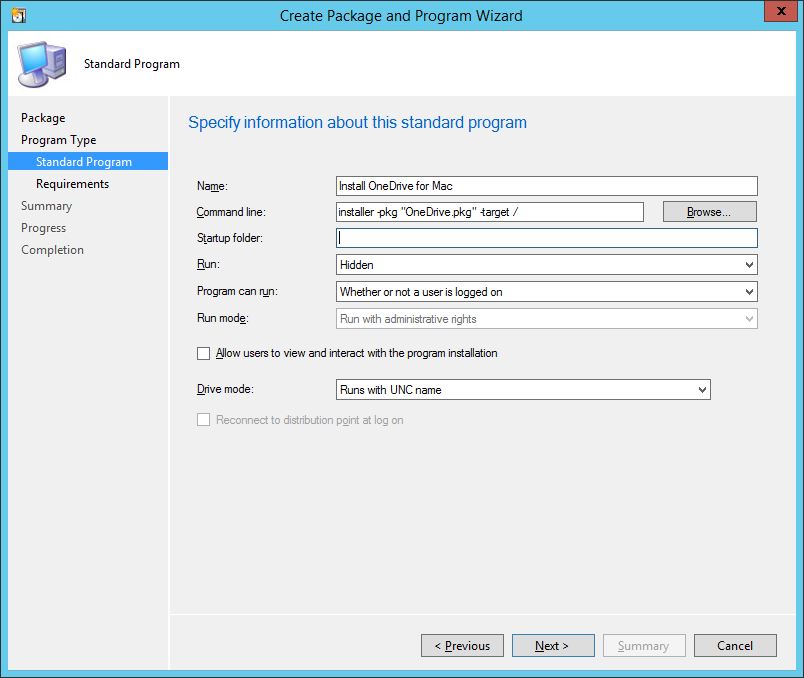

Enter details for the program.
The command line for a .pkg uses the following syntax

 installer -pkg "InstallMe.pkg" -target /

Note that the -target / will default to the Applications folder on the Mac.
When using a .dmg file the syntax is:


This extracts the .app file from the .dmg into the Applications folder.
The .iso format uses similar syntax to the .dmg


For further information on install packages it is worth reading the admin guide, the latest of which is available here.

With the command line set, enter the run behaviour and when a program can run etc. Click Next. Complete the wizard as appropriate.

2017-04-01 17_18_17-Create Package and Program Wizard.jpg

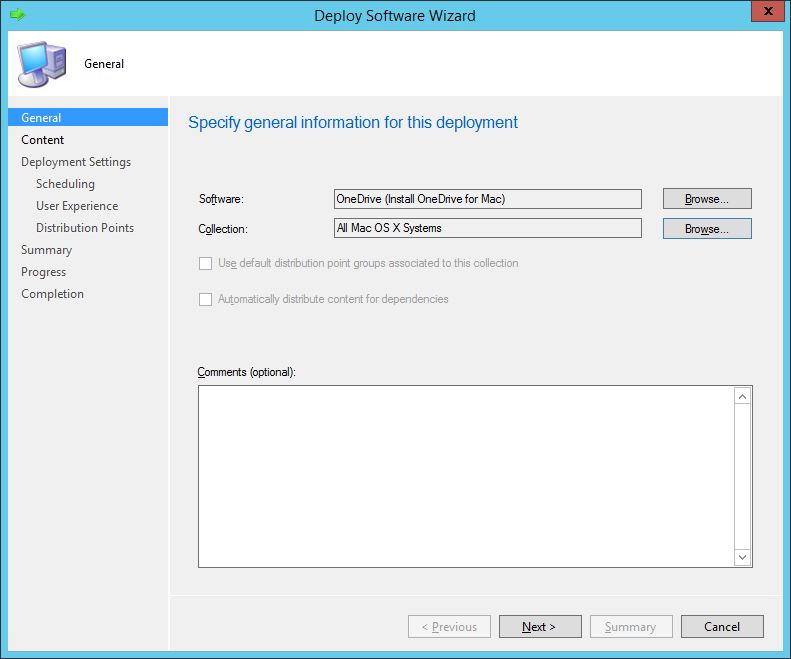

With the package and program created, distribute the content to the relevant DP and then deploy out to a Mac based collection. On this occasion I am pushing out to the All Mac OS X Systems.

2017-04-01 17_34_36-Deploy Software Wizard.jpg

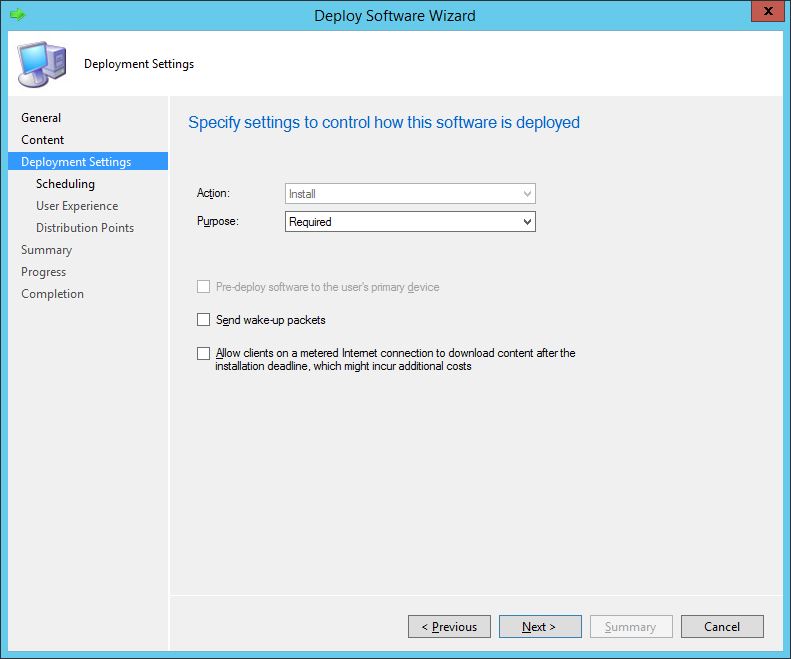

and I am installing the package as Required.

2017-04-01 17_35_13-Deploy Software Wizard.jpg

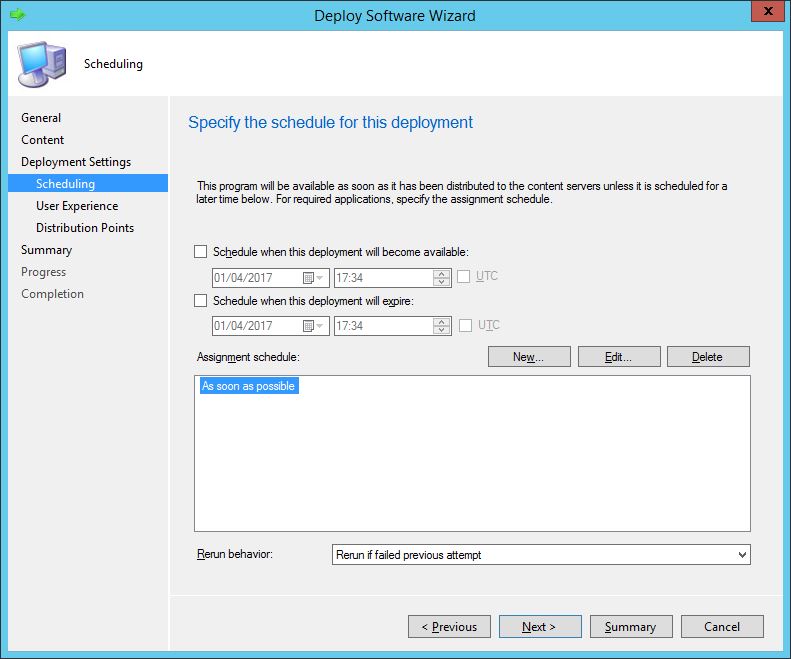

Schedule the deployment accordingly, I am making this available as soon as possible.

2017-04-01 17_35_20-Deploy Software Wizard.jpg

Package installation

Once policy has applied to the Mac OS X device, remember this can be forced by clicking Connect in the Parallels Mac client or you can wait the default of 60 minutes for updates to be checked automatically, the package will download into the cache and execute.

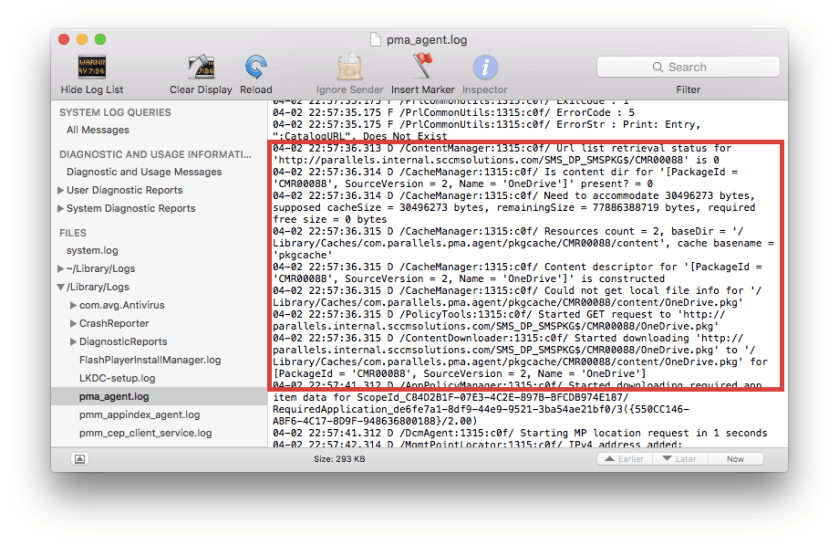

The pma_agent.log file located in /Library/Logs folder will show you all the details of the package downloading.

Screen Shot 2017-04-02 at 22.58.16.png

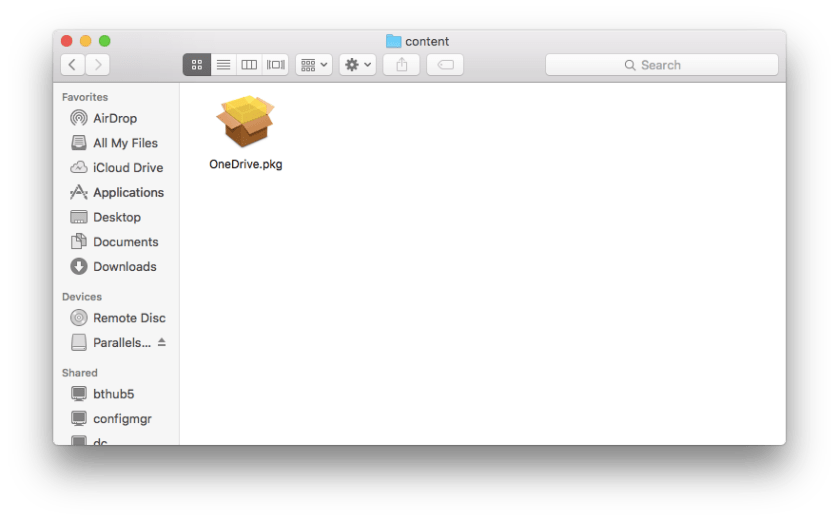

As you can see, the .pkg file is downloaded into the /Library/Caches/com.parallels.pma.agent/pkgcache folder. A sub folder relating to the ConfigMgr packageID is created, and in the content folder the .pkg will reside.

Screen Shot 2017-04-02 at 22.59.42.png

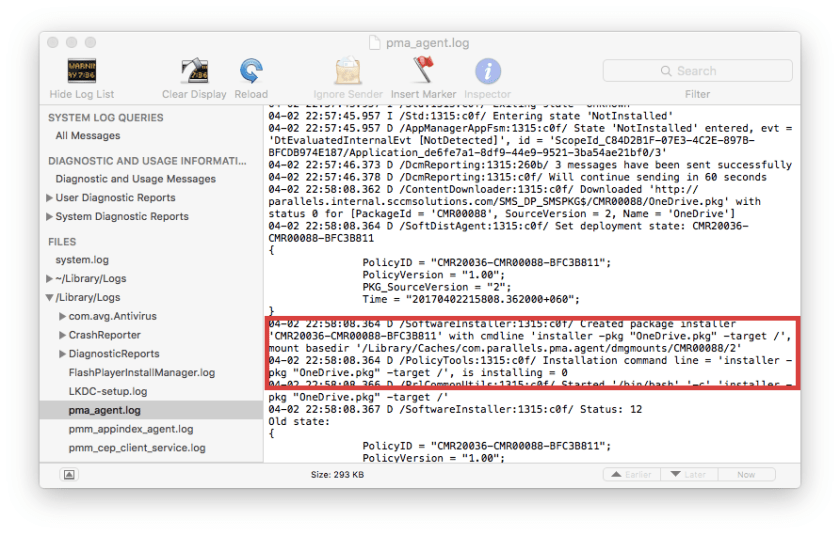

The command line specified in the ConfigMgr Package’s program will be executed.

Screen Shot 2017-04-02 at 23.01.00.png

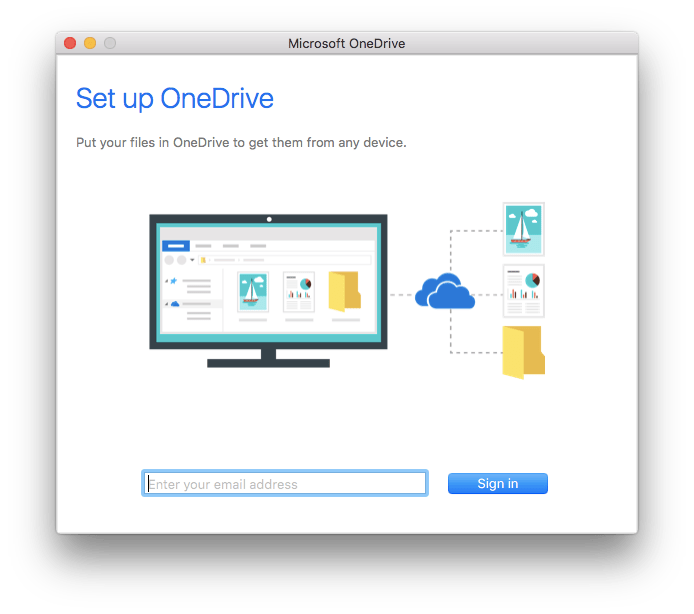

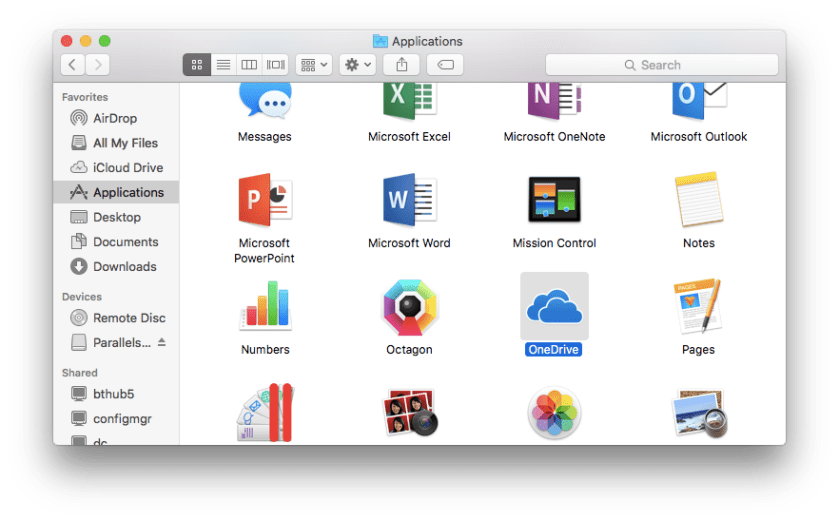

Once complete the package will appear in the Applications folder in Finder.

Screen Shot 2017-04-02 at 23.02.01.png

Screen Shot 2017-04-02 at 23.02.11.png

In part 7 of the series, I will take a look at how you can keep your Mac devices up-to-date using the OSX Software Updates Service.


  1. I’ve been trying to deploy a few .mpkg packages but they keep failing, any advice on how to deploy .mpkg?

  2. Jono, I assume that you can deploy PKG files? I have also not used a MPKG file but that wont stop me from giving a couple of random ideas 🙂

    1) If it is not that complex of a package, you could remake it as a PKG file using a tool like JAMF Composer. Composer watches you install something then makes a pkg out of it.

    2) Could you “wrap” the MPKG in a PKG file? I have used the technique described here with success — In this case he is using a package he created with Packages to serve as a wrapper to deploy a bunch of prebuilt packages (in a desired order) but I have also used it to install a package that was giving me trouble, or for when I have an update that I obviously want to install after the main installer. The key in doing this is you have a postinstall script that runs the package(s) you want to run.

    3) could you deploy it as an “application” vs a “package” (I hate microsoft’s SCCM terminology). I dont know about MPKG files but I have “wrapped” a troublemaking package in a DMG and it worked. If you have not used Applications you need to convert them into cmmac format.
